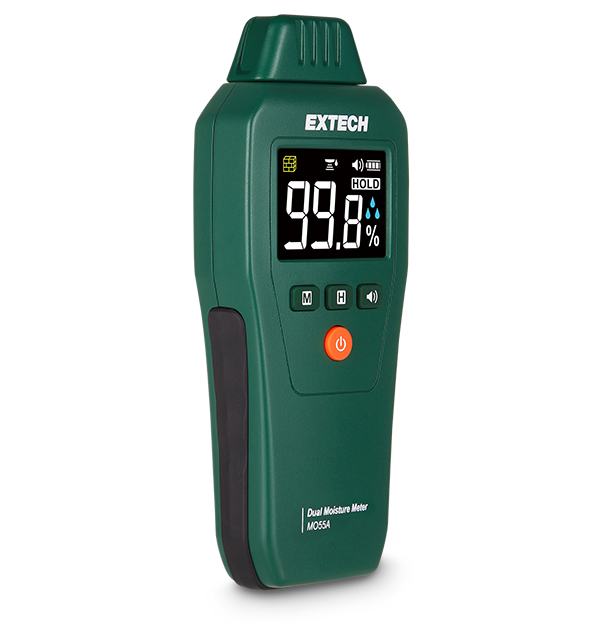

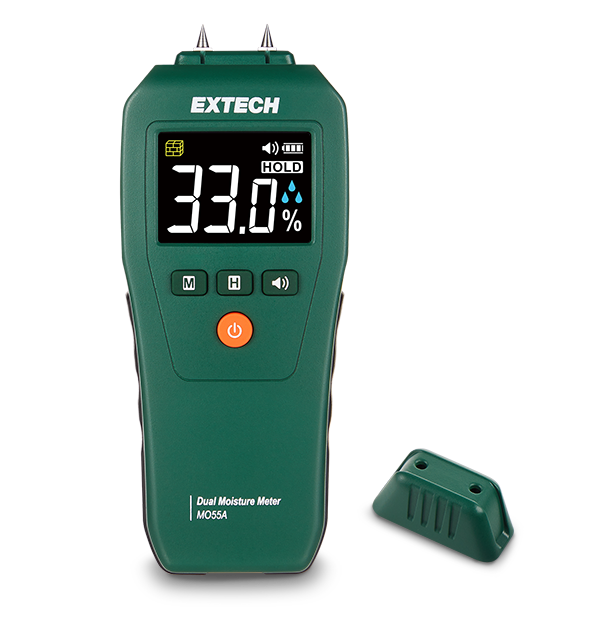

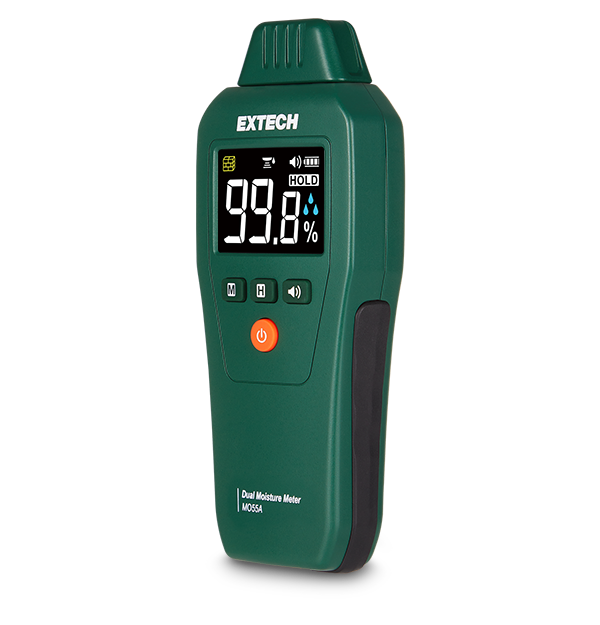

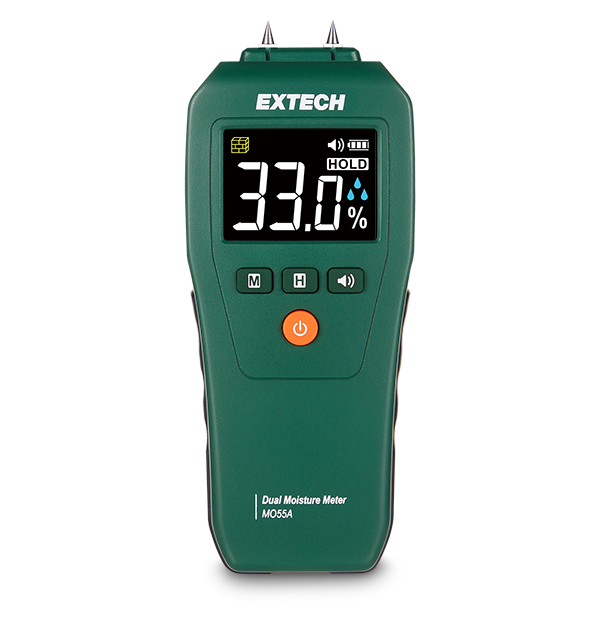

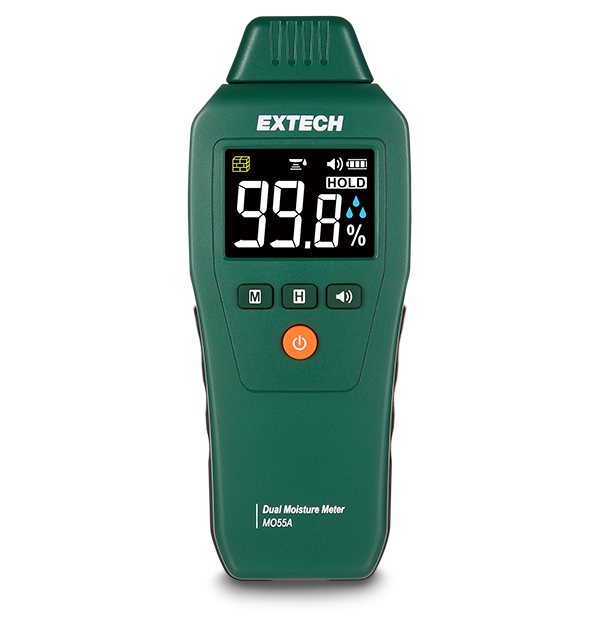

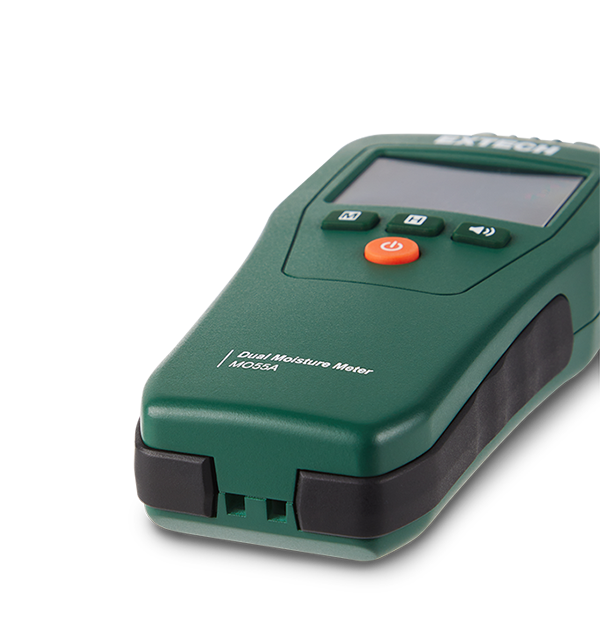

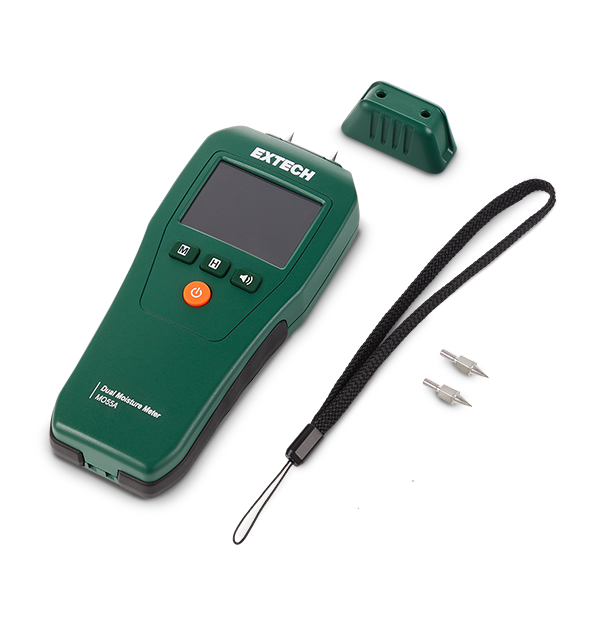

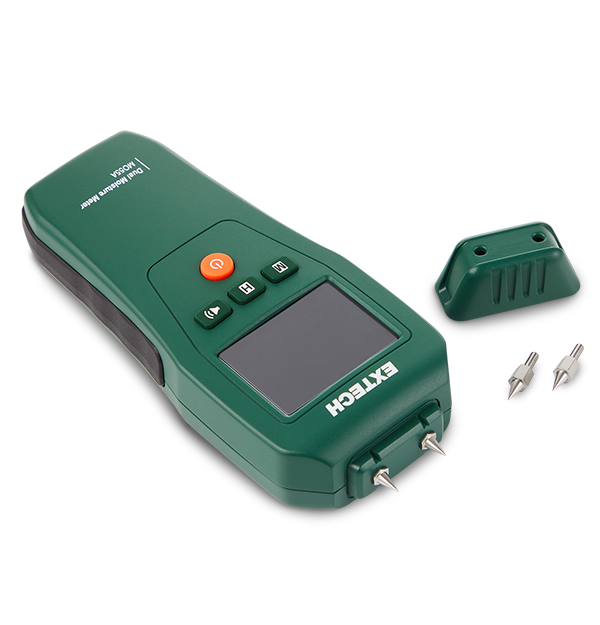

Extech MO55A
Combination Pin/Pinless Moisture Meter
- Building Diagnostics & Indoor Air Quality
- Asset Reliability
Take quick moisture measurements from a variety of building materials using either the pin or pinless (non-invasive) method with the Extech MO55A. This easy-to-use moisture meter features a high-contrast color LCD with backlight for clear visibility in any environment. It uses intuitive display icons to indicate moisture levels and provides an audible alert that speeds up as moisture increases. Ideal for building restoration projects and applications where detecting moisture on floors, tiles, and under carpets is critical, the MO55A is also essential for analyzing the after-effects of water leakage behind walls and in ceilings.
规格
| 一般参数 | |
|---|---|
| WME 水分含量基本精度（有探针） | ±(3% + 5 digits) at 22°C to 25°C (72°F to 77°F) |
| WME 水分含量最大分辨率（有探针） | 0.1% |
| WME 水分含量（有探针） | Wood Range: 5.0% to 50.0% Building Material Range: 1.5% to 33.0% |
| 传感器类型 | Replaceable threaded contact pins, 8 mm (0.3 in); non-penetrating electromagnetic sensor pad |
| 存储温度范围 | 0°C to 50°C (32°F to 122°F); < 85% RH |

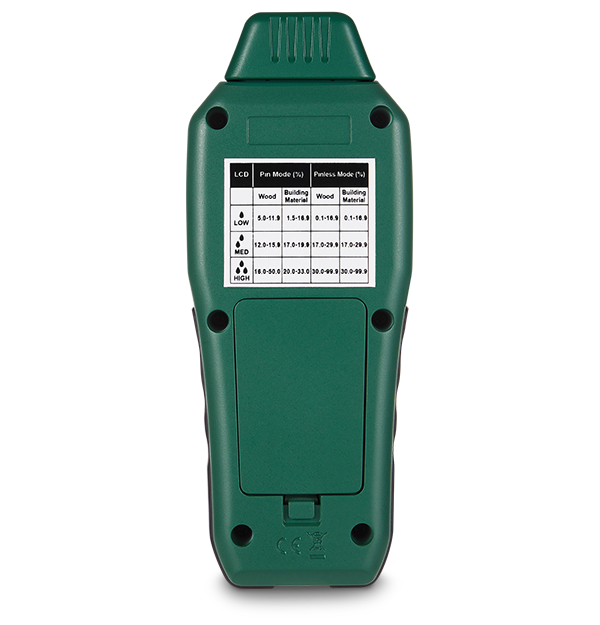

| 测温范围 | Wood: Low: 1.5% to 16.9% Medium: 12% to 15.9% High: 16% to 50% Building Material Low: 1.5% to 16.9% Medium: 17% to 19.9% High: 20% to 33% |
| 测量原理 | Electrical resistance (pins); Capacitance (pinless) |
| 测量深度 | Pinless < 25 mm (1 in) |
| 相对水分含量（无探针） | Wood: 0.0% to 99.9% Other building materials: 0.0% to 99.9% up to 25 mm (1 in) deep various with material under test |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 171.6 × 68 × 32.5 mm (6.7 × 2.7 × 1.3 in) |
| 工作条件 | 5°C to 45°C (41°F to 113°F); < 80% RH |
| 显示屏 | Backlit Color LCD |
| 电池类型 | 3 × 1.5 V, AAA batteries |
| 电源 | Auto Power Off after approx. 3 minutes |
| 认证 | CE, UKCA |
| 重量 | 151 g (0.33 lb) excluding batteries |
