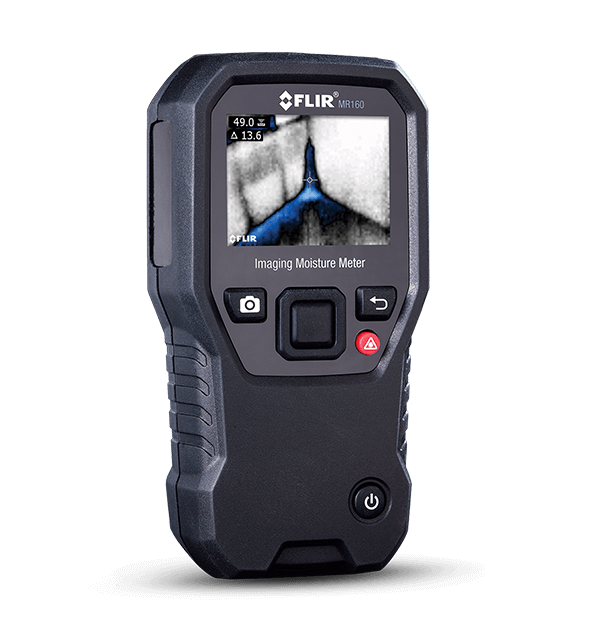

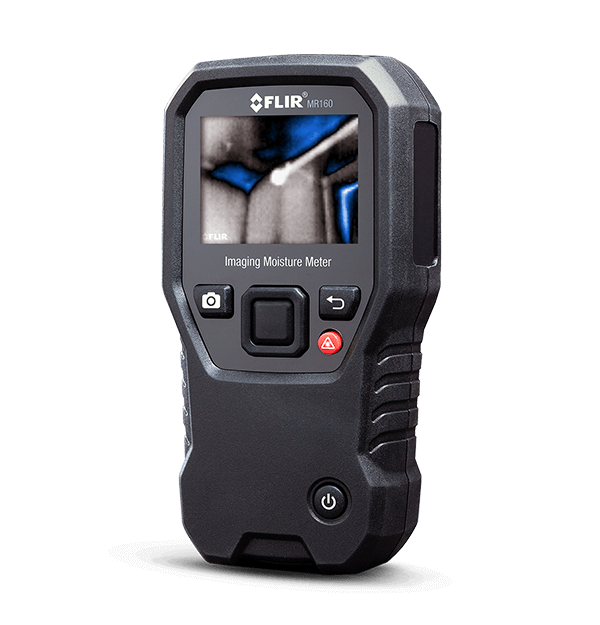

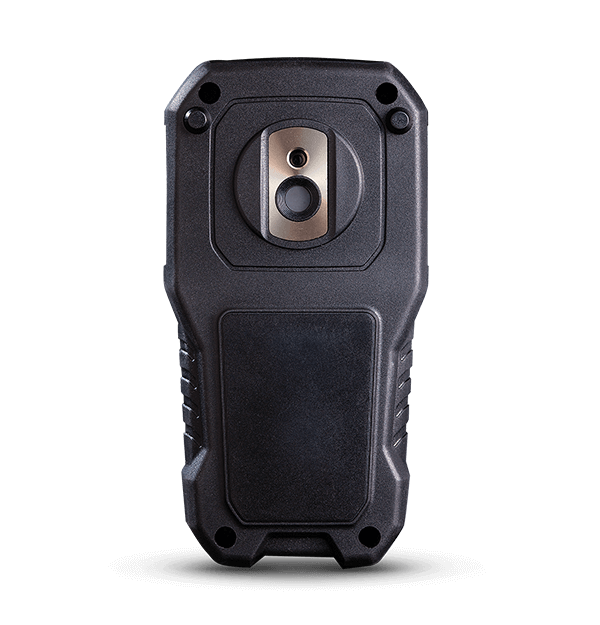

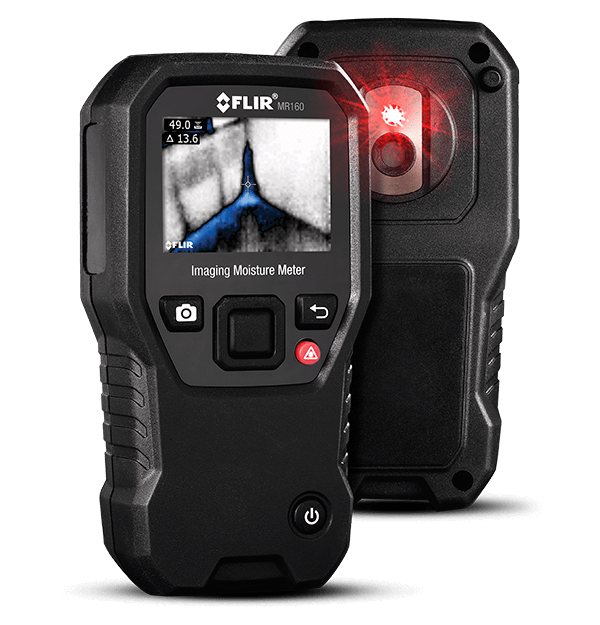

FLIR MR160采用红外成像引导测量（IGM）技术，有助于您快速定位湿度问题，明确指引测量位置，令您安心进行测量和分析读数。集成无探针式传感器及外置探针，使您能够灵活选择执行插入式测量还是非插入式测量。FLIR Mr160可作为您进行故障排查的“开箱即用”型工具，亦可用作您已拥有的任何高分辨率热像仪的有力补充工具。
确定检查位置是成功的一半
使用MR160的无探针技术或外部探针进行非破坏和接触式测量，可方便地检测绝缘和湿度问题。
利用内置热成像仪定位潮湿区域。使用探针和无探针水分测量功能，检测实际湿度水平。
坚固耐用，尺寸小巧，内置可充电电池，便于随身携带。
Specifications
| Highlighted | |
|---|---|
| Thermal Image Resolution | 4800 像素（80×60） |
| Pin Moisture Groups | 9个材料组 |
| 成像与光学 | |
|---|---|
| Field of View [W x H] | 51° × 38° |
| Image Display | 彩色水分警报 |
| Laser Orientation | 单激光点指向热图像中心位置 |
| Minimum Focus Distance | 10cm（4"） |
| Spectral Response | 8–14µm |
| Thermal Image Resolution | 4800 像素（80×60） |
| Thermal Imaging Detector | FLIR Lepton® 微测辐射热计 |
| 测量与分析 | |
|---|---|
| Image Calibration | 自动 |
| Image Frame Rate | 9 Hz |
| Measurement Resolution | 0.1 |
| Pin Moisture Groups | 9个材料组 |
| Pin Moisture via Ext Probe Range [Accuracy] | 0–100% WME (± 5%) |
| Pinless Measurement Depth | 19mm最大值 |
| Pinless Moisture Range | 0–100 相对测量 |
| Response Time Pin Mode | 750ms |
| Response Time Pinless | 100ms |
| Thermal Sensitivity | ＜0.15°C |
| 通讯与数据存储 | |
|---|---|
| Saved Image File format | BMP，测量值可叠加 |
| Stored Image Capacity | 9999张图像 |
| 电源 | |
|---|---|
| Battery | 3.7V、3000mAh锂离子电池，可通过micro USB接口充电 |
| Battery power_Cont Run Time | 最长18小时 |
| Battery power_Typical Usage | 4个工作周 |
| Power Requirements | 内置可充电电池 |
| 常规 | |
|---|---|
| Dimensions [H x W x L] | QVGA（320×240像素）2.3英寸64k彩色TFT |
| Packaging Size | 12.1 cm x 14 cm x 33.1 cm |
| 环境与认证 | |
|---|---|
| Agency Approvals | FCC Class B, CE, UL |
| Certification Standards | EN61326（EMC），EN61010（电池+充电器），EN60825-1 2类（激光） |
| Drop test | 9.8’ (3m) |
| Warranty | 2年整机保修，10年探测器保修** |
