Extech PQ34-12
1200A Current Clamp Probes

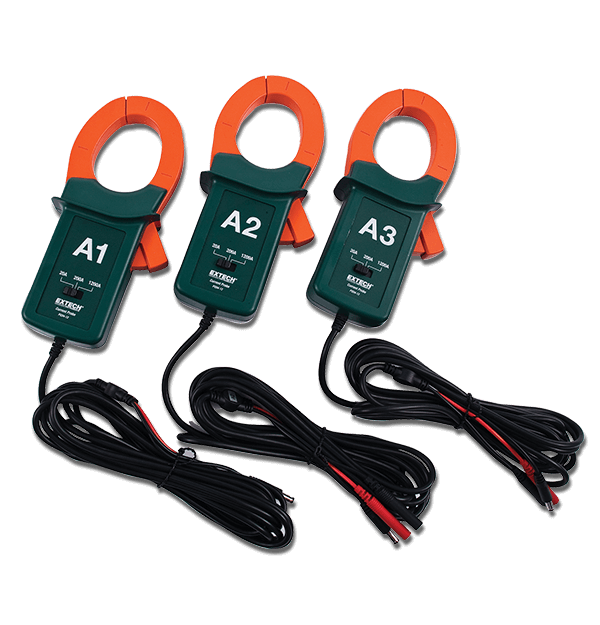

The Extech PQ34-12 is a set of 1200 Amp Current Clamp Probes. For use with the PQ3450 and PQ3470 analyzers. Featuring a 50 mm (2 in) jaw size, this product comes with three current clamp probes and a year warranty.
规格
| 一般参数 | |
|---|---|
| 交流电流 | 20A, 200A and 1200A, switch selectable |
| 交流电流基本精度 | ±1% full scale (50/60Hz) |
| 最小负载 | 100 KΩ for specified accuracy |
| 电缆长度 | 4 meters (13.17 feet) |
| 相位错误 | < ±1° (50/60Hz) |
| 输出灵敏度 | 10mV/A (20A range), 1mV/A (200A range), 0.1mV/A (1200A range) |
| 输出耦合 | AC coupled. |
| 钳口尺寸 | 50 mm (2.0 inch) |
| 频带宽度 | 45 to 400 Hz. |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 600V |
| 尺寸 | 8.3 × 2.5 × 1.3" (210 × 64 × 33 mm) |
| 电源 | 8V ±1V (supplied from meter) |
| 重量 | 490 g (1.08 LB) |
