Discontinued

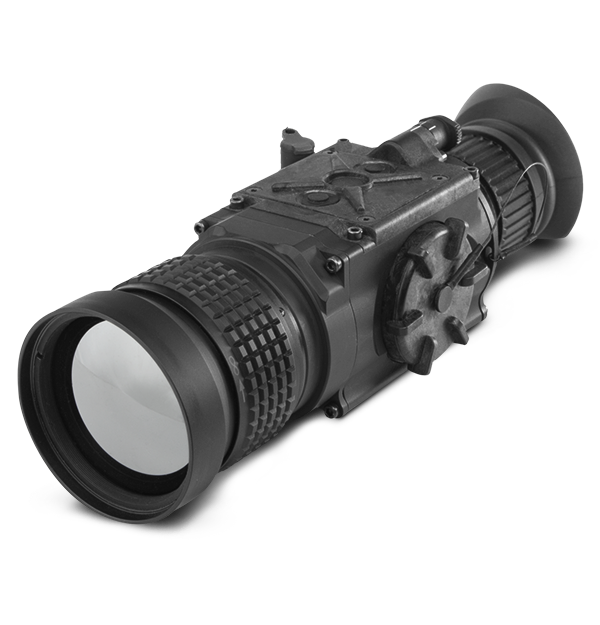

Prometheus
Thermal Imaging Monocular
The FLIR Prometheus combines a focusable 50 mm optical lens with the trusted performance of FLIR’s Tau™ 2 thermal imaging core. Designed for mid-range thermal surveillance and capable of refresh rates up to 60 Hz, the Prometheus offers dependable thermal imaging to maintain sightlines on moving objects of interest.
Thermal imaging provides unwavering vision in complete darkness and through glaring light, smoke, and haze.
Prometheus is equipped with a 50 mm manual focus lens to detect humans, animals, and objects from distance.
The feature-packed Prometheus offers a 4x digital zoom and multiple user-controlled color palettes.
规格
| Highlighted | |
|---|---|
| 光学放大率 | 3x |
| 视场角 | 7.8° x 5.9° |
| 显示屏分辨率 | 1280 x 960 |
| 传感器与光学 | |
|---|---|
| 光学放大率 | 3x |
| 分辨率 | 336 x 256 |
| 屈光度调节 | Yes |
| 屈光度调节范围 | -5 to +5 dpt |
| 探测器类型 | 17µm microbolometer |
| 视场角 | 7.8° x 5.9° |
| 调焦范围 | 5 m to infinity |
| 镜头系统 | 50 mm; F/1.0 |
| 环境与认证 | |
|---|---|
| 工作温度 | -40°C to +50°C (-40°F to +122°F) |
| 电源 | |
|---|---|
| 电池 | Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2) |
| 电池寿命 | Up to 4 hrs. at 20C° |
| 文件存储和通讯 | |
|---|---|
| 视频输出 | PAL (768×574 pixels)/ NTSC (640×480 pixels) |
| UI-UX | |
|---|---|
| 控制面板按钮 | Configures Operational Settings: •Display Brightness Control •Image Palette Control • Digital Zoom Control •On-Screen Menu Navigation |
| 显示屏 | Quad-VGA |
| 显示屏分辨率 | 1280 x 960 |
| 视频刷新率 | 30 Hz |
| 运行开关 | On/ Off/ Standby Mode |
| 系统概览 | |
|---|---|
| 数字变焦 | 2x, 4x |
| 调色板 | White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM |
| 重量[含镜头] | 0.55 kg (1.2 lbs.) |
