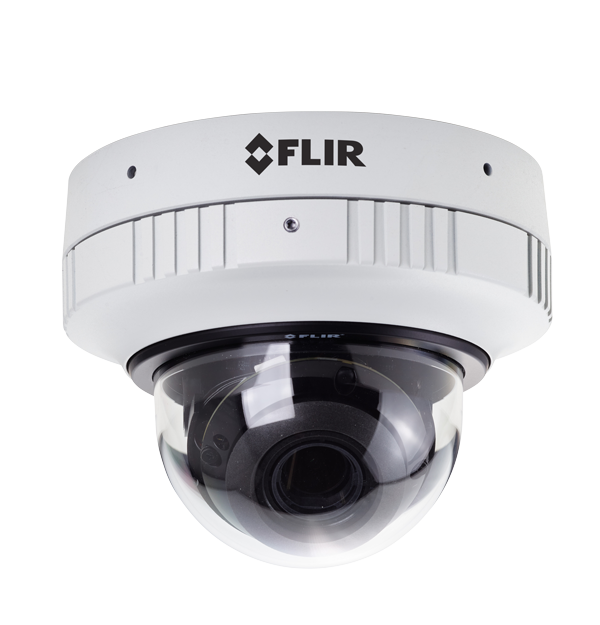

Quasar Premium Mini-Dome AI
500 万像素高清和 4K 超高清网络热像仪
FLIR Quasar Premium Mini-Dome AI 热像仪可在需要证据和取证视频这种极为苛刻的环境下提供先进的人工智能、视频分析和增强的态势感知能力。Premium Mini-Dome AI 是一种隐蔽式监控选择，它完全符合 NDAA，并利用了高端网络安全保障措施。针对低光/无光条件的先进功能，确保您在所有室内和室外情况下都能获得出色的视频质量。在与 FLIR 附件和安装生态系统相结合后，FLIR Quasar Premium Mini-Dome AI 热像仪还可与各种视频管理系统无缝集成，为您提供更具成本效益的端到端监控解决方案。
具有先进的视频分析功能，可帮助您可靠地检测，减少误报并对威胁快速做出响应。
通过提供更多镜头选择、先进的低光/无光功能和先进的多快门 WDR 功能提高态势感知能力。
这款热像仪提供 4 年保修，具有 IK10 和 IP66 等级，并且符合 NDAA，产品寿命长，可尽可能地减少纠正性维护，并优化总拥有成本。
规格
| 合规性与认证 | |
|---|---|
| International | CE marked, EN61000-6-3, EN 62368-1 & EN50130-4, CB 62368-1, LVD (CoC), RoHS, RCM, WEEE, ISTA-3A |
| MTBF [hrs] | Quad HD 5 MP: 457097.0 Ultra HD 4K Narrow, Ultra HD 4K Wide: CM-6408-11-IA: 467,938 CM-6408-21-IA: 410,170 |
| ONVIF Compliance | Profiles S, G, M & T |
| USA | FCC Part 15 (subpart B, class A) |
| 网络安全 | |
|---|---|
| Security | Password protection, IP address filtering, TLS/HTTPS, IEEE 802.1X network access control, Digest authentication, Password policy Protect from multiple failure login |
| 环境 | |
|---|---|
| Humidity | 90% (non-condensing) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) without heater IR LED 100% max 50°C, 25% max 55°C -55°C to 60°C (-67°F to 140°F) with heater Cold start -40°C to 60°C (-40°F to 140°F) with heater IR LED 100% max 50°C, 25% max 55°C |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| 常规 | |
|---|---|
| Angle of View | Quad HD 5 MP (CM-6405-11-IA): 102.1° × 70.2° Ultra HD 4K Wide (CM-6408-11-IA): 110° × 57.1° Ultra HD 4K Narrow (CM-6408-21-IA): 38.5° × 22° |
| Automatic Electronic Shutter [AES] | 1/1 to 1/32,000 |
| Compression | Enhanced H.265 Main Profle + Enhanced H.264 Main/High/Baseline Profle + MJPEG" |
| Day_Night Mode | Yes |
| Digital Slow Shutter [DSS] | 1/1 (1) - 1/60 (50) NTSC (PAL) |
| Dimensions | 161 mm × 128.6 mm (6.3 in × 5 in) |
| Enclosure | Indoor/Outdoor: IK10 rated vandal IP66 NEMA 4X |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | PoE IEEE802.3af, class 0 AC 24 V, DC 12 V |
| Power Connection | RJ45 & AC/DC |
| Power Consumption | POE: 12.95W AC 24V: 13.2W; 24.20 VA DC 12V: 13.31W |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Shutter WDR | 3 Shutter, 130 dB |
| Tamper Detection | Yes |
| Unit Weight | 1.3 kg (2.86 lb) |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| 测量与分析 | |
|---|---|
| Analytics Features | Person/Face/Vehicle; Intrusion-Region/ Tripwire; Object Counting, Loitering, Stopped Vehicle; Abandoned Object; Object Removal; Wrong Direction; Camera Sabotage; People Counting |
| Analytics Management | Web-based configuration and management, masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control |
| PTZ | |
|---|---|
| Pan_Tilt_Spin | 356° /±80° / ±98° |
| 系统集成 | |
|---|---|
| Bi_directional Audio | 1 Audio Line Input, G.711/G.726/AAC/LPCM support + 1 Audio Line Output |
| Distance | Up to 40 m (131 ft) Sunshield 28 m (91.8 ft) |
| Ethernet | 10/100/1000, IEEE 802.3, auto sensing 1 x RJ45 |
| Input | 1 dry alarm contact 1 5 V 10 kΩ pull up |
| Network Protocol | IPV4/6, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, SNMP, QoS, TLS, SMTP, FTP, DDNS, PPPoE, RTCP |
| Output | 1 Relay Contact max. DC 5 V 130MA |
| Peak Emission Wavelength [nm] | 850.0 |
| Remote Configuration | Via web browser or supported video management software |
| Supported Web Browser | Firefox, Chrome, Edge, Safari |
| 热像仪 | |
|---|---|
| Image Sensor | Quad HD 5 MP: 1/2.7-in CMOS Ultra HD 4K Narrow, Ultra HD 4K Wide: 1/1.8-in CMOS |
| Sensitivity | Quad HD 5 MP: 0.04 (color)/ 0.008 (BW, 0 Lux with IR illuminator ON, measured at 30 IRE Ultra HD 4K Narrow, Ultra HD 4K Wide: 0.04 (color)/ 0.008 (BW), 0.002 Lux with IR illuminator ON, measured at 30 IRE |
| 可见光相机 | |
|---|---|
| Backlight Compensation | On / Off |
| Bandwidth | Configurable between 64 Kbps and 20 Mbps |
| Image Sensor | Quad HD 5 MP: 1/2.7-in CMOS Ultra HD 4K Narrow, Ultra HD 4K Wide: 1/1.8-in CMOS |
| Lens Type | Quad HD 5 MP (CM-6405-11-IA): Motorized lens 2.7 mm to 12 mm, F1.6-F2.9 H-FOV: 102.14° (Wide); 31.53° (Tele) V-FOV: 70.28° (Wide); 22.71° (Tele) Ultra HD 4K Wide (CM-6408-11-IA): Zoom lens 4.3 mm to 10.8 mm, F1.38-F2.8 H-FOV: 110.76° (Wide); 40.43° (Tele) VFOV: 57.14° (Wide); 22.65° (Tele) Ultra HD 4K Narrow (CM-6408-21-IA): Zoom lens 11 mm to 28 mm, F1.47-1.69 H-FOV: 38.5° (Wide); 15.5° (Tele) V-FOV: 22.0° (Wide); 8.9° (Tele) |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 3D/2D/Color |
| Sensitivity | Quad HD 5 MP: 0.04 (color)/ 0.008 (BW, 0 Lux with IR illuminator ON, measured at 30 IRE Ultra HD 4K Narrow, Ultra HD 4K Wide: 0.04 (color)/ 0.008 (BW), 0.002 Lux with IR illuminator ON, measured at 30 IRE |
| Sensor Resolution | Quad HD 5 MP: 2688 × 1944 Ultra HD 4K Narrow, Ultra HD 4K Wide: 3864 × 2180 |
| Signal to Noise Ratio | ±55 dB |
| White Balance | Auto / ATW / Manual / One Push |
| 视频和录制 | |
|---|---|
| Maximum Performance | Quad HD 5 MP: H.264/H.265 30/25 fps @ 5M (NTSC/PAL) + 30/25 fps @ D1 or H.264/H.265
15/12 fps @ 5M + 1080p + D1 (NTSC/PAL) or H.264/H.265
60/50 fps @ 1080p + 30/25 fps @ 720p + D1 (NTSC/ PAL) Ultra HD 4K Narrow, Ultra HD 4K Wide: H.264/H.265 30/25 fps @ 4K (NTSC/PAL) + 30/25 fps @ D1 or H.264/H.265 15/12 fps @ 4K + 1080p + D1 (NTSC/PAL) or H.264/H.265 60/50 fps @ 1080p + 30/25 fps @ 720p + D1 (NTSC/PAL) |
| Rate Control | CBR, CVBR, LBR, MJPEG |
| Resolution Range | Quad HD 5 MP: Scalable from QCIF to 5 MP Ultra HD 4K Narrow, Ultra HD 4K Wide: Scalable from QCIF to 4K |
| SD Card Recording1 | microSD/microSDHC/microSDXC 8 GB to 1 TB (Class 10) |
| Video Motion Detection | Yes |
