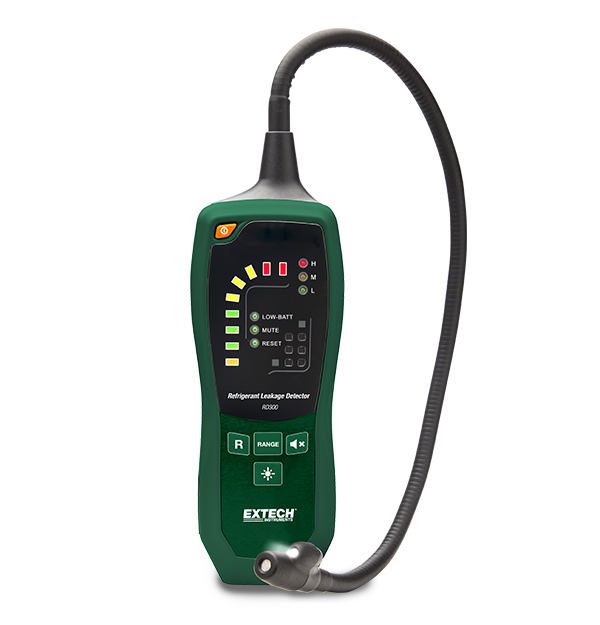

Extech RD300
Refrigerant Leak Detector
The Extech RD300 Refrigerant Leak Detector detects leakages from air-conditioning units and cooling systems. It is easy to use and ideal for detecting leaks from air-conditioning units and cooling systems that use all standard refrigerants. The multi-colored LED light bar indicates the level of leaking refrigerant detected by the RD300. The built-in, bright LED convenience light located at the sensor tip illuminates dimly lit inspection areas. Complete with leak test bottle, 9 V battery, and protective hard carrying case.
规格
| 一般参数 | |
|---|---|
| 传感器类型 | Heated Diode |
| 探针长度 | 450mm (18") |
| 气体检测 | R‐22, R‐134a, R‐404a, R‐410a, and all CFCs, HCFCs and HFCs |
| 气体检测灵敏度 | High: 0.25oz/yr (7g/yr); Medium: 0.5oz/yr (14g/yr); Low: 0.99oz/yr (28g/yr) |
| 预热时间 | 90 seconds |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 7.2 × 2.8 × 1.6" (184 × 70 × 40mm) |
| 电源 | 1 × 9V battery |
| 认证 | CE |
| 重量 | 10.0 oz (280g) |
资源和支持
Datasheet
Extech RD300 Datasheet
User Manual
Extech RD300 User Manual
Certification
Extech RD300 Declaration of Conformity
