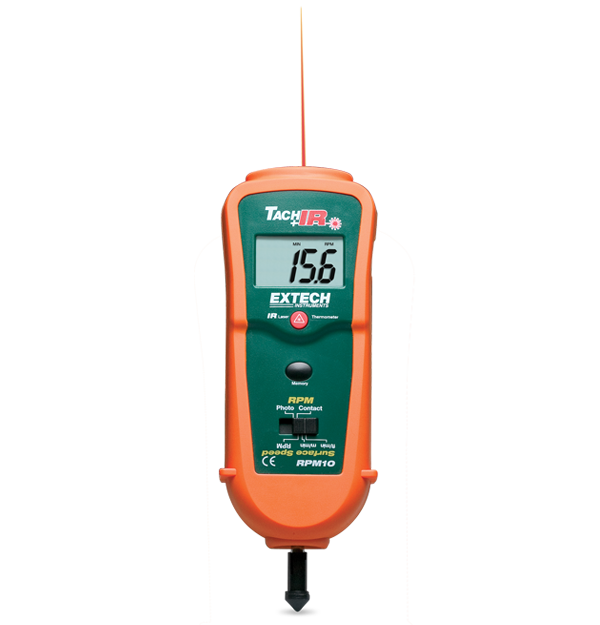

Extech RPM10
光电/接触式转速仪（内置红外测温仪）
RPM10 是一款组合式转速仪，可提供接触式和非接触式 RPM 测量，这使得该设备几乎适用于所有应用场景。RPM10 还采用内置的红外测温仪（带激光指示器）来测量 -20 至 315 摄氏度的表面温度，非常适合用于检查电机、轴承和机器的工作温度。配有用于测量表面线速度（0.05 至 1999.9 m/min）或转速的测速轮、4 节 AA 电池、0.6m 反光带、便携箱，并提供用户手册。
规格
| 一般参数 | |
|---|---|
| Rotation Speed [Contact] | 0.5 至 20,000rpm |
| Rotation Speed [Contact] Basic Accuracy | ±（读数的 0.05% + 1 位数） |
| Rotation Speed [Contact] Max Resolution | 0.1 rpm |
| Rotation Speed [Strobe] | 10 至 99,999rpm |
| Rotation Speed [Strobe] Basic Accuracy | ±（读数的 0.05% + 1 位数） |
| Rotation Speed [Strobe] Max Resolution | 0.1 rpm |
| Surface Speed [Contact] | 0.05 至 1999.9m/min |
| Surface Speed [Contact] Basic Accuracy | ±（读数的 0.05% + 1 位数） |
| Temperature [IR] Basic Accuracy | -20 至 315 °C |
| 其他详情 | |
|---|---|
| Certifications | RPM10-NIST_S：CE、NIST RPM10_S：CE |
| Dimensions | 216 × 66 × 38 mm |
| Power | 4 节 AA (1.5V) 电池 |
| Warranty | 2 年 |
| Weight | 300g |
