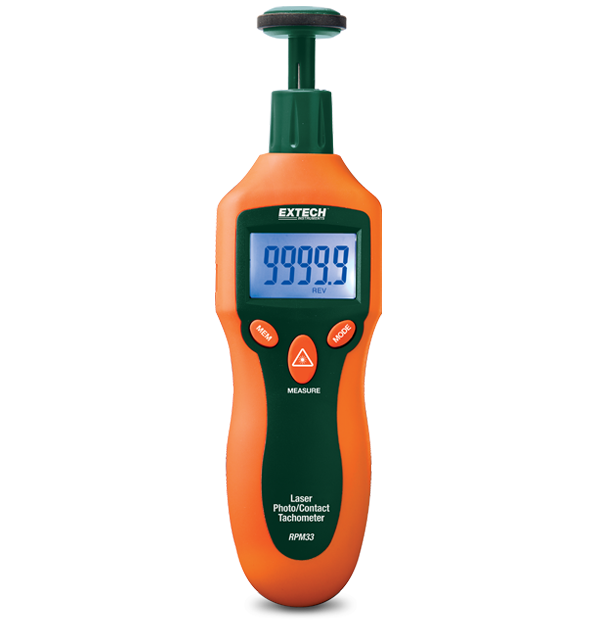

Extech RPM33
Combination Contact/Laser Photo Tachometer
The Extech RPM33 provides both contact (2 to 19,999 rpm) and non-contact (2 to 99,999 rpm) revolutions per minute measurements for enhanced versatility. Safely record laser-guided non-contact RPM measurements from up to 500 mm (1.6 feet) away. The RPM33 displays on the large five-digit backlit LCD. Store and recall 10 data sets in memory with four parameters (measurement, max, min and average). The unit comes with contact wheel for linear surface speed 0 to 1999.9 meters/minute; 0.2 to 6560 feet/minute) or RPM measurements, 9-volt battery, reflective tape, carrying case, and user manual.
规格
| 一般参数 | |
|---|---|
| 表面速度（接触） | 0 to 78,720 in/min, 0 to 6560 ft/min, 0 to 2186 yards/min, 0 to 2000 m/min |
| 表面速度（接触）基本精度 | 0.05% of reading +1 digit |
| 表面长度（接触） | 3.9 to 39370 in, 0.3 to 3280 ft, 0.1 to 1093 yards, 0.1 to 1000 m |
| 表面长度（接触）基本精度 | 0.05% of reading +1 digit |
| 转速（接触） | 2 to 20,000rpm |
| 转速（接触）基本精度 | 0.05% of reading +1 digit |
| 转速（接触）最大分辨率 | 0.1rpm (< 10,000 rpm); 1rpm (> 10,000 rpm) |
| 转速（闪光灯） | 2 to 99,999rpm |
| 转速（闪光灯）基本精度 | 0.05% of reading +1 digit |
| 转速（闪光灯）最大分辨率 | 0.1rpm (< 10,000 rpm); 1rpm (> 10,000 rpm) |
| 采样时间（照片） | 0.5 Sec > 120rpm |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 6.2 × 2.3 × 1.6" (160 × 60 × 42 mm) |
| 电源 | 1 × 9V battery |
| 认证 | RPM33-NIST_S: CE, NIST RPM33_S: CE |
| 重量 | 5.3oz (151g) |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
