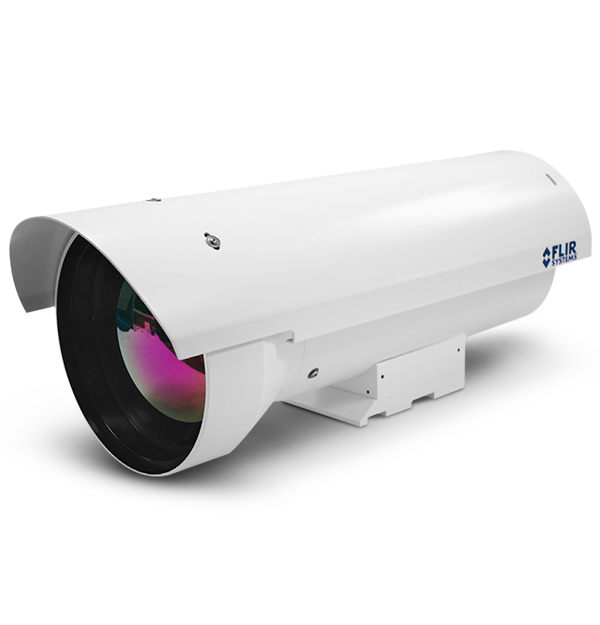

FLIR RS6700
Range & Scientific Infrared Camera
The RS6700 is a multi-application long range infrared camera system designed for range tracking, target signature, research, and science applications. RS6700 cameras are rugged, high performance, full-featured radiometric instruments that can survive the harshest of environments .
规格
| Highlighted | |
|---|---|
| 探测器分辨率 | |
| 分辨率 | 640 × 512 |
| 探测器像素间距 | 15 µm |
| 波长范围 | 3.0 – 5.0 µm |
| 探测器类型 | FLIR indium antimonide (InSb) |
| 热像仪光圈数 | f/4.0 |
| 动态范围 | 14-bit |
| 热灵敏度（NETD） | <25 mK typical |
| 帧频[全窗口] | Programmable 0.0015 Hz to 125 Hz |
| 最大帧频[最小窗口] | |
| 积分时间 | 480 ns to full frame |
| 调焦 | Automatic or Manual (Motorized) |
| 成像与光学 | |
|---|---|
| 传感器制冷 | Closed-cycle rotary |
| 像素时钟 | 50 MHz |
| 内置图像存储 | None |
| 分辨率 | 640 × 512 |
| 动态范围 | 14-bit |
| 叠加 | Customizable |
| 可操作性 | >99.8% (>99.95% typical) |
| 图像时戳 | Internal IRIG-B Decoder Clock / TSPI Accurate Time Stamp |
| 子窗口模式 | Flexible windowing (steps of 16 columns, 4 rows) |
| 帧频[全窗口] | Programmable 0.0015 Hz to 125 Hz |
| 探测器像素间距 | 15 µm |
| 探测器分辨率 | |
| 探测器类型 | FLIR indium antimonide (InSb) |
| 数字变焦 | 1x, 2x, 4x |
| 数字数据流 | Simultaneous Gigabit Ethernet and Camera Link |
| 标准视频 | NTSC or PAL composite |
| 波长范围 | 3.0 – 5.0 µm |
| 热像仪光圈数 | f/4.0 |
| 热灵敏度（NETD） | <25 mK typical |
| 积分时间 | 480 ns to full frame |
| 读出模式 | Asynchronous integrate while read, asynchronous integrate then read |
| 读出类型 | Snapshot |
| 调焦 | Automatic or Manual (Motorized) |
| 调色板 | Selectable 8-bit |
| 辐射数据流 | Gigabit Ethernet (GigE Vision), Camera Link Base Fiber |
| 近焦镜头/显微镜 | NA |
| 镜头 | 50 mm/250 mm |
| 测量与分析 | |
|---|---|
| 精度 | NA |
| 自动增益控制 | Manual, Linear, Plateau equalization, ROI, DDE |
| 通讯与数据存储 | |
|---|---|
| 同步模式 | Sync In, Sync Out |
| 命令与控件 | Gigabit Ethernet, (not Genicam compliant), USB, RS-232, Camera Link |
| 常规 | |
|---|---|
| 尺寸（长×宽×高） | 560 mm length × 230 mm diameter (22 in. length × 9 in. diameter) |
| 重量 | 11.6 kg (25.5 lbs) |
| 电源 | |
|---|---|
| 电源 | 24 VDC (<41 W steady state, 112 W with heaters on) |
| 环境与认证 | |
|---|---|
| 安装 | 5 × 1/4" – 20 |
| 工作温度范围 | -20°C to 50°C (-4 to 122°F) |
| 检测区 | 40 g, 11 msec 1/4 sine pulse / 4.3 g RMS random vibration, all 3 axes |
附件
资源和支持
Datasheet
FLIR RS6700 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
