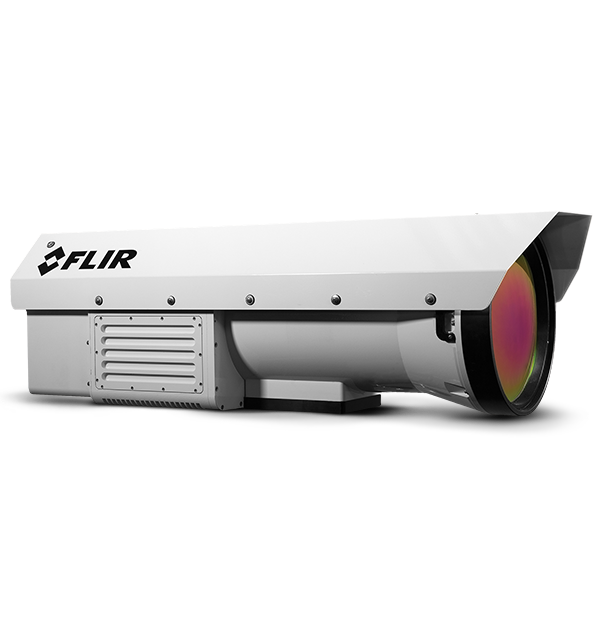

FLIR RS8300
High-Speed MWIR Megapixel Infrared Camera
The RS8300 is a multi-application long range infrared camera system designed for range tracking, target signature, research, and science applications. The RS8300 camera is a rugged, high performance, full-featured radiometric instrument that can survive harsh range environments
规格
| Highlighted | |
|---|---|
| 探测器分辨率 | |
| 分辨率 | 1,344 × 784 |
| 探测器像素间距 | 14 µm |
| 波长范围 | 3.0 – 5.0 µm |
| 探测器类型 | Indium Antimonide (InSb) |
| 热像仪光圈数 | f/5.0 |
| 动态范围 | 14-bit |
| 热灵敏度（NETD） | <25 mK |
| 帧频[全窗口] | 125 Hz |
| 积分时间 | 500 ns to Full Frame |
| 调焦 | Motorized with autofocus and active athermalization |
| 成像与光学 | |
|---|---|
| 传感器制冷 | Closed Cycle Linear |
| 分辨率 | 1,344 × 784 |
| 动态范围 | 14-bit |
| 势阱容量 | 5.9 M electrons |
| 可操作性 | >99.5% (99.9% typical) |
| 可选镜头 | 120-1200 mm (10x) Continuous Metric Zoom, 8.97° HFOV @ 120 mm, 0.9° HFOV @ 1200 mm |
| 子窗口模式 | User-Defined |
| 帧频[全窗口] | 125 Hz |
| 探测器像素间距 | 14 µm |
| 探测器分辨率 | |
| 探测器类型 | Indium Antimonide (InSb) |
| 数字变焦 | 1-4x , Digital Zoom, Panning |
| 数字数据协议 | Simultaneous Gigabit Ethernet and CoaXpress (Optional CameraLink Full over Fiber) |
| 模拟叠加 | Customizable (IRIG-B, Date, Integration Time, Internal Temp, Frame Rate, Sync Mode, Cooler Hours) |
| 模拟调色板 | Selectable 8-bit |
| 波长范围 | 3.0 – 5.0 µm |
| 热像仪光圈数 | f/5.0 |
| 热灵敏度（NETD） | <25 mK |
| 积分时间 | 500 ns to Full Frame |
| 读出 | Snapshot |
| 读出模式 | Asynchronous Integrate While Read; Asynchronous Integrate Then Read |
| 调焦 | Motorized with autofocus and active athermalization |
| 近焦镜头/显微镜 | NA |
| 高清视频 | (720p, 50/59/60 Hz, SMPTE 296 M) (1080p, 25/29/30 Hz, SMPTE 274 M) |
| 测量与分析 | |
|---|---|
| 精度 | NA |
| 自动增益控制 | Manual, Linear, Plateau Equalization, ROI, DDE |
| 通讯与数据存储 | |
|---|---|
| 同步模式 | Genlock; IRIG-B; Sync In, Sync Out, Trigger In |
| 模拟视频 | NA |
| 常规 | |
|---|---|
| 尺寸[长×宽×高]（遮阳罩打开） | ( 927 x 315 x 290 mm ) (36.5 x 12.4 x 11.4 in) |
| 重量 | 34.926 kg (77 lb) |
| 电源 | |
|---|---|
| 电源 | 24 VDC |
| 环境与认证 | |
|---|---|
| 存储温度范围 | -55°C to 80°C (-67°F to 176°F ) |
| 安装 | 9 × 1/4"-20 |
| 工作温度范围 | -40°C to 50°C (-40°F to 122°F ) |
| 检测区 | 40 g, 11 msec 1/2 sine pulse/4.3 g RMS random vibration, all 3 axes |
| 海拔 | 0 to 40,000 Feet Operational; 0 to 70,000 Feet Non-Operational |
资源和支持
Datasheet
FLIR RS8300 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
