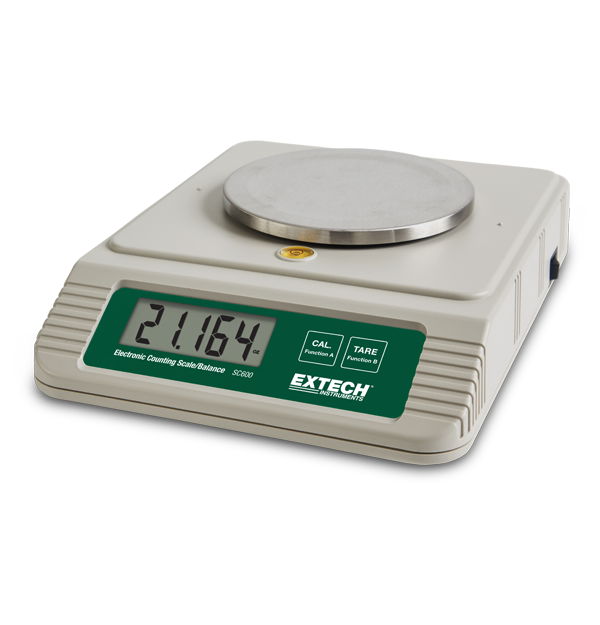

Extech SC600
Electronic Counting Scale/Balance
The Extech SC600 is an Electronic Counting Scale/Balance intended for professional electronic counting and weighing with a load cell transducer for high accuracy and performance. The wide capacity measures single small electronic components weighing up to 0.1g (0.005 oz), or in batches up to 600 g (21.164 oz). Complete with 6 AA batteries, metal platform, and Universal AC adaptor with multiplugs.
规格
| 一般参数 | |
|---|---|
| PC接口 | RS232 port |
| 传感器类型 | Load cell |
| 皮重控制 | 600g maximum (approx.) |
| 采样率 | Approx. 1 measurement per second |
| 重量范围 | 0.10 to 600g |
| 重量范围基本精度 | ±(0.05% + 0.04g) |
| 重量范围最大分辨率 | 0.01g |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 9.8 × 7.5 × 2.8" (250 × 190 × 70mm), Platform diameter: 4.7" (120mm) |
| 显示屏 | 5-digit segment LCD |
| 电源 | 6 × AA (1.5V) batteries, AC/DC power adaptor (9V/300mA) with multi-plugs |
| 认证 | CE |
| 重量 | 2.2 lbs (1 kg) |
资源和支持
User Manual
Extech SC600 User Manual
Certification
Extech SC600 Declaration of Conformity
Datasheet
Extech SC600 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
