Discontinued

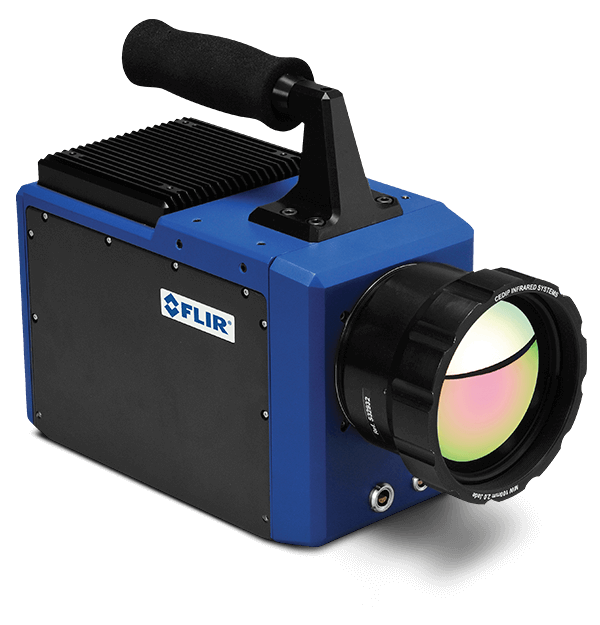

FLIR SC7650

Science-Grade MWIR InSb Infrared Camera

The FLIR SC7650 is specifically designed for academic and industrial R&D applications as well as integrators who need a flexible camera at an affordable cost. The midwave camera features 640 x 512 pixel resolution and an Indium Antimonide (InSb) detector, providing high sensitivity, accuracy, spatial resolution, and speed. It comes with a removable, motorized 4-position filter wheel, allowing imaging of events in a select part of the electromagnetic spectrum.

State-of-the-art infrared technology for R&D / Science
Works seamlessly together with FLIR ResearchIR Max software enabling intuitive viewing, recording, and advanced processing of thermal data.
Delivers thermal images at a much higher frame rate — up to a speed of 3.425 kHz
Integration time is adjustable to nanoseconds, and the external triggering feature allows synchronization of the image capture to fleeting events.

规格

Highlighted
像素分辨率 640x512
像素间距 15µm
波长范围 1.5 - 5.1 µm
探测器类型 Indium Antimonide (InSb)
热灵敏度（NETD） <20mK / <25mK
成像与光学
传感器制冷 Internal Sterling
像素分辨率 640x512
像素间距 15µm
势阱容量 6.5 M electrons
可操作性 >99.8% ( >99.95% typical)
探测器类型 Indium Antimonide (InSb)
波长范围 1.5 - 5.1 µm
热灵敏度（NETD） <20mK / <25mK
读出 Snapshot (4 Channel)
读出模式 Asynchronous Integrate While Read; Asynchronous Integrate Then Read

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
