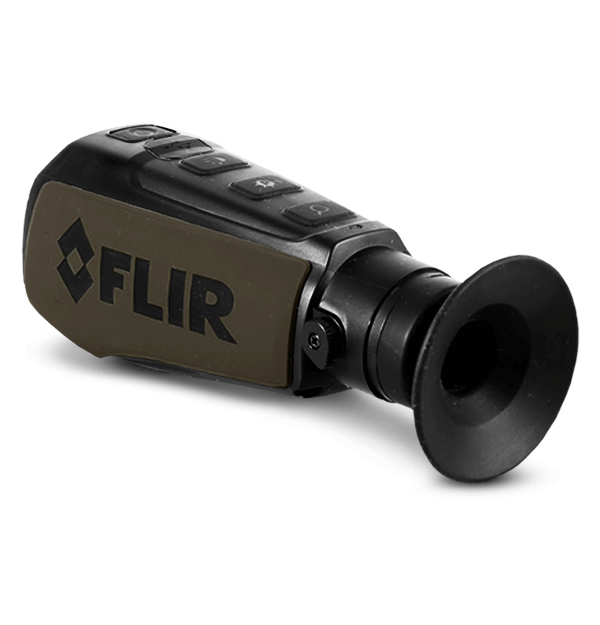

Scout III
Thermal Imaging Monocular
Scout III captures sharp thermal imaging at a fast framerate for smooth, impeccable vision on running targets and from moving vehicles. Designed to increase situational awareness at any time of day, Scout III can detect humans, animals, and objects in complete darkness, haze, or through glaring light. A rugged IP-67 rated housing stands up to harsh weather and drops, equipping law enforcement professionals, hunters, and outdoor enthusiasts with reliable thermal imaging in tough conditions.
规格
| Highlighted | |
|---|---|
| 热灵敏度 | <50 mK @ f/1.0 |
| 传感器与光学 | |
|---|---|
| 图像处理 | FLIR Proprietary Digital Detail Enhancement ™ |
| 探测器类型 | 336 × 256 VOx Microbolometer |
| 热灵敏度 | <50 mK @ f/1.0 |
| 焦距 | 19mm Fixed Focus |
| 视场角（FOV） | 17° × 13° NTSC |
| 环境与认证 | |
|---|---|
| 坠落测试等级 | 1 m |
| 存储温度 | -40 ° F to 140 ° F (-40 ° C to 60 ° C) |
| 工作温度 | -4 ° F to 122 ° F (-20 ° C to 50 ° C) |
| 防护等级 | IP-67, Submersible |
| 电源 | |
|---|---|
| 启动时间 | < 1.5 seconds |
| 电池寿命 | > 5 Hours |
| 电池类型 | Internal Li-Ion Cell |
| 文件存储和通讯 | |
|---|---|
| 视频输出 | NTSC composite video (Switchable to PAL w/GUI) - 320 Model only |
| UI-UX | |
|---|---|
| 亮度 | Adjusts display Brightness Setting |
| 变焦按钮 | 2× Zoom |
| 图像极性 | White Hot/Black Hot/InstAlert ™ ; Selectable |
| 屏幕显示 | Standard |
| 工作灯 | LED Enabled during Power off state |
| 开机画面 | Generic |
| 极性 | White Hot/Black Hot/InstAlert ™ ; Selectable |
| 电源按钮 | On / Off |
| 自带显示屏 | 640 × 480 LCD Display |
| 视频刷新率 | 60 Hz NTSC |
| 黑热与白热 | BH/WH/InstAlert™ |
| 系统概览 | |
|---|---|
| 保修 | 2 years standard, 3 years with product registration |
| 包装包括 | Handheld Thermal Camera, USB Power Adapter/Charger, Wrist strap, Custom Video out cable (320 & 640 versions), USB Cable, Quick Start Guide, Molle bag |
| 尺寸（长×宽×高） | 6.70" × 2.31" × 2.44" |
| 波段 | 7.5 - 13.5 µm |
| 重量[含镜头] | 12 oz (340 g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Scout II - III - LS-X - LS-XR and Ocean End User Tool
User Manual
Scout III User Manual
Quick Start Guide
Scout III Quick Start Guide
Datasheet
Scout III Datasheet
Tech Note
Your Perfect Palette
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
