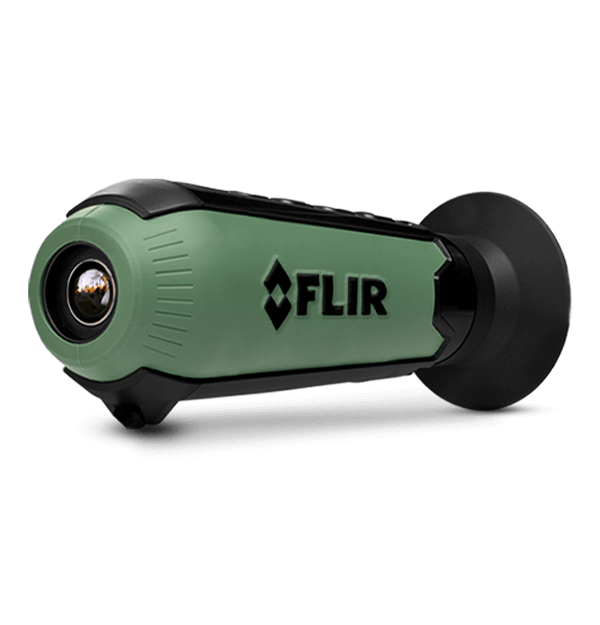

FLIR Scout TK
Pocket-Sized Thermal Vision Monocular
The FLIR Scout TK is a pocket-sized thermal vision monocular for exploring the outdoors at night and in lowlight conditions. Scout TK reveals your surroundings and helps you see people, objects and animals over 100 yards (90 m) away. Simple to use, with still image and video recording, Scout TK is the perfect companion, whether in the back country or your own backyard.
规格
| 传感器与光学 | |
|---|---|
| 图像处理 | FLIR Proprietary Digital Detail Enhancement™ |
| 探测器类型 | 160 × 120 VOx Microbolometer |
| 视场角（FOV） | 20° × 16° |
| 环境与认证 | |
|---|---|
| 坠落测试等级 | 2 m |
| 存储温度 | -40°F to 140°F (-40°C to 60°C) |
| 工作温度 | -4°F to 104°F (-20°C to 40°C) |
| 防护等级 | IP-67, Submersible |
| 电源 | |
|---|---|
| 启动时间 | < 5 seconds |
| 电池寿命（工作） | >5 Hours |
| 电池类型 | Internal Li-Ion Cell |
| 文件存储和通讯 | |
|---|---|
| 图像下载 | USB |
| UI-UX | |
|---|---|
| 亮度按钮 | Brightness (toggle up<>down) |
| 图像拍摄 | Short press for Image capture, long press for Video capture |
| 屏幕显示 | Standard |
| 开机画面 | Generic |
| 电源按钮 | On / Off |
| 自带显示屏 | 640 × 480 LCD Display |
| 视频刷新率 | <9Hz |
| 调色板按钮 | Short press to toggle thru LUT's |
| 系统概览 | |
|---|---|
| 保修 | 2 years standard, 3 years with product registration |
| 包装包括 | Handheld Thermal Camera,Neck Lanyard, USB Cable, Lens Cap |
| 尺寸（长×宽×高） | 6.0" × 2" × 2" |
| 快门 | Yes |
| 波段 | 7.5 - 13.5 µm |
| 调色板 | Black Hot / White Hot / InstAlert™ / Rainbow / Iron / Lava / Arctic / Graded Fire |
| 重量[含镜头] | 6 oz (170 g) |
Resources & Support
User Manual
FLIR Scout TK User Manual
Quick Start Guide
FLIR Scout TK Quick Start Guide
Tech Note
Your Perfect Palette
Warranty
FLIR Outdoor And Tactical Systems Limited 2-3-10 Warranty
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
