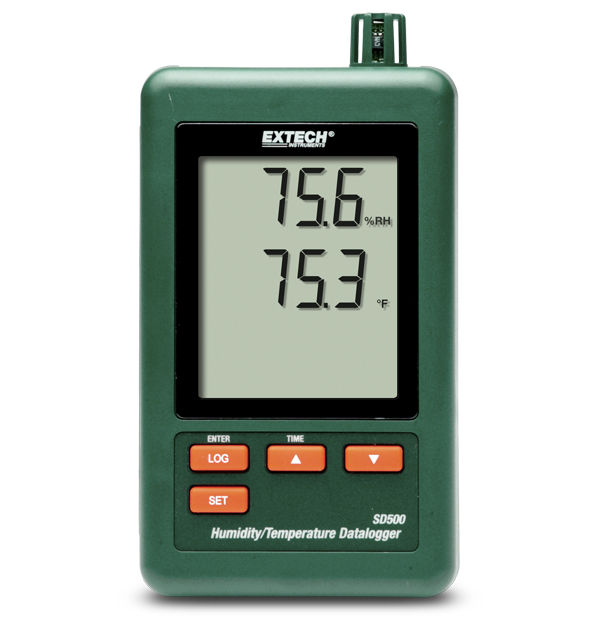

Extech SD500
湿度/温度数据记录仪
该湿度/温度数据记录仪可以 Excel 格式将数据记录在 SD 卡上，方便传输到 PC 上进行分析。它采用双液晶显示屏，可同时显示相对湿度和温度，并可以选择 5、10、30、60、120、300 和 600 秒的数据采样率。每个存储的读数均包含日期和时间戳。可测量 10 至 95% 相对湿度和 0 至 50°C 范围的温度。配有 6 节 AAA 电池、SD 存储卡、通用交流适配器和安装支架。
规格
| 一般参数 | |
|---|---|
| Datalogging Interval | 5、10、30、60、120、300、600 秒或者自动 |
| Memory | 用 2G 的 SD 卡可存储 2000 万条数据 |
| Relative Humidity | 10 至 90% |
| Relative Humidity Basic Accuracy | ±4% |
| Relative Humidity Max Resolution | 0.1% |
| Temperature [Air] | 0 至 50°C |
| Temperature [Air] Basic Accuracy | ±0.8°C |
| Temperature [Air] Max Resolution | 0.1°C |
| 其他详情 | |
|---|---|
| Certifications | SD500-NIST_S：CE、NIST SD500_S：CE |
| Dimensions | 132 × 80 × 32mm |
| Power | 6 节 AAA (1.5V) 电池 |
| Warranty | 2 年 |
| Weight | 282g |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech 407001-PRO Meter to Datalogger Conversion Software and USB Cable
User Manual
Extech SD500 User Manual GB
Datasheet
Extech SD500 Datasheet
User Manual
Extech SD500 User Manual
Certification
Extech SD500 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
