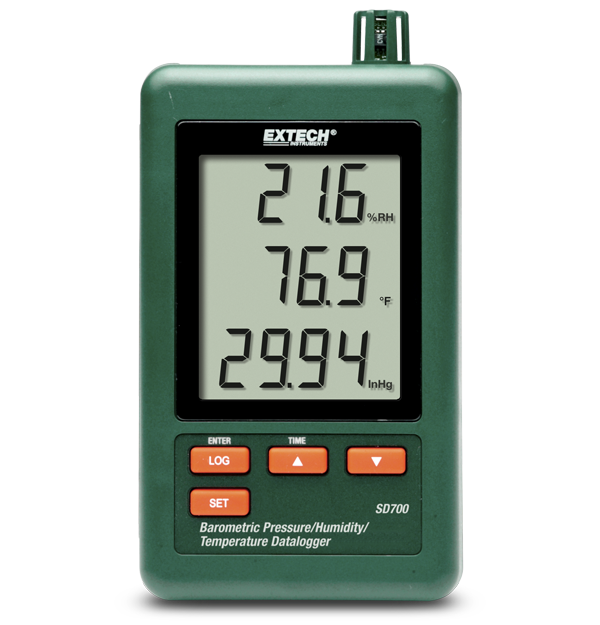

Extech SD700
气压/湿度/温度数据记录仪
SD700 可以 Excel 格式将数据记录到 SD 卡上。可以三种测量单位显示气压：hPa、mmHg 和 inHg。配有三重液晶显示屏，可同步显示气压、温度和相对湿度。具有数据记录仪日期/时间戳，能够以 Excel 格式将数据保存在 SD 卡上，方便传输到 PC。可选择的数据采样率为 5、10、30、60、120、300、600 秒。配有 (6) 节 AAA 电池、SD 存储卡、通用交流适配器和安装支架。
规格
| 一般参数 | |
|---|---|
| Memory | 使用 2G SD 卡可记录 2000 万条数据 |
| Pressure [hPa] | 10 至 1100 hPa |
| Pressure [hPa] Max Resolution | 0.1 hPa |
| Pressure [inHg] | 0.29 至 3248 inHg |
| Pressure [inHg] Max Resolution | 0.01inHg |
| Pressure [mmHg] | 7.5 至 825.0 mmHg |
| Pressure [mmHg] Max Resolution | 0.1mmHg |
| Relative Humidity | 10 至 90% |
| Relative Humidity Basic Accuracy | ±（读数的 4% + 1%） |
| Relative Humidity Max Resolution | 0.10% |
| Temperature [Air] | 0 至 50 °C |
| Temperature [Air] Basic Accuracy | ±0.8 °C |
| Temperature [Air] Max Resolution | 0.1 °F(°C) |
| 其他详情 | |
|---|---|
| Certifications | CE |
| Dimensions | 132 × 80 × 32mm |
| Power | 6 节 AAA (1.5V) 电池 |
| Warranty | 2 年 |
| Weight | 285g |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech 407001-PRO Meter to Datalogger Conversion Software and USB Cable
User Manual
Extech SD700 User Manual GB
Datasheet
Extech SD700 Datasheet
User Manual
Extech SD700 User Manual
Certification
Extech SD700 Declaration of Conformity
