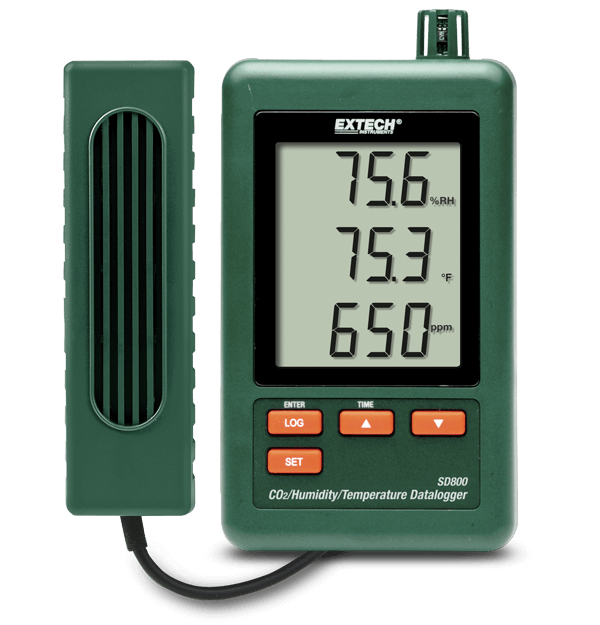

Extech SD800
二氧化碳、湿度和温度数据记录仪
SD800 可用于监测学校、办公楼、温室、医院以及任何可产生高浓度二氧化碳的场所的空气质量。可选择的数据采样率为 5、10、30、60、120、300、600 秒或自动。配有免维护的双波长NDIR（非色散红外）CO2 传感器。配有三重液晶显示屏，可同步显示 CO2、温度和相对湿度。配有六节 AAA 电池、2G SD 存储卡、通用交流适配器和安装支架。
规格
| 一般参数 | |
|---|---|
| Carbon Dioxide [CO2] | 0 至 4,000ppm |
| Carbon Dioxide [CO2] Basic Accuracy | ±40ppm (<1000ppm)；读数的±5% (>1000ppm) |
| Carbon Dioxide [CO2] Max Resolution | 1ppm |
| Memory | 使用 2G SD 存储卡，可记录 2000 万条数据 |
| Relative Humidity | 10% 至 90% |
| Relative Humidity Basic Accuracy | ±4% |
| Relative Humidity Max Resolution | 0.10% |
| Temperature [Air] | 0 至 50°C |
| Temperature [Air] Basic Accuracy | 0.8°C |
| Temperature [Air] Max Resolution | 0.1°C |
| 其他详情 | |
|---|---|
| Certifications | CE |
| Dimensions | 132 × 80 × 32mm |
| Power | 6 节 AAA (1.5V) 电池 |
| Warranty | 2 年 |
| Weight | 282g |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech 407001-PRO Meter to Datalogger Conversion Software and USB Cable
Certification
Extech SD800 Declaration of Conformity
Datasheet
Extech SD800 Datasheet
User Manual
Extech SD800 User Manual
User Manual
Extech SD800 User Manual GB
