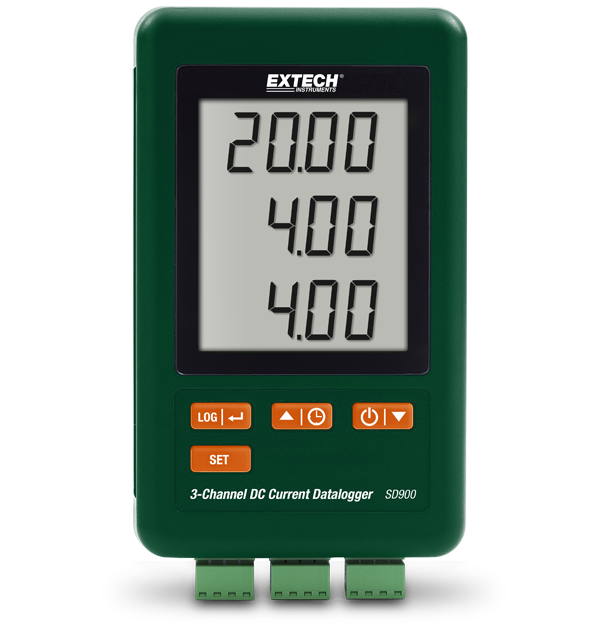

Extech SD900
3-Channel DC Current Datalogger
Extech's SD900 allows technicians to easily monitor and record DC mA values from 3 external sensors, transducers, and other sources using one meter. It also stores the time and date of when readings are taken. The logger features a large triple LCD display and records data on an SD card in an Excel®-ready format for easy transfer to a PC for analysis, trending, and archiving. Complete with six AAA batteries, SD memory card, Univeral AC Adaptor with multi-plugs (US, EU, UK, AUS), 3 input connect sockets, and mounting bracket.
规格
| 一般参数 | |
|---|---|
| 内存 | Approx. 2.7M readings using 4GB SD memory card |
| 直流微电流 | 0 to 20mA |
| 直流微电流基本精度 | ±(0.5% of reading + 0.02mA) |
| 直流微电流最大分辨率 | 0.01mA |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 5.2 × 3.1 × 1.3" (132 × 80 × 32mm) |
| 电源 | 6 × AAA (1.5V) batteries |
| 认证 | CE |
| 重量 | 7oz (199g) |
资源和支持
Datasheet
Extech SD900 Datasheet
User Manual
Extech SD900 User Manual
