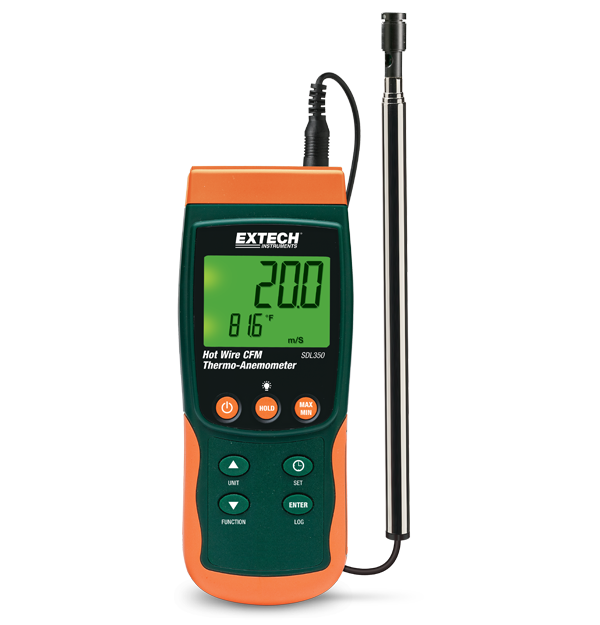

Extech SDL350
火线 CFM 热线风速仪/数据记录仪
SDL350 以 Excel 格式在 SD 卡上记录数据。带伸缩式探针的风速/风量计，可放入 HVAC 管道和其它较小开口。伸缩式探针配有线缆，最多可延长至 215cm。可以调节数据采样速率。可手动存储 99 个读数，用 2G 的 SD 卡可存储 2000 万个读数。具有 K/J 型热电偶输入，供高温测量用。配有大尺寸（9999 次计数）液晶显示屏，可同时显示风速或风量和温度。可记录/调用最小值、最大值，带数据保持和自动关机功能。配有 6 节 AA 电池、SD 卡、带电缆的伸缩式探头和硬质便携箱。
规格
| 一般参数 | |
|---|---|
| Air Velocity [ft_min] | 40 至 3940ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±读数的 5% |
| Air Velocity [ft_min] Max Resolution | 1ft/min |
| Air Velocity [km_h] | 0.7 至 72 km/h |
| Air Velocity [km_h] Basic Accuracy | ±读数的 5% |
| Air Velocity [km_h] Max Resolution | 0.01km/h |
| Air Velocity [knots] | 1 至 31 节 |
| Air Velocity [knots] Basic Accuracy | ±读数的 5% |
| Air Velocity [knots] Max Resolution | 0.01 节 |
| Air Velocity [mph] | 0.5 至 45MPH |
| Air Velocity [mph] Basic Accuracy | ±读数的 5% |
| Air Velocity [mph] Max Resolution | 0.01MPH |
| Air Velocity [m_s] | 0.2 至 25m/s |
| Air Velocity [m_s] Basic Accuracy | ±读数的 5% |
| Air Velocity [m_s] Max Resolution | 0.01m/s |
| Air Volume [CFM] | 0 至 1,907,000 CFM |
| Air Volume [CFM] Max Resolution | 0.001 至 1 CMM |
| Air Volume [CMM] | 0 至 54,000 CMM |
| Memory | 用 2G 的 SD 卡可存储 2000 万条数据记录 |
| Temperature [Air] | 0 至 50 °C |
| Temperature [Air] Basic Accuracy | ±0.8°C |
| Temperature [Air] Max Resolution | 0.1° |
| Temperature [Type J] Basic Accuracy | -100 至 1200 °C |
| Temperature [Type J] Max Resolution | ±(0.4% + 1 °C) |
| Temperature [Type K] Basic Accuracy | 0.1° |
| Temperature [Type K] Max Resolution | -100 至 1300 °C |
| Temperature [Type N] | 0.1° |
| Temperature [Type N] Basic Accuracy | ±(0.4% + 1 °C) |
| 其他详情 | |
|---|---|
| Certifications | SDL350-NIST_S：CE、NIST SDL350_S：CE |
| Dimensions | 182 × 73 × 47.5mm |
| Power | 6 节 AA (1.5V) 电池 |
| Warranty | 3 年 |
| Weight | 655g |
