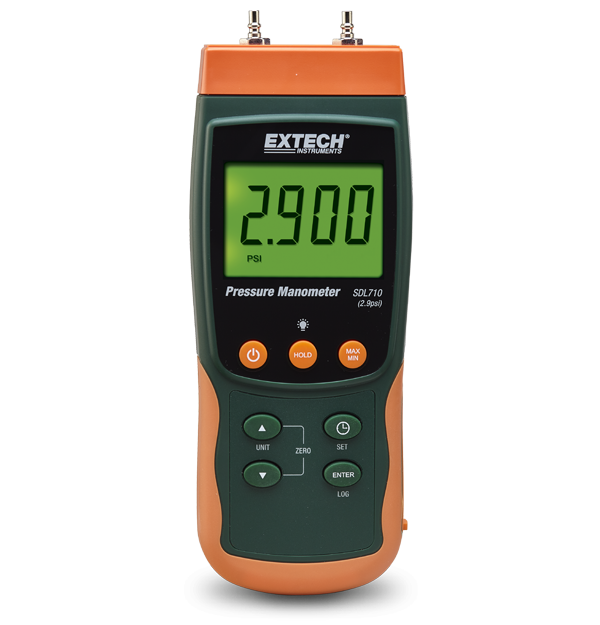

Extech SDL710

压差计/数据记录仪

Extech SDL710 可测量 200 mbar 的低量程压力并记录其读数。包括内部传感器的双压差输入。可手动存储最多 99 个读数，而通过 SD 存储卡（含）则可实现连续数据记录。读数可以轻松导出为 Excel® 格式，以便进一步分析。

规格

一般参数
Pressure [atmosphere] 0.197atm
Pressure [atmosphere] Basic Accuracy ±2% 满量程
Pressure [atmosphere] Max Resolution 0.001atm
Pressure [hPa] 200hPa
Pressure [hPa] Basic Accuracy ±2% 满量程
Pressure [hPa] Max Resolution 0.1hPa
Pressure [inH2O] 80.2inH₂O
Pressure [inH2O] Basic Accuracy ±2% 满量程
Pressure [inH2O] Max Resolution 0.05inH₂O
Pressure [inHg] 5.905inHg
Pressure [inHg] Basic Accuracy ±2% 满量程
Pressure [inHg] Max Resolution 0.002inHg
Pressure [kgcm2] 0.204kg/cm²
Pressure [kgcm2] Basic Accuracy ±2% 满量程
Pressure [kgcm2] Max Resolution 0.001kg/cm²
Pressure [kPa] 20kPa
Pressure [kPa] Basic Accuracy ±1% 满量程
Pressure [kPa] Max Resolution 0.01kPa
Pressure [mbar] 200mba
Pressure [mbar] Basic Accuracy ±2% 满量程
Pressure [mbar] Max Resolution 0.1mbar
Pressure [mH2O] 2.04mH₂O
Pressure [mH2O] Basic Accuracy ±2% 满量程
Pressure [mH2O] Max Resolution 0.001mH₂O
Pressure [mmHg] 150mmHg
Pressure [mmHg] Basic Accuracy ±2% 满量程
Pressure [mmHg] Max Resolution 0.1mmHg
Pressure [psi] 2.9psi
Pressure [psi] Basic Accuracy ±2% 满量程
Pressure [psi] Max Resolution 0.001psi
其他详情
Certifications CE
Dimensions 190 × 68 × 45 mm
Power 6 节 AA (1.5V) 电池
Warranty 2 年
Weight 265g
