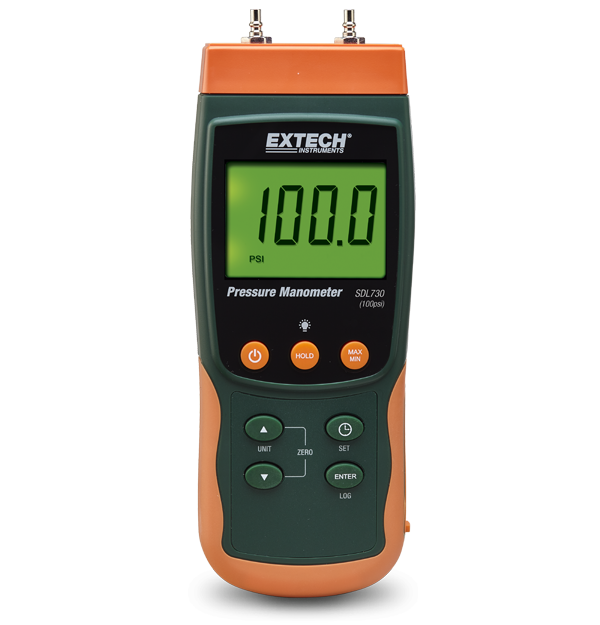

Extech SDL730
压差计/数据记录仪
测量和数据记录高范围 29psi (7000mbar) 压力读数。具有双压差输入和内部传感器。可手动存储最多 99 个读数，并可通过 SD 存储卡（随附）连续数据记录，并且读数可轻松导出为 Excel® 格式，以便进一步分析。
规格
| 一般参数 | |
|---|---|
| Pressure [atmosphere] | 6.905atm |
| Pressure [atmosphere] Basic Accuracy | ±2% 满量程 |
| Pressure [atmosphere] Max Resolution | 0.005atm |
| Pressure [hPa] | 7000hPa |
| Pressure [hPa] Basic Accuracy | ±2% 满量程 |
| Pressure [hPa] Max Resolution | 5hPa |
| Pressure [inH2O] | 2810inH₂O |
| Pressure [inH2O] Basic Accuracy | ±2% 满量程 |
| Pressure [inH2O] Max Resolution | 2inH₂O |
| Pressure [inHg] | 206.7inHg |
| Pressure [inHg] Basic Accuracy | ±2% 满量程 |
| Pressure [inHg] Max Resolution | 0.1inHg |
| Pressure [kgcm2] | 7.135kg/cm² |
| Pressure [kgcm2] Basic Accuracy | ±2% 满量程 |
| Pressure [kgcm2] Max Resolution | 0.005kg/cm² |
| Pressure [kPa] | 700kPa |
| Pressure [kPa] Basic Accuracy | ±1% 满量程 |
| Pressure [kPa] Max Resolution | 0.5kPa |
| Pressure [mbar] | 7000mbar |
| Pressure [mbar] Basic Accuracy | ±2% 满量程 |
| Pressure [mbar] Max Resolution | 5mbar |
| Pressure [mH2O] | 71.35mH₂O |
| Pressure [mH2O] Basic Accuracy | ±2% 满量程 |
| Pressure [mH2O] Max Resolution | 0.05mH₂O |
| Pressure [mmHg] | 5250mmHg |
| Pressure [mmHg] Basic Accuracy | ±2% 满量程 |
| Pressure [mmHg] Max Resolution | 5mmHg |
| Pressure [psi] | 101.5psi |
| Pressure [psi] Basic Accuracy | ±2% 满量程 |
| Pressure [psi] Max Resolution | 0.05psi |
| 其他详情 | |
|---|---|
| Certifications | CE |
| Dimensions | 190 × 68 × 45 mm |
| Power | 6 节 AA (1.5V) 电池 |
| Warranty | 2 年 |
| Weight | 265g |
