FLIR Si124-LD
用于压缩空气泄漏检测的工业声像热像仪
Product Variations

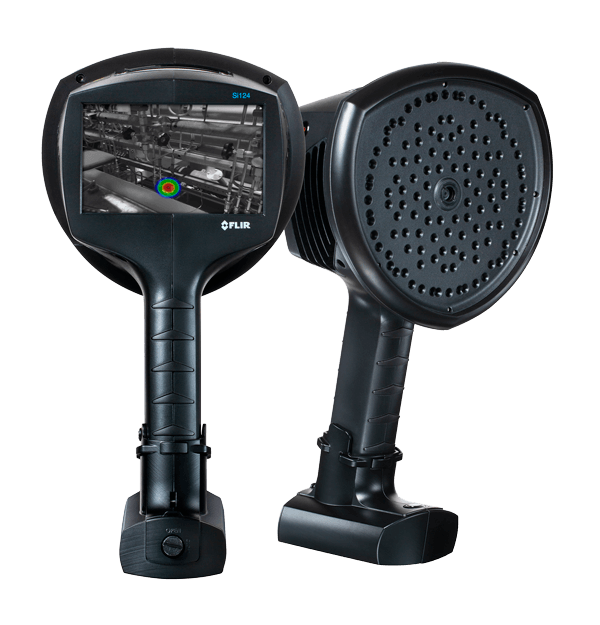

FLIR Si124-LD声像仪可以帮助您定位压缩空气系统中的压缩空气泄漏，速度比传统方法快10倍。这款小巧轻便的单手设备内置了 124 个麦克风，可生成精确的声学图像，即使在声音很大的工业环境中也能直观地呈现超声波信息。声音图像实时转置于数码相机的图像之上，让您可以准确定位声源。Si124-LD 配备了一个插件，使您能够将声像数据导入 FLIR Thermal Studio 套件，以便进行离线编辑、分析并创建高级报告。利用 FLIR Acoustic Camera Viewer 的云服务还可以进行现场分析和报告。通过定期维护，FLIR Si124-LD 可帮助工厂节省公用事业费用，并可将安装新压缩机的费用推迟。
提供其他型号，包括一体化电池款：用于局部放电检测的Si124-PD，或者既可用于局部放电检测应用，也可用于压缩空气泄漏检测应用的Si124 。在以下相关产品部分查看型号。
快速查找压缩空气泄漏
与传统方法相比，通过声像仪检测压缩空气泄漏的速度可以快近10倍
通过确保气动设备中有适当气压，尽可能减少过高的公用事业成本、减少设备故障和缩短停机时间
使用这款可单手操作的轻量化智能工具，可实时确定泄漏的严重程度
规格
| Highlighted | |
|---|---|
| Acoustic Measurement | 124 low-noise MEMS microphones, real-time sound visualization |
| Severity Assessment | Si124-LD Acoustic Camera: N/A Si124-LD Cordless: Automatic AI-based severity assessment including recommended actions |
| Distance | from 0.3 m (1.0 ft) up to 130 m (430 ft) |
| Leak Rate | In typical industrial environment: • >0.032 l/min @ 3 bar from 3 m (9.8 ft) • >0.05 l/min @ 3 bar from 10 m (32.8 ft) Absolute minimum detection in quiet environment: 0.016 l/min @ 1.2 bar from 0.3 m (1.0 ft) |
| 成像与光学 | |
|---|---|
| Camera software update | Automatic over Wi-Fi USB via computer |
| Dynamic Range | Low limit: <-15 dB High limit: >120 dB |
| Field of view [FOV] | 62° × 49° |
| Frame Rate | Video: 25 fps Acoustic image: 30 fps |
| Video Frame Rate | 25 fps |
| Video Image Resolution | 800 × 480 |
| Zoom | 2x digital zoom |
| 测量与分析 | |
|---|---|
| Acoustic Measurement | 124 low-noise MEMS microphones, real-time sound visualization |
| Bandwidth | 2 kHz to 65 kHz, adjustable range MEMS sampling frequency: 130 kHz |
| Distance | from 0.3 m (1.0 ft) up to 130 m (430 ft) |
| Leak Rate | In typical industrial environment: • >0.032 l/min @ 3 bar from 3 m (9.8 ft) • >0.05 l/min @ 3 bar from 10 m (32.8 ft) Absolute minimum detection in quiet environment: 0.016 l/min @ 1.2 bar from 0.3 m (1.0 ft) |
| Severity Assessment | Si124-LD Acoustic Camera: N/A Si124-LD Cordless: Automatic AI-based severity assessment including recommended actions |
| 用户界面 | |
|---|---|
| Display | Size: 5 in. 800 × 480 Color: 24 bit RGB Brightness: 1000 cd/m² (adjustable) |
| Input Device | Resistive touchscreen |
| Power On Indicator | LED (red) |
| 电源 | |
|---|---|
| Battery | Li-Ion rechargeable battery pack (RRC 2040): 10.8 V, 3.35 Ah, 36.2 Wh Usage: more than 2 h (depends on ambient conditions) Charge time: 2 h Max output: 12.6 V, 4 A |
| Battery Charger | Si124-LD Acoustic Camera: Input: 100-240 V ~ 50/60 Hz 1.5 A
Max output: 13.8 V, 4.0 A Si124-LD Cordless: Input: 19 to 26 VDC, 2.8 A Max output: 17.4 VDC, 4.8 A |
| Battery weight | 985 g (2.2 lb) |
| External Battery | LiFePO 12 V 7 Ah, 84 Wh Usage: 7 h (depends on ambient conditions) Charge time: 4 to 6 h Max output: 13.8 V, 4.0 A |
| Internal Battery | Li-Ion 6 Wh |
| Nominal Input Voltage | Si124-LD Acoustic Camera: 12 V
Max input: 15 V 2 A Si124-LD Cordless: 12 V Max input: 15 V 2.5 A |
| 环境与认证 | |
|---|---|
| Operating And Storage Humidity | Recommended 0 to 90% |
| Operating Temperature Range | –10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 70°C (-4°F to 158°F) |
| 常规 | |
|---|---|
| Battery Cord Length | 0.75 m (2.46 ft), extended 1.5 m (4.92 ft) |
| Battery Size | 90 × 145 × 65 mm (3.5 × 5.7 × 2.6 in) |
| Packaging Type | Cardboard box |
| Packaging Weight | Si124-LD Acoustic Camera: 4.5 kg (9.9 lb) Si124-LD Cordless: 4 kg (9 lb) |
| Size | Camera: 315 × 169 × 160 mm (12.4 × 6.6 × 6.3 in) Battery: 85 mm × 59 mm × 22 mm (3.34 in × 2.31 in × 0.86 in) |
| Total Weight [Including All Accessories] | Si124-LD Acoustic Camera: 2.9 kg (6.4 lb) Si124-LD Cordless: 1.25 kg (2.76 lb) |
| Weight | Camera: 1.08 kg (2.38 lb) Battery: 0.17 kg (0.37 lb) |
