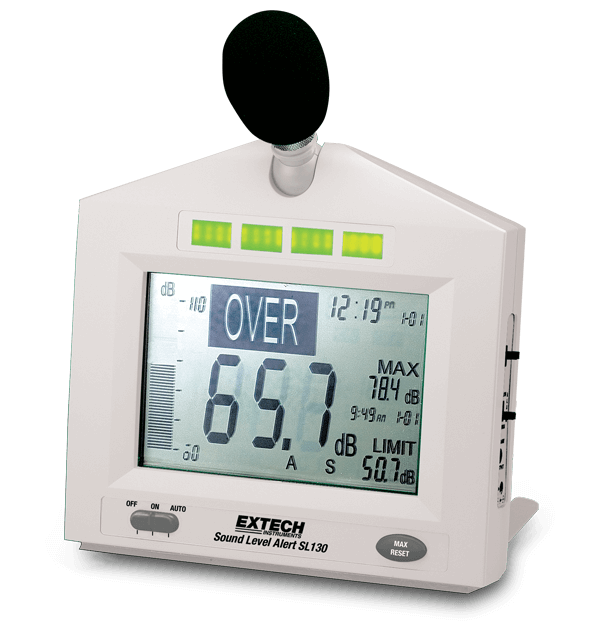

Extech SL130W

噪音警报(带报警装置)

Product Variations

SL130W 是一款噪音警报器,可通过警报来持续监控噪音。适用于工业、医院、会堂、学校和声级达到设定点时有必要进行提示的其它区域。当噪音过高或者过低时,强光LED(呈红色闪烁或者变为绿色)会提示用户 — 可以从距离 30m 处读取 LED 状态。您可以将 SL130 设计成当噪音低于人耳可能无法听到的“LO”设定值时,红色 LED 会闪烁。当噪音高于“LO”设置点时,绿色 LED 会显示声级可以接受。您可以通过用户颜色首选项设置,将红色和绿色 LED 灯的激活条件对调。采用壁装、桌架或者三脚架,可选5米传声器延长电缆,用于远程监控。带输出的用户可设置的高/低限值 (30-130dB) 可驱动外部继电器模块。符合 ANSI 标准的第 2 类和 EN 60651 标准的精度规范 - 符合 OSHA。配有 100-240V 50/60Hz 交流适配器和麦克风防风罩。8 节 AA 电池(不含)只用于无 LED 警报下的监控功能。

Specifications

一般参数
Frequency Bandwidth 31.5 Hz 至 8 kHz
Microphone 电容,0.5"
Response Time 快:125ms/慢:1s
Sound Range [dB] 30 至 80dB、60 至 110dB、80 至 130dB
Sound Range [dB] Max Resolution 0.1dB
Weighting A、C
其他详情
Certifications SL130W-NIST_S:CE、NIST
SL130W_S:CE
Dimensions 22 × 18 × 3.2mm
Display 117 × 79mm 段码液晶显示屏
Power 8 节 AA (1.5V) 电池/交流/直流电源适配器
Warranty 2 年
Weight 285g

Resources & Support

User Manual

Extech SL130W User Manual

Certification

Extech SL130W Declaration of Conformity

Datasheet

Extech SL130W Datasheet
