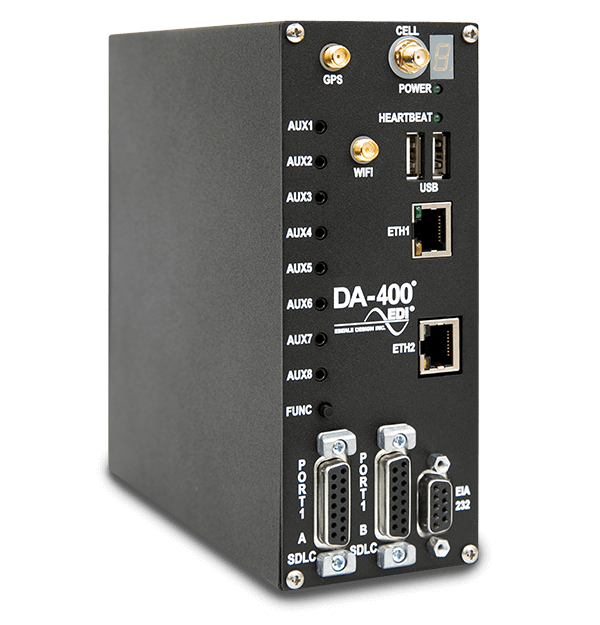

DA-400
Smart City Data Collector
The DA-400 is your bridge from the traffic cabinet to the cloud. More than just a piece of hardware, it enables a wide range of critical infrastructure monitoring and reporting. Whether you need to connect remote infrastructure or take advantage of currently inaccessible data, the DA-400 provides the right solution. Native compatibility with the FLIR Acyclica platform helps turn available data into useful, valuable information.
规格
| 系统概览 | |
|---|---|
| 操作系统 | Linux - Ubuntu 12.04.2 LTS kernel ver. 3.15.3 |
| 通讯 | |
|---|---|
| EIA-232 | Yes |
| iCITE | Yes - used to connect to iCITE G2 |
| RS-485 | Yes - standard up to 32 channels of input |
| SDLC | Yes - standard (easy connectivity with NEMA TS-2 controllers) - 2 ports |
| USB | Standard - 2 ports |
| WiFi | Yes - travel time (receive only - cannot be used as a WLAN) |
| 以太网 | Standard - 2 ports (10/100 Base-T) |
| 天线 | Yes - 5 band (Cellular, GPS, WiFi, BT and DSRC) |
| 数字输入 | 20 (16 x 16 DC; 4 x 24 VDC; 16 detectors; 4 peds) |
| 数字输出 | 3 (either Normally Open and Normally Closed 5A relay) |
| 模拟输入 | 16 (8 x 20 VAC; 8 x 24 VDC) |
| 端口 | Standard (RS-485 inputs from Communicating Detectors) |
| 蓝牙 | No (available as an option) |
| 蜂窝调制解调器 | Yes - 4G/LTE/GSM/GPRS |
| 闪存盘 | Yes |
| 电气 | |
|---|---|
| 实时时钟 | Yes |
| 支持太阳能 | Yes |
| 电池 | None. Capacitors for system critical operations, data, and error logging. |
| 电源输入 | 5x20mm; 120/240 VAC 0.2 AMP fuse |
| 环境 | |
|---|---|
| 工作温度 | -40° to 176° F / -40° to 80° C / Standard industrial temp. range |
| 湿度 | 0 - 95% non-condensing |
| 成像与光学 | |
|---|---|
| 时间同步 | Normally Open with user selectable time |
| 机械 | |
|---|---|
| GPS[指南针] | Yes - geolocation with Time Sync |
| 尺寸 | 6.3” (D) X 6.42” (H) X 2.5” (W). (16.002 cm X 16.307 cm X 6.35 cm) |
| 重量 | 3.6 lbs / 1.62 kg |
资源和支持
Datasheet
DA-400 Datasheet
