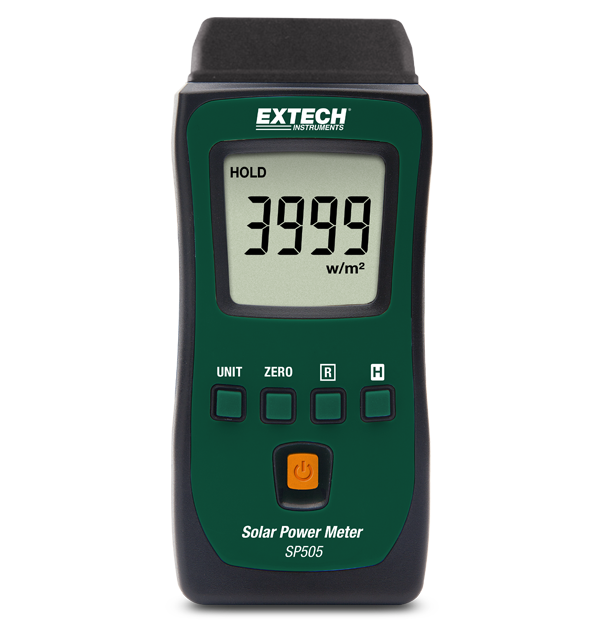

Extech SP505
Pocket Solar Power Meter
Extech’s SP505 measures solar power level from sunlight outdoors to determine the best location of solar panel and solar water heater installations. It is also used indoors by window manufacturers, the automotive industry, and remodeling home owners to check the level of solar radiation transmission through various glass thicknesses and degrees of tinting to use for window installations. The convenient, pocket-sized meter with a built-in precision solar light sensor is easy-to-use wherever you go.
规格
| 一般参数 | |
|---|---|
| 光谱响应 | 400 nm to 1100 nm |
| 太阳能电力 | 3999 W/m², 634 BTU/(ft²×h) |
| 太阳能电力基本精度 | ±10 W/m², ±3 BTU/(ft²×h) or ±5% (whichever is greater) |
| 太阳能电力最大分辨率 | 1 W/m², 1 BTU/(ft²×h) |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 4.3 × 1.9 × 1" (108 × 48 × 23mm) |
| 电源 | 2 × AAA (1.5V) batteries |
| 认证 | CE |
| 重量 | 2.8oz (80g) |
Resources & Support
User Manual
Extech SP505 用户手册
