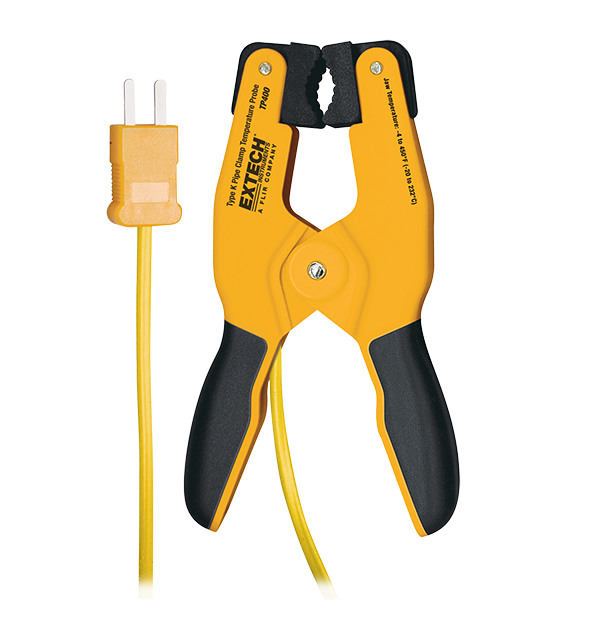

Extech TP400
High Temperature Type-K Pipe Clamp (-4 to 450°F)
The Extech TP400 Type-K High Temperature Pipe Clamp probe produces a hands-free, super heat, and sub cooling temperature measurement. The spring-loaded jaw is for a secure grip on pipes from 6.35 mm (0.25 in) to 38 mm (1.5 in) in diameter. This probe is for use with any thermometer or multimeter with a Type-K thermocouple input. The measurement range is from -20°C to 232°C (-4°F to 450°F) with an accuracy of ± 1.8°C (3.6°F).
规格
| 一般参数 | |
|---|---|
| Cable Length | 36" (0.9m) |
| Pipe Size | 0.25" (6.35mm) to 1.5" (38mm) diameter |
| Sensor Type | Type K curved thermocouple element |
| Temperature [Type K] Max Resolution | -4 to 450 °F (-20 to 232 °C) |
| Temperature [Type N] | ±3.6 °F (1.8 °C) |
| 其他详情 | |
|---|---|
| Certifications | CE |
| Warranty | 1/2 year |
Resources & Support
User Manual
Extech TP400 User Manual
Datasheet
Extech TP400 Datasheet
