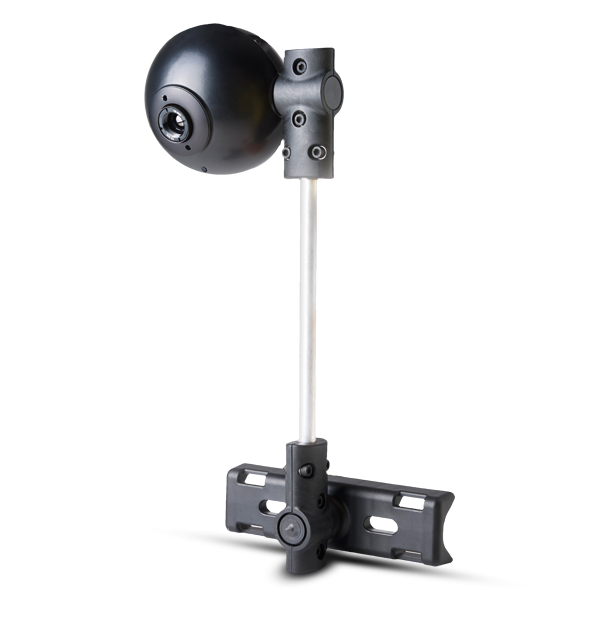

ThermiCam
交通热探测器
Product Variations
ThermiCam集热传感器和探测器于一体，适用于检测车辆和自行车。ThermiCam在运行时无需任何光线，单靠车辆或骑车者散发的热能即可成像。即便遇到最严峻的天气条件，该产品亦能通过传感器在漆黑的夜晚，于较远距离处检测到车辆和自行车。全天候交通检测，结果可靠，适用于多个应用领域。
无论白天黑夜，将自行车与其它车辆区分开来。
ThermiCam检测十字路口及附近的车辆和自行车，实现对交通信号灯的更强动态控制。
ThermiCam非常适合安装在公路入口和出口或城市道路上，以便即刻警告逆行车辆。
ThermiCam也具有精确的车辆和自行车计数功能。
规格
| 系统概览 | |
|---|---|
| 功能 | FLIR TrafiSense BPL 317: Vehicle presence Bike presence FLIR TrafiSense BPL 325, TrafiSense BPL 335, FLIR TrafiSense ETH 325, FLIR TrafiSense ETH 335: Vehicle presence Bike presence Inverse direction FLIR TrafiSense BPL 390, FLIR TrafiSense ETH 390: Vehicle presence Bike presence Inverse direction Counting |
| 检测功能 | Vehicle and bike presence, counting, inverse direction |
| 检测区域数目 | 24 vehicle presence zones 4 bike presence regions 8 inverse direction zones |
| 通讯 | |
|---|---|
| 以太网 | For communication of output state events, configuration & monitoring (streaming video) |
| 压缩 | H.264, MPEG-4, MJPEG (dual stream) |
| 电气 | |
|---|---|
| FCC | FCC part 15 class A |
| 功耗 | ≤ 3,6W (≤ 4,8W peak at start-up) |
| 电流消耗 | < 150mA @ 24VDC (< 200mA @ 24VDC peak at start-up) |
| 触点闭合 | 3 for ETH versions, direct or via optional ETH interface (PN 10-6075) 4 for TI x-stream EDGE (PN 10-6055), 12 extra outputs via 4/Os xp expansion boards |
| 设置用PC工具 | Traficon Configuration Tool (TCT) |
| 输入功率 | 12-42VDC, 12-30VAC |
| 环境 | |
|---|---|
| EU指令 | EMC 2004/108/EC |
| RoHS 2011-65-EU | 0-95% relative |
| 抗撞击和抗振动 | NEMA II specs |
| 温度范围 | From -34°C to +80°C (-29°F to 165°F) |
| 防护等级 | Housing = IP68, Connectors = IP67 |
| 成像与光学 | |
|---|---|
| 分辨率 | QVGA (336 x 256) |
| 显示帧频 | 30 FPS |
| 焦距 | FLIR TrafiSense BPL 317: 19 mm FLIR TrafiSense BPL 325, FLIR TrafiSense ETH 325: 13 mm FLIR TrafiSense BPL 335, FLIR TrafiSense ETH 335: 9 mm FLIR TrafiSense BPL 390, FLIR TrafiSense ETH 390: 7.5 mm |
| 类型 | Long wave Infrared (7 – 14 µm) |
| 视场角 | FLIR TrafiSense BPL 317: Horizontal: 17° Vertical: 13° FLIR TrafiSense BPL 325, FLIR TrafiSense ETH 325: Horizontal: 25° Vertical: 19° FLIR TrafiSense BPL 335, FLIR TrafiSense ETH 335: Horizontal: 35° Vertical: 27° FLIR TrafiSense BPL 390, FLIR TrafiSense ETH 390: Horizontal: 90° Vertical: 69° |
| 机械 | |
|---|---|
| 尺寸（含安装支架） | Vertically mounted 45cm x 16cm x 12cm (17.7 x 6.3 x 4.7 inch) Horizontally mounted 41cm x 18cm x 12cm (16.1 x 7.1 x 4.7 inch) |
| 材料 | All weatherproof (UV-resistant) |
| 遮阳罩 | Optional |
