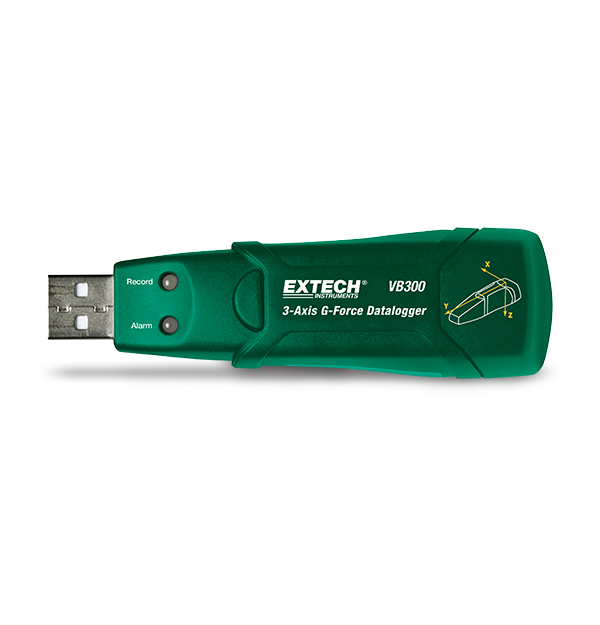

Extech VB300
3-Axis G-Force USB Datalogger
The VB300 is a G-Force datalogger which records and times 3-axis shock and vibration (acceleration) readings over its ±18g measurement range. This device will record 3-axis g-force and related peaks to provide a history of shock and vibration conditions. Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows compatible analysis software.
规格
| 一般参数 | |
|---|---|
| 传感器类型 | MEMS semiconductor |
| 内存 | 4Mbit Flash; 112028 Motion Detection samples per axis, or 168042 Normal samples |
| 加速度 | ±18g |
| 加速度基本精度 | ±0.5g |
| 加速度最大分辨率 | 0.00625g |
| 数据格式 | Time stamped peak acceleration, average and peak vector sum |
| 数据记录间隔时间 | 500 ms to 24 hours (software) |
| 采样率 | 200Hz |
| 频带宽度 | 0 to 60Hz |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 尺寸 | 3.7 × 1.1 × 0.8" (95 × 28 × 21mm) |
| 电源 | 1 × 3.6V Lithium battery |
| 认证 | CE |
| 重量 | 1oz (20g) |
