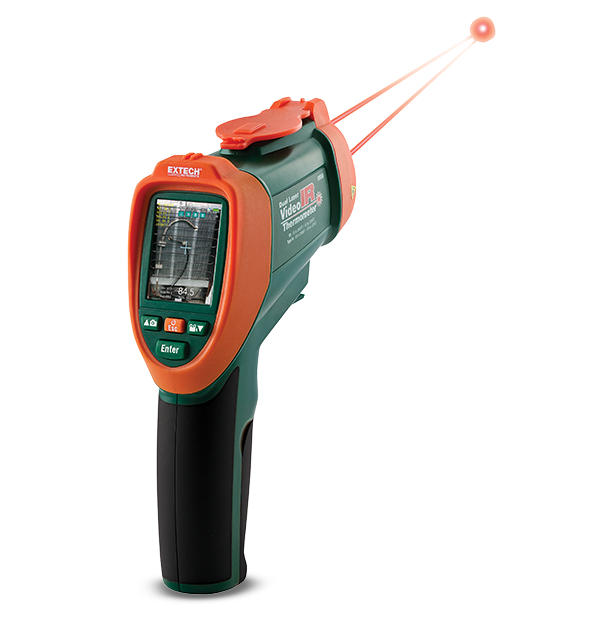

Extech VIR50
Dual Laser IR Video Thermometer
The Extech VIR50 is a 2200°C (3992°F) Dual Laser Video IR Thermometer which features a 5.6 cm (2.2 in) color TFT LCD display and built-in VGA (640 x 480) camera. It includes a MicroSD card for capturing images (JPEG) and video (3GP) for viewing on your PC. Dual lasers indicate the ideal measuring distance (approximately 127 cm) where the two laser points converge to a 2.5 cm (1 in) target spot. Comes with microSD card, general-purpose Type-K bead wire probe, USB cable, rechargeable 3.7 V battery, carrying case, and user manual.
规格
| 一般参数 | |
|---|---|
| 发射率 | 0.10 to 1.00, adjustable |
| 可重复性 | ±0.5% or 1.8 °F/1 °C |
| 温度 (RTD) | 0.1 °F/ °C |
| 温度（接触） | -58 to 2498 °F (-50 to 1370 °C) |
| 温度（空气） | 32 to 122 °F (0 to 50 °C) |
| 温度（红外）基本精度 | -58 to 3992 °F (-50 to 2200 °C) |
| 温度（红外）最大分辨率 | ±(1% of reading + 4 °F/2 °C) (31 to 212 °F) |
| 热像仪 | 640 x 480 pixels |
| 目标 | dual laser |
| 相对湿度 | 0 to 100% |
| 距离系数比 | 50:1 |
| 其他详情 | |
|---|---|
| 保修 | 3 years |
| 尺寸 | 7.4 × 6.0 × 2.2" (189 × 152 × 57mm) |
| 显示屏 | 2.2" TFT LCD, 320 x 240 pixels |
| 电源 | 1 × 3.7V rechargeable battery |
| 认证 | CE |
| 重量 | 17.4oz (494g) |
