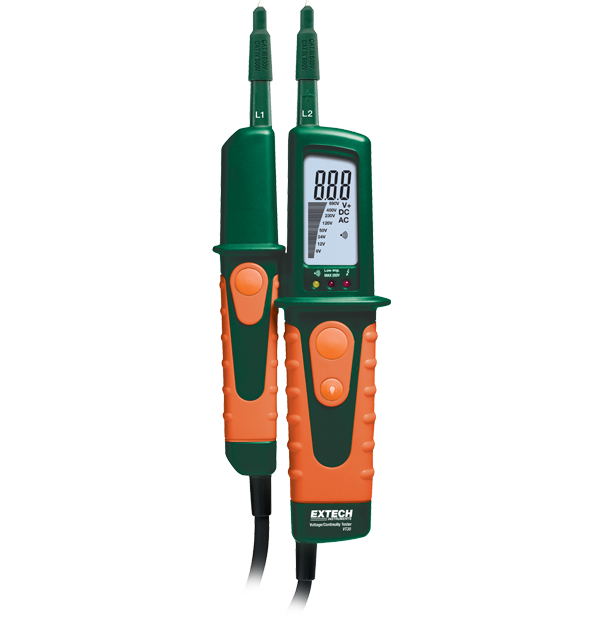

Extech VT30
LCD 多功能电压测试仪
Extech VT30 是一款电压、导通和相位测试仪，配备内置的照明灯和带条形图的背光数字显示屏。这款坚固耐用的测试仪采用双模塑 IP64 级外壳，提供带 LED 指示的极性检测，用于检测直流的正负极，并且可达到 CAT III 600 伏/CATIV 600 伏安全等级。VT30 配有两节 AAA 电池、防护盖和便携袋，并提供 1 年质保。
规格
| 一般参数 | |
|---|---|
| AC Voltage | 0 至 480V（交流） |
| AC Voltage Basic Accuracy | ±（读数的 1.5% + 5 位数） |
| AC Voltage Max Resolution | 1V |
| Built_In Flashlight | 是 |
| Continuity | 0 至 200kΩ，保证 <50kΩ |
| DC Voltage | 0 至 690 V（直流） |
| DC Voltage Basic Accuracy | ±（读数的 1.0% + 3 位数） |
| DC Voltage Max Resolution | 1V |
| Frequency Bandwidth | 50/60Hz |
| Input Impedance | 1MΩ（约） |
| Low Impedance | 12-250V（交流/直流）；阻抗 <6kΩ |
| Max Current | Ω1.2mA (400VAC)；Ω1.5mA (690VDC) |
| Response Time | 每秒刷新 2-3 次 |
| 其他详情 | |
|---|---|
| Certifications | CE |
| Dimensions | 240 × 78 × 40mm |
| IP Rating | IP64 |
| Power | 2 节 AAA (1.5V) 电池 |
| Safety Category | CAT III - 600V、CAT IV - 600V |
| Warranty | 2 年 |
| Weight | 260g |
