Discontinued

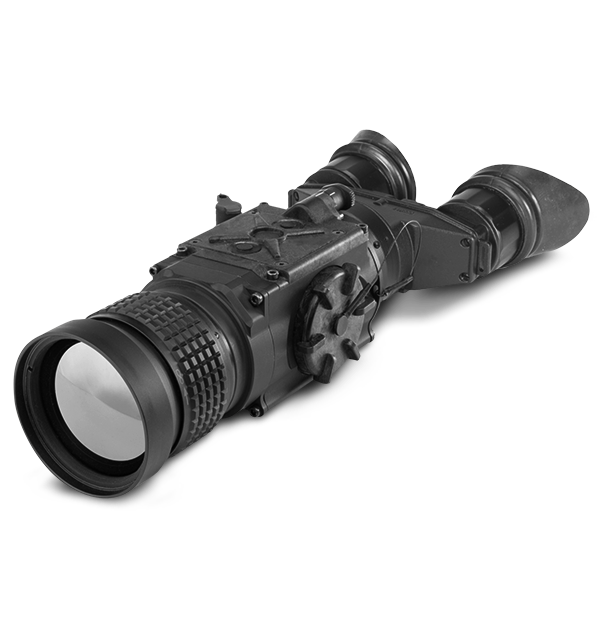

FLIR Command
Long-Range Thermal Imaging Bi-Ocular
Product Variations
Built for long-range surveillance in complete darkness, the FLIR Command packs high-performance thermal imaging into a 50mm, 75mm, or 100mm lens bi-ocular. Command’s ergonomic design offers comfort during sustained viewing periods while a rugged housing and FLIR Tau 2 thermal core generate dependable imagery in snow, dust, smoke, fog, and haze.
Sharp Long-Range Surveillance
Crisp thermal imaging operates in complete darkness and cuts through atmospheric obscurants.
50mm, 75mm, and 100mm optical lens options and onboard digital zoom allow reliable surveillance from distance.
Ergonomic design, swappable CR123 batteries, and a high definition OLED display make sustained viewing more comfortable.
Specifications
| Highlighted | |
|---|---|
| Video Recording | Optional Digital Video Recorder with SD card slot |
| Sensor und optische Daten | |
|---|---|
| Active Contrast Enhancement | Yes |
| Automatic Gain Control [AGC] | Yes |
| Diopter Adjustment | Manual |
| Diopter Adjustment Range | ±5 diopter |
| Display Brightness | Discretely Adjustable to 8 Levels |
| Display Type | AMOLED SVGA 060 |
| Exit Pupil Diameter [mm] | 14 |
| Eye Relief [mm] | 16 |
| Field of View [angle] | 3.3° × 2.5° |
| Focus Range | 10m to inf. |
| Magnification | 7.0x / 8.4x |
| Objective Focal Length | 100 mm |
| Objective F_number | 1:1 |
| Objective Lens Type | Germanium |
| Pixel Array Format | 336×256 |
| Pixel Display Format | 800×600 |
| Pixel Size | 17 µm |
| Refresh Rate | 30 Hz |
| Second Generation Digital Detail Enhancement [DDE] _ Sharpness | Yes |
| Silent Shutterless NUC [SSN] | Yes |
| Type of Focal Plane Array | FLIR Tau 2 |
| Umgebungsfaktoren und Zulassungen | |
|---|---|
| Operating Temperature | –40°C to +50°C (–40°F to +122°F) |
| Storage Temperature | –50°C to +70°C (–58°F to +158°F) |
| Stromversorgung | |
|---|---|
| Battery | Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2) |
| Battery Life | Up to 4 hr (optional up to 12 hrs) |
| Battery status indicator | Yes |
| External Power Supply | 6 VDC/ 600mA |
| Dateispeicherung und Datenübertragung | |
|---|---|
| Analog Input and Output Format [resolution] | PAL (768×574 pixels)/ NTSC (640×480 pixels) |
| Remote Control | Wireless |
| Video Recording | Optional Digital Video Recorder with SD card slot |
| Benutzeroberfläche/-funktionen | |
|---|---|
| Focus Method | Manual |
| Smart Scene Optimization | Yes |
| User_Controlled Manual Non_Uniformity Correction_ Flat_Field Correction [UCMNUC_ FFC] | Yes |
| Systemübersicht | |
|---|---|
| Digital Zoom | 1x, 2x and 4x |
| Warranty | 2 years standard, 3 years with product registration |
| Warranty on Detector | 10 Years |
| Physikalische Daten | |
|---|---|
| Dimensions [L x W x H] | 322×122×116 mm (12.6×4.8×4.5 in) |
| Weight [w_o Batteries] | 1.3 kg (2.9 lbs) |
| Zubehör | |
|---|---|
| Included Accessories | Soft carrying Case Battery Cassette Packing Box Instruction Manual with Warranty Card Two Lithium Battery CR123A AWReC (Advanced Wireless Remote Control) #94 Picatinny adapter for AWReC (Advanced Wireless Remote Control) Video Cable Lens Tissue |
| Optional Accesories | ARMASIGHT by FLIR Mil-Standard Hard Shipping/Storage Case #101 ARMASIGHT by FLIR Tripod with a Grip ARMASIGHT by FLIR AMRF2200 - Advanced Modular Range Finder ARMASIGHT by FLIR HD DVR Digital Video Recorder ARMASIGHT by FLIR Extended Battery Pack |
