FH-Series™ R PTZ
Multi-Spectral Pan-Tilt-Zoom Camera for Fire Detection and Monitoring of Surface Temperature Thresholds
Product Variations

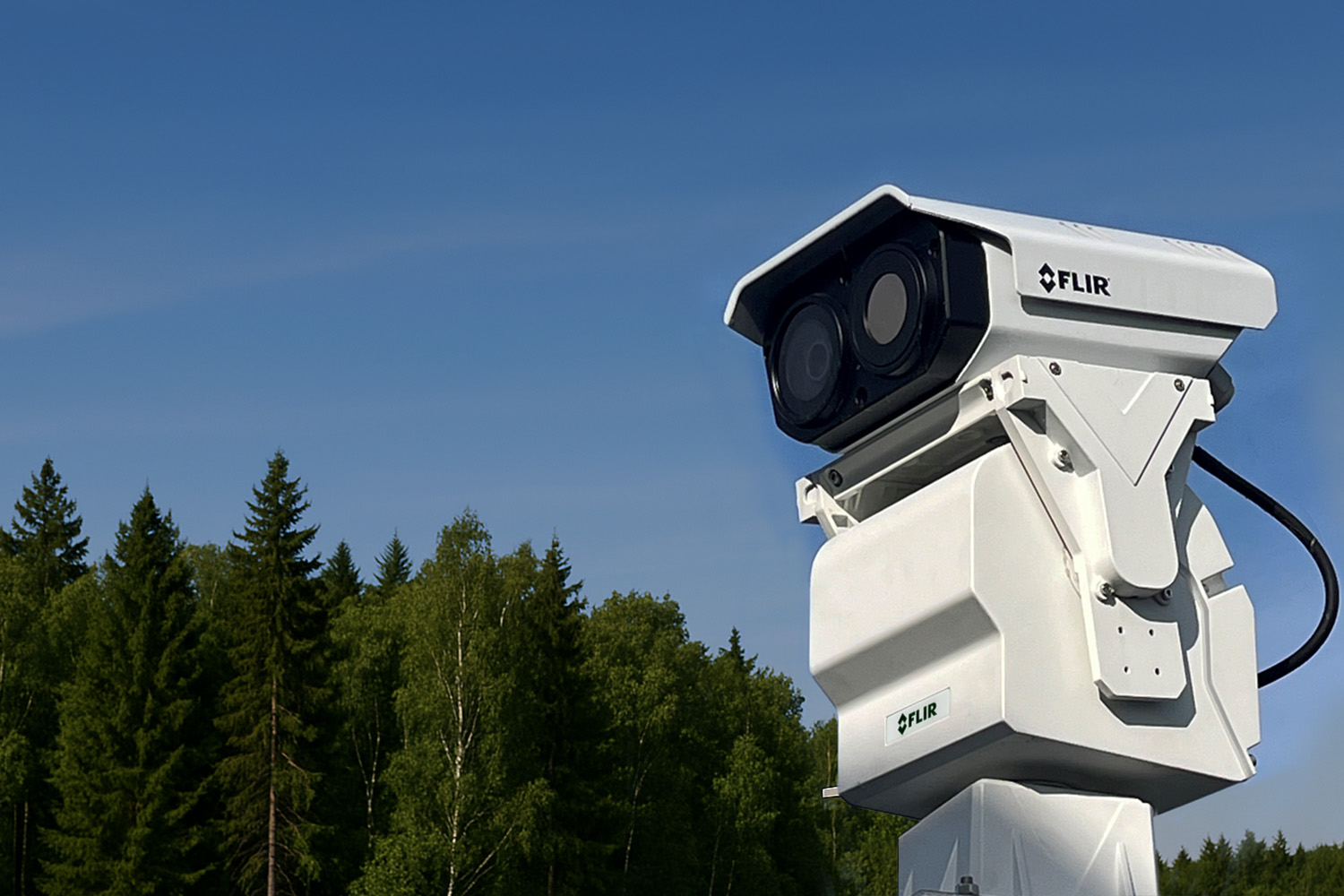

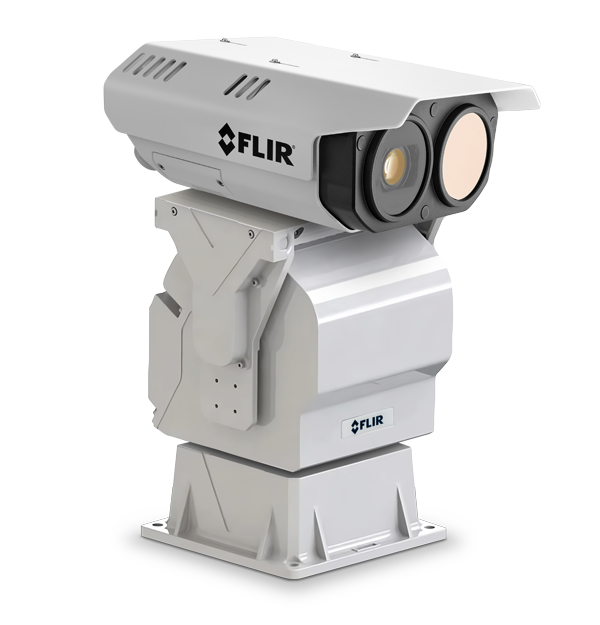

The FH-Series R PTZ is a rugged Pan-Tilt-Zoom visible plus thermal radiometric camera for fire detection and security applications. This multispectral camera integrates industry-leading thermal imaging with 1080p visible imaging to provide rapid visual verification of smoke and hot spots and for detecting fires early in outdoor areas. The onboard radiometry combined with Pan-Tilt-Zoom functionality enables continuous wide area coverage and round the clock monitoring against potential fires.
When a hot spot or surface temperature change is detected, the contactless temperature measurement is sent to the operator through a connected Video Management System (VMS) for instantaneous assessment and deployment of response tactics. Custom scheduling provides security personnel the flexibility to enable and disable alarms depending on business hours and seasonality.
有效的早期火灾检测
FH R 系列 PTZ 提供热成像、辐射流和 4K 可见光成像功能，可在热点达到点火温度之前对其进行识别和可见光验证。非常适合工业、仓库或制造地点，采用 FH R 系列 PTZ 进行早期火灾检测可提高安全性、保护设施并防止停机。
网络安全和 NDAA 合规
我们非常注重您的数据安全，正如您注重现场安全一样。Flir 安防热像仪是构建网络强化型安全系统的理想选择，尤其适用于关键基础设施和政府应用场景。Flir 将网络安全考虑因素纳入开发流程，进行内部和外部漏洞测试、严格的代码审核并采用严格的 IT 协议，确保满足《国防授权法》(NDAA) 合规标准。
检测和验证入侵者
FH R 系列 PTZ 配备高分辨率 4K 可见光相机和高达 30 倍的光学变焦，可捕捉安保人员正确识别和评估情况所需的关键细节，显著缩短响应时间。
连接安全传感器与 Flir Nexus
通过 Flir Nexus 实现跨广域的无缝地理跟踪目标，Flir Nexus 是一种专有通信协议，有助于弥合 FH R 系列 PTZ、其他相机、雷达设备及其监控系统之间的差距。Nexus 能够与 Flir 雷达和其他热成像和可见光相机进行无缝协调，以保持连续跟踪，即使在雷达视场之外也是如此。
Other Key Advantages
Integrates a high-resolution radiometric <35 mK NETD thermal sensor with a 1080p visual, 30x zoom camera for hot spot detection
and visual verification.
Measures surface temperatures and processes temperature differences in real time.
Onboard radiometry delivers minimum, maximum, average and differential temperature measurement in user-defined spots, box and polygon shaped areas.
Quote Carousel
“与灭火系统相比，红外热像仪的投资要少得多。除了防止物理损坏和业务损失外，热像仪还有助于保护品牌的声誉，尤其是在食品生产等竞争激烈的市场中。”
“热成像安防相机在 Oranjemund（钻石矿）证明了其价值。它们是在漆黑和恶劣天气条件下检测活动的出色工具。”
规格
| Compliance & Certifications | |
|---|---|
| Compliance and Certifications | FH R PTZ camera: FCC Part 15 (Subpart B, class A); UL Listed; RoHS; WEEE FH R PTZ camera plus PTU unit: Certifications Pending. ONVIF Profile S, G, T IEC 62368 |
| Cyber Security | |
|---|---|
| Security | IEEE 802.1X TLS / HTTPS User authentication Access control via firewall User credentials with policy enforcement Digest authentication |
| Environmental | |
|---|---|
| Humidity | FH R PTZ camera: 0-95% relative humidity PTU unit: <90% relative humidity |
| IP Rating (dust & water ingress) | IP66 |
| Operating Temperature Range | -35°C to 65°C (-31°F to 149°F) |
| Shock | IEC 60068-2-27 (FH R PTZ camera only) |
| Storage Temperature | FH R PTZ camera: -55°C to 85°C (-67°F to 185°F) PTU unit: -40°C to 70°C (-40°F to 158°F) |
| Vandal Resistance | IK10 (except windows; FH R PTZ camera only) |
| Vibration | IEC 60068-2-64 (FH R PTZ camera only) |
| General | |
|---|---|
| Detector Type | Long-life, uncooled Vox microbolometer |
| Enclosure | FH R PTZ camera: NEMA 4X PTU unit: aluminum alloy |
| Input Voltage | 24 V AC (±10%) 24 V DC (±10%)* *Ensure power supply is capped correctly to avoid overheating |
| Power Consumption | FH-Series R PTZ + PTU Unit: ≤150 W |
| Size [L × W × H] | tba |
| Surge Immunity on AC Power Lines | EN 50130-4 (FH R PTZ camera only) |
| Surge Immunity on Signal Lines | EN 50130-4 (FH R PTZ camera only) |
| Weight | 18.1 kg (41.4 lbs) |
| Measurement & Analysis | |
|---|---|
| Accuracy | Target below 100°C (212°F): ±5°C (±9°F) Target below 150°C (302°F): ±5% Target above 150°C (302°F): ±15% Measured at 25°C ambient temperature. Inaccuracy can increase at extreme temperatures. |
| Object Temperature Range | High Gain Mode: 0°C to 160°C (32°F to 320°F) Low Gain Mode: 0°C to 380°C (32°F to 716°F) |
| PTZ | |
|---|---|
| Pan Angle | 360° continuous |
| Pan Speed | 0.1°/s to ~55°/s |
| Presets - Preset Accuracy | Supports 200 valid preset bits; ±0.1° accuracy |
| Tilt Angle | -75° to ~40° |
| Tilt Speed | 0.1°/s to ~25°/s |
| System Integration | |
|---|---|
| Digital I_O | Input: two dry alarm contacts Output: two relay contacts, 1A max and 24 V AC/30 V DC Normally open or normally closed (configurable) |
| Ethernet | 100/1000 Mbps |
| Network APIs | NEXUS SDK, NEXUS CGI, ONVIF PROFILES S, G, and T |
| Streaming Resolution | Primary and Secondary Streams Thermal: VGA (640 × 512) Visible: 1080p (1920 × 1080), 720p (1280 × 720), VGA (640 × 480) |
| Supported Protocols | IPv4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X |
| Thermal Camera | |
|---|---|
| Array format | 640 × 512 |
| Focal Length | 35 mm |
| Image Uniformity Optimization | Automatic flat-field correction (FFC) - thermal and temporal triggers |
| Pixel Pitch | 17 µm |
| Sensitivity | <35 mK @ 25°C (77°F), f/1.0 |
| Spectral Range | 7.5 µm to 13.5 µm |
| Thermal AGC Region of Interest [ROI] | Default, presets, and user-definable to ensure optimal image quality on subjects of interest |
| Thermal Image Settings | Auto AGC, Digital Detail Enhancement (DDE), brightness, contrast |
| Video Frame Rate | NTSC: 5-30 fps / PAL: 5-25 fps |
| Visible Camera | |
|---|---|
| Array format | 640 × 512 |
| Focal Length | 35 mm |
| Sensitivity | <35 mK @ 25°C (77°F), f/1.0 |
| Spectral Range | 7.5 µm to 13.5 µm |
| Video Frame Rate | NTSC: 5-30 fps / PAL: 5-25 fps |
| Visible f number | f/1.6–f/4.4 |
| Video & Recording | |
|---|---|
| Video Compression | H.264/H.265/MJPEG: four independent streams (2 visible, 2 thermal) |
