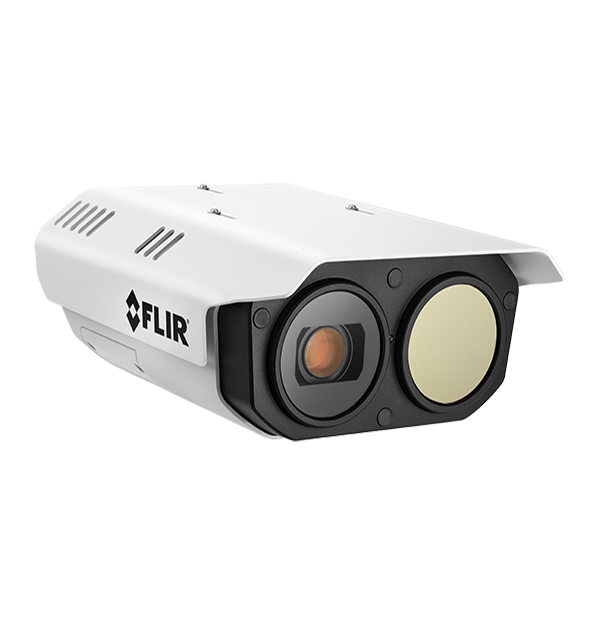

FH-Series R
Multispectral Fixed Camera for Early Fire Detection
Flir FH-Series R multispectral fixed cameras integrate industry-leading thermal imaging with 4K visible imaging to provide rapid visual verification of hot spots in early fire detection applications. When a hot spot or temperature change is detected, the contactless temperature measurement is sent to the operator through a connected Video Management System (VMS) for instantaneous assessment and deployment of response tactics. Custom scheduling provides security personnel the flexibility to enable and disable alarms depending on business hours and seasonality. Combining the power of thermal hot-spot detection with intelligent vehicle detection, false alarms from hot exhaust pipes can be dramatically reduced.
Specifications
| Compliance & Certifications | |
|---|---|
| Approvals | FCC Part 15 (Subpart B, class A), CE Marked |
| Certifications | IEC 62368 |
| Compliance | RoHS, WEEE |
| Environmental | |
|---|---|
| Humidity | 0-95% relative humidity |
| IP Rating [dust and water ingress] | IP66 & IP67 |
| Operating Temperature Range | -40°C to 70°C/-40°F to 158°F |
| Shock | IEC 60068-2-27 |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Vibration | IEC 60068-2-64 |
| General | |
|---|---|
| Dimensions [L x W x H] | 314 x 233 x 124 mm/12.4" x 9.2" x 4.9" |
| Power Consumption | Nominal: 15 W Heaters enabled, 12 VDC: 48 W Heaters enabled, all other inputs: 70 W |
| Surge Immunity on AC Power Lines | EN 50130-4 |
| Surge Immunity on Signal Lines | EN 50130-4 |
| Measurement & Analysis | |
|---|---|
| Analytics Features | Region Entrance/Intrusion Detection, Crossover/Fence Trespassing; Auto/Manual Depth Setup, Human and Vehicle Rules, Tampering, Loitering, CNN classifier |
| Analytics Management | Web-based confguration and management, masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control |
| Measurement Accuracy | Target below 100 °C (212 °F): ± 5 °C (±9 °F) accuracy Target below 150 °C (302 °F): ± 5% accuracy Target above 150 °C (302 °F): ± 15% accuracy *Measured at 25°C ambient temperature. Error may be greater at extreme temperatures |
| Object Temperature Range | High Gain Mode: 0°C to 160°C (32°F to 320°F) Low Gain Mode: 0°C to 380°C (32°F to 716°F) |
| System Integration | |
|---|---|
| Control Input_Output | Input: two dry alarm contacts Output: two relay contacts 1A max at 24 Vac/30 Vdc Configurable between normally open and normally closed |
| Ethernet | 100/1000 Mbps |
| External Analytics Compatible | Yes |
| Network APIs | NEXUS® SDK NEXUS® CGI ONVIF Profile S, G, T |
| Streaming Resolutions | FLIR FH-313 R, FLIR FH-324 R, FLIR FH-369 R: Primary Stream:
Thermal: QVGA (320 x 256)
Visible: 4k (3840 x 2160), 1080P (1920x1080), 720P (1280x720) & VGA 640x480
Secondary Stream:
Thermal: QVGA (320 x 256)
Visible: 1080P (1920x1080), 720P (1280x720) & VGA 640x480 FLIR FH-617 R, FLIR FH-625 R, FLIR FH-644 R, FLIR FH-669 R: Primary Stream: Thermal: VGA (640x512), QVGA (320 x 256) Visible: 4k (3840 x 2160), 1080P (1920x1080), 720P (1280x720) & VGA 640x480 Secondary Stream: Thermal: VGA (640x512), QVGA (320 x 256) Visible: 1080P (1920x1080), 720P (1280x720) & VGA 640x480 |
| Supported Protocols | IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, ONVIF |
| Video Over Ethernet | Two independent channels of H.264/H.265 or M-JPEG (except 4k) for visible and thermal |
| Thermal Camera | |
|---|---|
| Array format | 4K 2160p (3840 x 2160) |
| Array Format [Thermal] | FLIR FH-313 R, FLIR FH-324 R, FLIR FH-369 R: 320 × 256 FLIR FH-617 R, FLIR FH-625 R, FLIR FH-644 R, FLIR FH-669 R: 640 × 512 |
| Detector Pitch [Thermal] | 17 µm |
| f number | FLIR FH-313 R, FLIR FH-324 R, FLIR FH-617 R, FLIR FH-625 R, FLIR FH-644 R: 1.8 FLIR FH-369 R, FLIR FH-669 R: 1.6 |
| f number [Thermal] | FLIR FH-313 R, FLIR FH-617 R, FLIR FH-625 R: f/1.1 FLIR FH-324 R, FLIR FH-644 R: f/1.0 FLIR FH-369 R, FLIR FH-669 R: f/1.4 |
| Field of View [FOV] [Thermal] | FLIR FH-313 R: 13° × 10° FLIR FH-324 R: 24° × 18° FLIR FH-369 R: 69° × 56° FLIR FH-617 R: 17° × 14° FLIR FH-625 R: 25°×18° FLIR FH-644 R: 44°×36° FLIR FH-669 R: 69° × 56° |
| Image Uniformity Optimization | Automatic Flat Field Correction (FFC); Thermal and Temporal Triggers |
| Spectral Range [Thermal] | 7.5 µm to 13.5 µm |
| Thermal AGC Modes | Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting |
| Thermal AGC Region of Interest [ROI] | Default, Presets and User definable to insure optimal image quality on subjects of interest |
| Thermal Sensitivity_NETD [Thermal] | <35mK @ 25°C F# 1.0 |
| Video Frame Rate | 30 Hz or less |
| Video Frame Rate [Thermal] | NTSC: 30 Hz or PAL: 25 Hz / 8.3 Hz |
| Video & Recording | |
|---|---|
| Composite Video NTSC or PAL | Hybrid system with IP & analog video |
| Local Storage | Support for SD Card (not supplied) |
