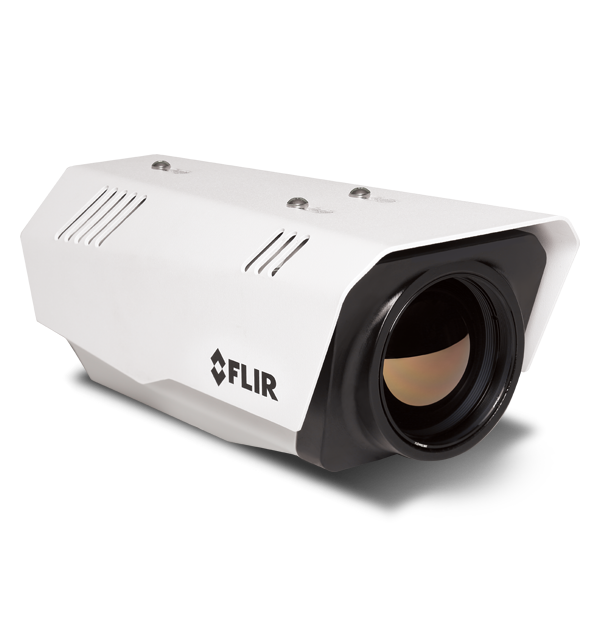

ITS Series
Thermal imaging camera for traffic monitoring
FLIR ITS-Series sensors deliver superior image accuracy and reliability for traffic monitoring applications. ITS-Series thermal imaging sensors can monitor vehicles in a wider variety of conditions than traditional visible-light sensors. By detecting the heat of all objects in the scene, the FLIR ITS-Series operates in broad daylight or total darkness, poor weather and even light fog. Combined with FLIR’s video analytics boards, the FLIR ITS-Series makes a great solution for Automatic Incident Detection (AID).
Specifications
| Communications | |
|---|---|
| Analog Video Output | NTSC, PAL or PAS 8.3Hz |
| Video Over Ethernet | Two independent channels of H.264 or M-JPEG |
| Electrical | |
|---|---|
| Power Consumption, Source – 12VDC | Heater off: <5.5 W Heater on (at 100%): <25 W |
| Power Consumption, Source – 24VAC[VA] | Heater on: <8 W Heater off (at 100%): <32 W |
| Power Consumption, Source – 24VDC | Heater on: <5.5 W Heater off (at 100%): <25 W |
| Power Consumption, Source – POE [802.3af] | Heater on: <5.5 W Heater off (at 100%): N/A |
| Power Consumption, Source – POEPlus [802.3at] | Heater on: <5.5 W Heater off (at 100%): <25 W |
| Surge Immunity on Signal Lines | EN 55024:2010 and 55022:2010 to 4.0kV |
| Environmental | |
|---|---|
| Humidity | 0-95% relative humidity |
| IP Rating | IP66 & IP67 |
| Operating Temperature Range | -50° to 70°C (-58° to 158°F) continuous operation -40° to 70°C (-40° to 158°F) cold start |
| Shock | MIL-STD-810G "Transportation" |
| Standard Package | Thermal imaging camera, operator manual |
| Storage Temperature Range | -50° to 85°C (-58° to 185°F) |
| Surge Immunity on AC Power Lines | EN 55024: 2010 and 55022: 2010 to 4.0kV on AC aux power lines; EN 50130-4:2011; IEC 62599-2:2010 |
| Vibe | IEC 60068-2-27 |
| Imaging & Optical | |
|---|---|
| Automatic Heater | Clears ice from windows, Automatic deicing |
| Detector Type | Focal Plane Array (FPA), uncooled VOx microbolometer |
| Field of View | FLIR ITS317, FLIR ITS617: 17° x 14° FLIR ITS324: 24° x 18° FLIR ITS625: 25° x 19° FLIR ITS332, FLIR ITS632: 32° x 26° FLIR ITS344, FLIR ITS644: 44° x 36° |
| Image Processing | Automatic Gain Control (AGC), Digital Detail Enhancement (DDE) |
| Resolution | FLIR ITS317, FLIR ITS324, FLIR ITS332, FLIR ITS344: 320 x 256 FLIR ITS617, FLIR ITS625, FLIR ITS632, FLIR ITS644: 640 x 512 |
| Spectral Range | 7.5 to 13.5 µm |
| Regulatory | |
|---|---|
| Approvals | CE: EN55022 Class A; FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits) |
Resources & Support
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
