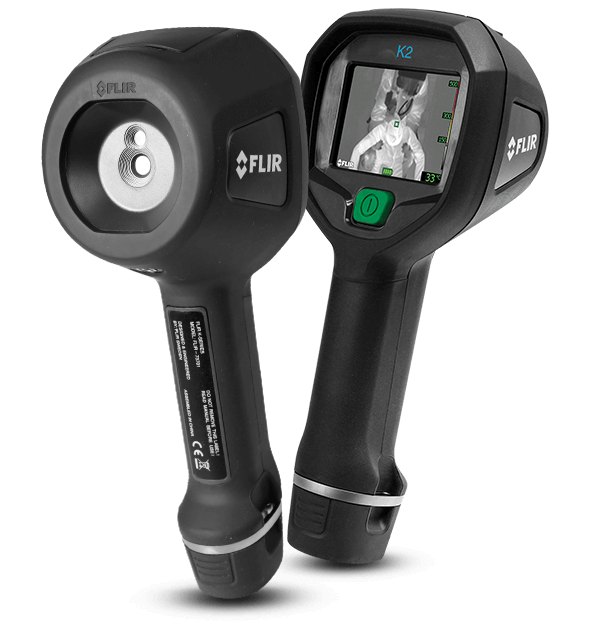

FLIR is on a mission to make high quality thermal imaging cameras standard issue equipment for every member of a fire crew. The FLIR K2 makes that possible by providing capability, ruggedness, and reliability at an affordable price. With features such as Multi-Spectral Dynamic Imaging (MSX®), easy-to-use buttons, and operability in temperatures up to 500°F, the K2 is a small investment that pays big dividends–saving lives, protecting property, and ensuring firefighter safety.
Rugged. Reliable. Life-saving.
The K2 makes high-quality thermal imaging more accessible so more first responders can help save lives and protect property.
This lightweight camera attaches easily to turnouts, and offers simplified, single-button controls that can be used with heavy gloves.
The K2 withstands a 2-meter drop onto concrete, is water resistant (IP67) and is fully operational up to 500°F (3 minutes).
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 160 × 120 pixels |
| Display | 3 in. LCD, 320 × 240 pixels, backlit |
| Object Temperature Range | –20°C to 150°C (–4°F to 302°F) 0°C to 500°C (32°F to 932°F) |
| Image Modes | Basic fire-fighting mode (default) Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Cold detection mode Building analysis mode |
| Camera weight incl battery | 0.7 kg (1.54 lb.) |
| Camera size [L x W x H] | 250 mm x 105 mm x 90 mm (9.8 in. x 4.1 in. x 3.5 in.) |
| Imaging & Optical | |
|---|---|
| Built_in Digital Camera | 640 × 480 pixels |
| Depth of Field | 0.1 m (0.33 ft.), infinity |
| Detector Type | Focal plane array, uncooled microbolometer |
| Digital Camera FOV | 73° × 61°, adapts to the IR lens |
| f number | 1.1 |
| Field of view [FOV] | 47° × 35° |
| Focal Length | 1.9 mm (0.075 in.) |
| Focus | Fixed |
| Image Frequency | 9 Hz |
| Image Modes | Basic fire-fighting mode (default) Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Cold detection mode Building analysis mode |
| IR Resolution | 160 × 120 pixels |
| Multi Spectral Dynamic Imaging [MSX] | Yes |
| Pitch | 12 µm |
| Sensitivity | |
| Spatial resolution [IFOV] | 6.22 mrad |
| Spectral Range | 7.5–13 µm |
| Thermal Sensitivity_NETD | <100 mK @ 30°C (86°F) |
| Environmental & Certifications | |
|---|---|
| Corrosion | ASTM B117, salt spray, 5% saline solution in 48 hours and 35°C |
| Drop | 2 m (6.6 ft.) |
| EMC | EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC 47 CFR Part 15 B (emission) |
| Encapsulation | IP 67 (IEC 60529) |
| Humidity [operating and storage] | IEC 60068-2-30, 24 hours, 95% relative humidity, 25–40°C (77–104°F), 2 cycles |
| Magnetic fields | EN 61 000-4-8, test level 5 for continuous field (severe industrial environment) |
| Operating Temperature Range | –10°C to 55°C (14°F to 131°F): infinity 85°C (185°F): 15 minutes 150°C (302°F): 10 minutes 260°C (500°F): 3 minutes |
| Relative Humidity | 95% relative humidity, 25–40°C (77–104°F), non-condensing |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | –40°C to 70°C (–40°F to 158°F) |
| Tripod Mounting | UNC 1/4"-20 |
| Vibration | 2 g (IEC 60068-2-6) |
| Power | |
|---|---|
| Battery capacity | 2.6 Ah at 20–25°C (68–77°F) |
| Battery operating time | Approximately 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li ion |
| Battery voltage | 3.6 V |
| Battery weight | 0.119 kg (0.26 lb.) |
| Charging system | Battery is charged inside the camera or in a dedicated charger |
| Charging Temperature | 0–45°C (32–113°F) |
| Charging Time | 2.5 h to 90% capacity, charging status indicated by LEDs |
| Power Management | Automatic shutdown and sleep mode |
| Safety [power supply] | CE/EN/UL/CSA/PSE 60950-1 |
| Start Up Time | 30 seconds |
| Start_up time from sleep mode | 10 seconds |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±4°C (±7.2°F) or ±4% for ambient temperatures of 10–35°C (50–95°F) |
| Auto Range | Auto, non-selectable |
| Automatic Hot Detection | Heat detection mode (the hottest 20% of the of scene is colorized) |
| Camera size [L x W x H] | 250 mm x 105 mm x 90 mm (9.8 in. x 4.1 in. x 3.5 in.) |
| Camera weight incl battery | 0.7 kg (1.54 lb.) |
| Isotherm | Yes |
| Object Temperature Range | –20°C to 150°C (–4°F to 302°F) 0°C to 500°C (32°F to 932°F) |
| Spot Meter | 1.0 |
| General | |
|---|---|
| Compatible with FLIR software | FLIR Tools® |
| Material | PPSU Silicon rubber Aluminium, cast Flame-resistant magnesium alloy |
| Packaging Size | 323 × 325 × 110 mm (12.7 × 12.8 × 4.3 in.) |
| User Interface | |
|---|---|
| Display | 3 in. LCD, 320 × 240 pixels, backlit |
| Communication & Data Storage | |
|---|---|
| Image Storage | NA |
| Image Storage Capacity | NA |
| Image Storage Mode | NA |
| Interfaces | Update from PC devices |
| USB | USB Micro-B |
Accessories
Resources & Support
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
