M200 V2 Series
UAS Thermal Imaging Kit

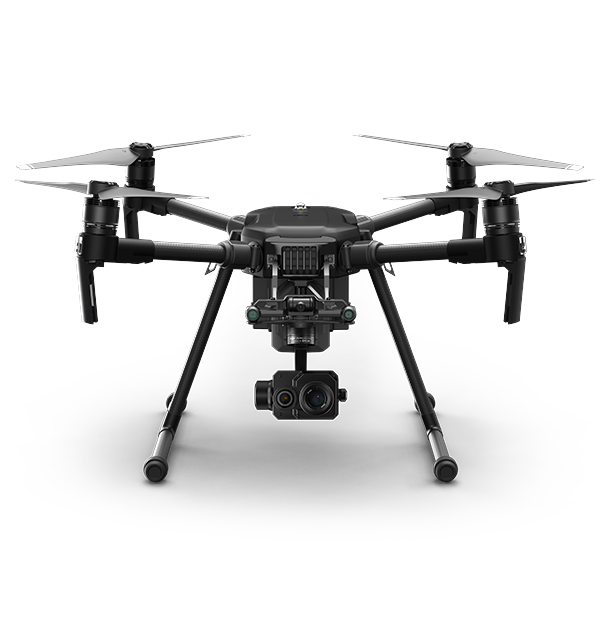

By combining the flight stability, gimbal technology, mobile app integration, and image transmission of the powerful DJI M200 V2 with the industry-leading thermal imaging technology of FLIR, these packages offer you the ultimate solution for reliable, rapidly-deployable aerial thermal imaging.
规格
| Imaging & Optical | |
|---|---|
| Compatible cameras | Zenmuse X4S (included), Zenmuse XT (included), Zenmuse X5S (optional), Zenmuse X30 (optional) |
| Gimbal Mount [IR and Visual] | Single Downward |
| IR Camera | Zenmuse XT V2 |
| IR Sensitivity | <50 mK at f/1.0 |
| Scene Range [high gain] | -13° to 212°F (-25° to 100°C) |
| Scene Range [low gain] | -40° to 1022°F (-40° to 550°C) |
| Thermal Gimbal | Performance IR Camera 336 x 256 Resolution, 6.8 mm (45° x 35° FOV) Lens |
| Thermal Imager | Uncooled Vox Microbolometer |
| Visual Camera Gimbal | DJI X4S 20MP, 4K/60 H.264 4K/30H.265 videos at a 100M bps |
| Measurement & Analysis | |
|---|---|
| Spot Meter | Temperature measured in 4×4 pixel spot |
| Temperature Range | 14° to 104°F (-10° to 40°C) |
| Communication & Data Storage | |
|---|---|
| File Storage | Micro SD Card |
| Photo Video Format Operating | Radiometric JPEG, TIFF, MP4 |
| Power | |
|---|---|
| Aircraft Battery | Qty 2 TB50 (4280 mAh) |
| General | |
|---|---|
| Aircraft Model | DJI M200 |
| Weight | 270 g |
| Accessories | |
|---|---|
| Included Tablet Interface | DJI Crystal Sky Display 7.87" |
| RC Unit 1 included | DJI GL6D10A RC |
| Software | FLIR Tools+ |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
