Discontinued

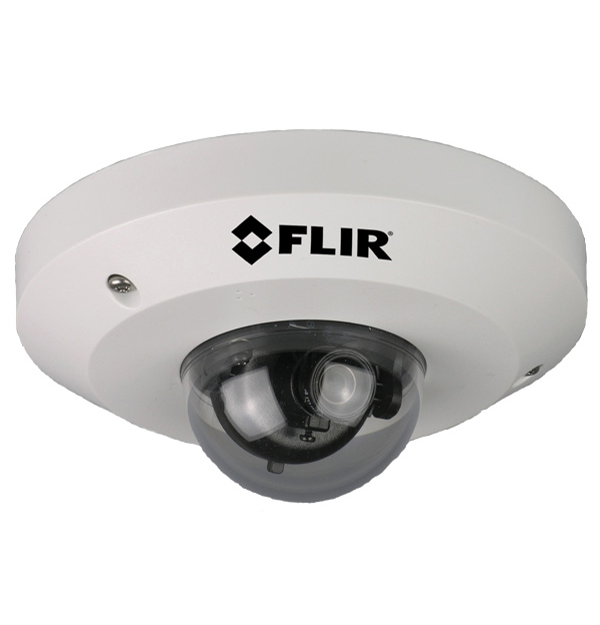

Quasar 1080p Low Profile
规格
| Compliance & Certifications | |
|---|---|
| International | CE marked, EN55022-1998 class A, EN55024, RoHS |
| USA | UL FCC Part 15 (subpart B, class A) |
| Cyber Security | |
|---|---|
| Security | User account and password protection |
| Environmental | |
|---|---|
| Humidity | 95% (non–condensing) |
| Operating Temperature | 0° to 50° C (32° to 122° F) |
| Storage Temperature | –20° to 70° C (–4° to 158° F) |
| General | |
|---|---|
| 3D Noise Reduction | On / Off – 6 levels |
| AES | 1.0 to 1 / 10,000 (auto) |
| Bubble F-Stop | F0.0 - clear bubble |
| Compression | Fully compliant multi–stream H.264 main profile + MJPEG |
| Dimensions | Indoor: 110.2 x 47.7 mm (4.3 x 1.9 in.) |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| Night Mode | Digital night mode |
| Power | 802.3af PoE |
| Power Connection | PoE |
| Power Consumption | 3.5W |
| Privacy Zones | On / Off – 5 zones – 8 colors |
| Scanning Mode | Progressive |
| Tamper Detection | On / Of |
| Unit Weight | 180 g (0.40 lbs.) |
| Warranty | According to DVTEL RMA Policy and Process Notice document |
| PTZ | |
|---|---|
| Pan/Tilt | 160° Pan / 90° Tilt |
| System Integration | |
|---|---|
| Configuration | Remote: via web access or supported video management software |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Network Protocol | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP,HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF Profile S, IEEE 802.1X |
| Supported Web Browser | Internet Explorer 6.0+ |
| Thermal Camera | |
|---|---|
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/2.7" HD 1080 CMOS |
| Sensitivity | 0.5 (color) measured with DSS OFF at 30 IRE |
| Visible Camera | |
|---|---|
| Bandwidth | Configurable between 64Kbps and 8Mbps |
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| Image Sensor | 1/2.7" HD 1080 CMOS |
| Lens Type | 4mm F1.5 / 78° HFOV 2.8mm F2.0 / 110° HFOV |
| Mechanical IR Filter | No |
| Sensitivity | 0.5 (color) measured with DSS OFF at 30 IRE |
| Sensor Resolution | 2.1MP 1920x1080 |
| Signal to Noise Ratio | ±50 dB |
| WDR | On / Off – 3 levels |
| Video & Recording | |
|---|---|
| Maximum Performance | 30fps@HD1080p + 30fps@D1 or 15+15@HD1080p |
| Rate Control | CBR/VBR |
| Resolution Range | Scalable from CIF to HD 1080p |
| SD Card Recording | SDHC/SDXC up to 32GByte |
| Video Motion Detection | Up to 10 independent zones |
