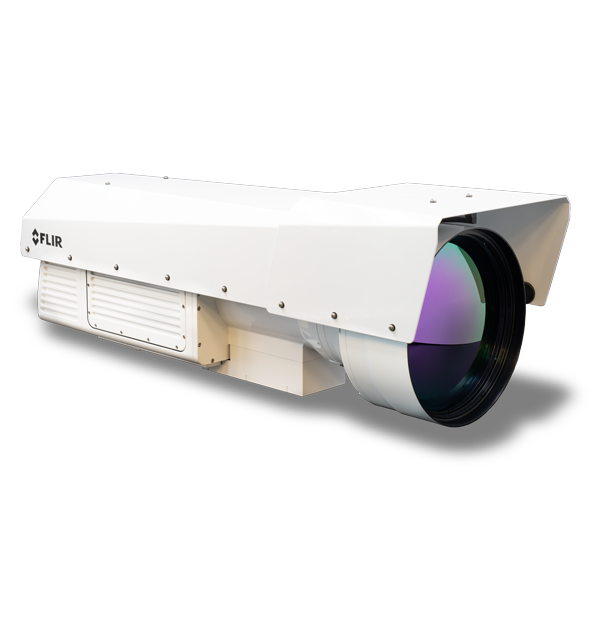

The FLIR RS6780 offers advanced detector, triggering, and synchronization capabilities in an environmentally protected package, making it easy to configure and integrate for successful data acquisition in the most demanding R&D applications. With a three-position motorized filter wheel and continuous metric zoom (CZ) lens, the RS6780 records sharply focused, high-quality thermal images in long-range and tracking applications. The standard 50-250 mm CZ lens can be factory-calibrated for temperature and radiance measurements, allowing researchers to use the radiometric camera system without sacrificing the flexibility of the optics platform.
Capture crisp thermal images of high-temperature targets with 640 x 512 resolution, a three-position filter wheel, and continuous metric zoom lens
Synchronize the camera with external events or instrumentation, control precisely when an image frame is generated with advanced triggering, and embed TSPI-accurate data timestamping
Easily integrate this lightweight system indoors or outdoors – the IP65 weatherproof enclosure provides protection in the harshest environments
FLIR RS6780：适用于国防研究应用的灵活量程和科学热像仪
FLIR RS6780 将 3.0-5.0 μm、640×512 辐射热像仪与连续公制变焦光学元件相结合，这是 Teledyne FLIR 系列科学相机独有的。观看此视频，了解 RS6780 为何成为远程测量与目标跟踪的理想之选。
FLIR RS6780：适用于国防研究应用的灵活量程和科学热像仪
FLIR RS6780：适用于商业应用的测距和科学热像仪
FLIR RS6780：用于国防研究和商业应用的柔性光学器件
规格
| Highlighted | |
|---|---|
| Resolution | 640 × 512 |
| Detector Pitch | 15 µm |
| Spectral Range | 3.0 – 5.0 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Camera f-number | f/4.0 |
| Dynamic Range | 14-bit |
| Frame Rate [Full Window] | Programmable 0.0015 Hz to 125 Hz |
| Integration Time | 480 ns to ~full frame |
| Standard Temperature Range | 0°C to 350°C (32°F to 662°F) |
| Optional Temperature Range | Using ND filters up to 3000°C |
| Focus | Motorized FOV/focus |
| Imaging & Optical | |
|---|---|
| Camera f-number | f/4.0 |
| Detector Pitch | 15 µm |
| Detector Type | FLIR indium antimonide (InSb) |
| Digital Zoom | 1x, Auto (best fit), off |
| Dynamic Range | 14-bit |
| Focus | Motorized FOV/focus |
| Frame Rate [Full Window] | Programmable 0.0015 Hz to 125 Hz |
| Image Time Stamp | Internal precision timestamp, IRIG-B AM decoder, TSPI accurate |
| Integration Time | 480 ns to ~full frame |
| Lens | 50-250 mm continuous metric zoom - low latency metadata (with 3x afocal optional attachment - 150-750 mm) |
| Lens Cover | Optional, motorized |
| On Camera Image Storage | None |
| Operability | ≥99.95% typical |
| Overlay | Customizable (ability to toggle off) |
| Palette | Selectable 8-bit |
| Pixel Clock | 50 MHz |
| Radiometric Data Streaming | Gigabit Ethernet (GigE Vision), CoaXPress Single Link 1.1 |
| Readout Modes | Asynchronous integrate while read, asynchronous integrate then read |
| Readout Type | Snapshot |
| Resolution | 640 × 512 |
| Sensor Cooling | Closed-cycle rotary |
| Spectral Range | 3.0 – 5.0 µm |
| Standard Video | SDI |
| Subwindow Modes | Flexible windowing down to 16 × 4 (steps of 16 columns, 4 rows) |
| Thermal Sensitivity_NETD [typical] | 27 mK typical |
| Video Modes | SDI: 720p@50/59.9, 1080p@25/29.9, 480i@60 Hz, 576i@50 Hz |
| Measurement & Analysis | |
|---|---|
| Accuracy | ≤100°C ±2°C (±1°C typical), >100°C ±2% of reading (±1% typical) |
| Ambient Drift Compensation [with factory cal] | Yes |
| Automatic Gain Control | Manual, Linear, Plateau equalization, DDE |
| Optional Temperature Range | Using ND filters up to 3000°C |
| Standard Temperature Range | 0°C to 350°C (32°F to 662°F) |
| Communication & Data Storage | |
|---|---|
| Command and Control | GigE, CoaXPress (GenICam protocol supported over GigE or CXP), RS-232 |
| Synchronization Modes | Sync In, Sync Out, Tri-Level Sync, IRIG, Lock-In |
| Trigger Mode(s) | Trigger in, header based |
| General | |
|---|---|
| Size (L x W x H) | 544 mm × 177.8 mm × 213.9 mm (21.43 in × 7 in × 8.42 in) - (w/o 3x); 726.44 mm × 243.38 mm × 240.74 mm (28.6 in × 9.582 in × 9.478 in) - (w/3x) |
| Weight | Without 3x afocal - 12.7 kg (28 lb), With 3x afocal - 16.78 kg (37 lb) |
| Power | |
|---|---|
| Power | 24 VDC (<24 W steady state) |
| Environmental & Certifications | |
|---|---|
| IP Rating | IP65 |
| Mounting | 5 × ¼" -20 tapped holes, 2x 3/8" -16 tapped holes |
| Operating Temperature Range | -20°C to 50°C (-4°F to 122°F) |
