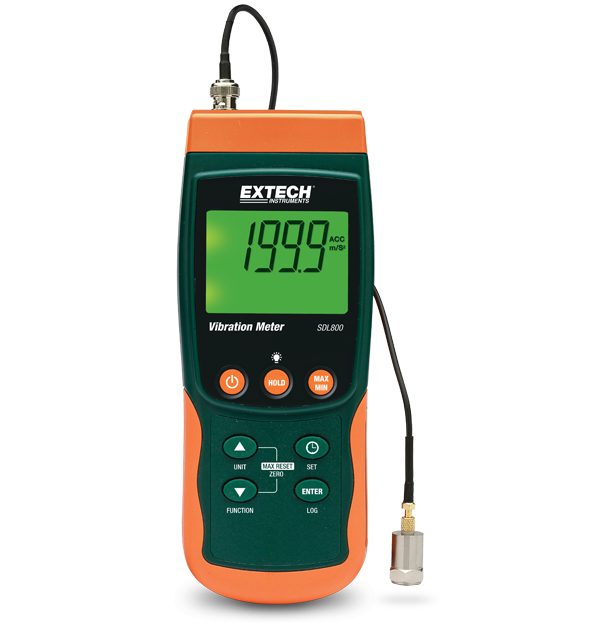

Extech SDL800
Vibration Meter/Datalogger
Product Variations
The SDL800 measures and datalogs vibration using a remote vibration sensor with magnetic adapter on 47.2"(1.2m) cable. It offers a wide frequency range of 10Hz to 1kHz with basic accuracy of ±(5% + 2 digits). Manually store 99 readings or continuously datalog using a SD memory card, which allows user to easily transfer collected data to a PC for further analysis as an Excel format. Complete with remote sensor, magnetic mount, 6 x AA batteries, SD card, and hard carrying case.
规格
| General | |
|---|---|
| Acceleration | 656ft/s², 200m/s², 20.39g |
| Acceleration Basic Accuracy | ±(5% of reading + 2 digits) |
| Acceleration Max Resolution | 1ft/s², 0.1m/s², 0.01g |
| Displacement | 0.078in, 2mm (peak-to-peak) |
| Displacement Basic Accuracy | ±(5% of reading + 2 digits) |
| Displacement Max Resolution | 0.001in, 0.001mm |
| Memory | 20M data records using 2G SD card |
| Velocity | 7.87in/s, 200mm/s, 19.99cm/s |
| Velocity Basic Accuracy | ±(5% of reading + 2 digits) |
| Velocity Max Resolution | 0.01in/s, 0.1mm/s, 0.01cm/s |
| Additional Details | |
|---|---|
| Certifications | SDL800-NIST_S: CE, NIST SDL800_S: CE |
| Dimensions | 7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 3 years |
| Weight | 21.1oz (599g) |
