ThermiCam2
The World’s First Integrated Thermal Traffic Detector

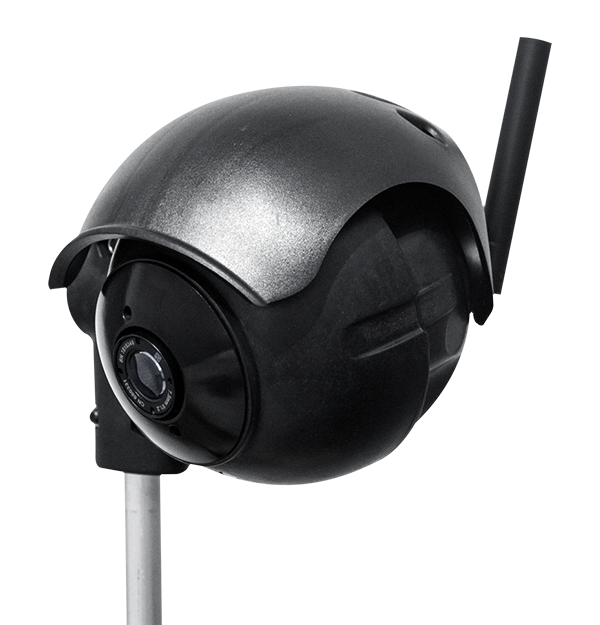

ThermiCam2 is an integrated thermal sensor and detector for vehicle, vulnerable road user, and wrong-way driver detection. ThermiCam2 does not need light to operate, and instead uses the thermal energy emitted from road users. This enables the sensor to detect vehicles and vulnerable road users at night, over long distances, and in harsh weather conditions. The ThermiCam2 offers 24/7 traffic detection for a wide range of applications.
Specifications
| System Overview | |
|---|---|
| Detection Functionalities | Vehicle and bicycle presence detection, vehicle and bicycle counting, pedestrian presence detection, pedestrian counting, traffic data collection, traffic flow monitoring, wrong way driver detection (requires extra license) |
| Functionality | Vehicle presence, Bicycle presence, Vehicle and bicycle counting, Pedestrian presence, Traffic data, wrong-way driver detection |
| Number Detection Zones | 24 vehicle presence zones \ 8 bicycle presence regions \ 8 pedestrian zones \ 6 traffic data zones \ 6 wrong way driver zones |
| Communications | |
|---|---|
| Compression | H.264, MPEG-4, MJPEG |
| SDLC | Up to 16 output channels via TI BPL2 EDGE interface (PN 10-7013) and Port-1 Interface Module (PIM) |
| Setup Commands | Web interface |
| Traffic monitoring [event and data reporting] | TMS FLUX. Public API for 3rd party integration. |
| Electrical | |
|---|---|
| Contact Closures | 2 direct, 4 via TI BPL2 EDGE interface (PN 10-7013), extra via 4I/O USB expansion board(s) (PN 10-467 |
| Current Consumption | < 230 mA @ 24VDC (< 320mA @ 24VDC peak at startup) |
| Detection Distance | ThermiCam2 690: 2-30 m / 6-100 ft ThermiCam2 645: 10-75 m / 32-245 ft ThermiCam2 632: 15-90 m / 100-300 ft ThermiCam2 390: 1-25 m ThermiCam2 345: 5-50 m ThermiCam2 335: 15-75 m ThermiCam2 325: 30-90 m ThermiCam2 317: 45-120 m |
| FCC | FCC part 15 Class A |
| Input Power | ThermiCam2 317, ThermiCam2 325, ThermiCam2 335, ThermiCam2 345, ThermiCam2 390, ThermiCam2 690: 24-42 VAC, 24-48 VDC ThermiCam2 632, ThermiCam2 645: 12-42VAC, 12-60VDC |
| PoE | For communication of output state events, configuration & monitoring (streaming video) |
| Power Consumption | ThermiCam2 317, ThermiCam2 325, ThermiCam2 335, ThermiCam2 345, ThermiCam2 390, ThermiCam2 690: Avg 10.5 W
Peak 15 W ThermiCam2 632, ThermiCam2 645: < 5.5W (< 7.5W peak at startup) |
| Environmental | |
|---|---|
| EU Directives | EMC 2014/30/EU, RoHS 2011/65/EU |
| Materials | All weatherproof (UV-resistant) |
| Protection Grade | Housing = IP68, Connectors = IP67 |
| Shock and Vibration | NEMA TS2 |
| Temperature Range | NEMA TS2. From -34°C to +74°C (-29°F to 165°F) |
| Imaging & Optical | |
|---|---|
| Field of View | ThermiCam2 317: Horizontal: 17° Vertical: 13° ThermiCam2 325: Horizontal: 25° Vertical: 19° ThermiCam2 335: Horizontal: 35° Vertical: 27° ThermiCam2 345: Horizontal: 45° Vertical: 35° ThermiCam2 390: Horizontal: 90° Vertical: 69° ThermiCam2 632: Horizontal: 32° Vertical: 26° ThermiCam2 645: Horizontal: 45° Vertical: 35° ThermiCam2 690: Horizontal: 90° Vertical: 69° |
| Frame Rate | 30 FPS |
| Resolution | ThermiCam2 317, ThermiCam2 325, ThermiCam2 335, ThermiCam2 345, ThermiCam2 390: QVGA ThermiCam2 632, ThermiCam2 645, ThermiCam2 690: VGA (640×480) |
| Type | Long wave Infrared (7 – 14 µm) |
| Mechanical | |
|---|---|
| Dimensions [incl mounting bracket] | Vertically mounted 45 cm x 16 cm x 12 cm (9.8 in x 6.3 in x 4.7 in) / Horizontally mounted 41 cm x 18 cm x 12 cm (16.2 in x 7.1 in x 4.7 in) |
| Material | Aluminum |
| Sunshield | Integrated |
