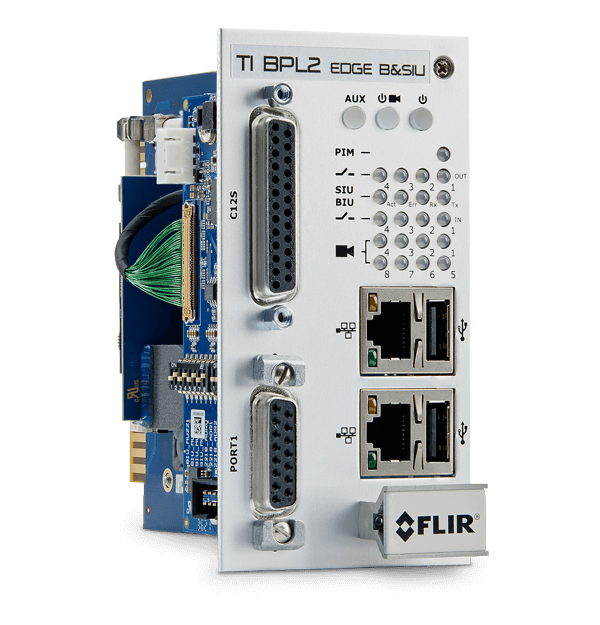

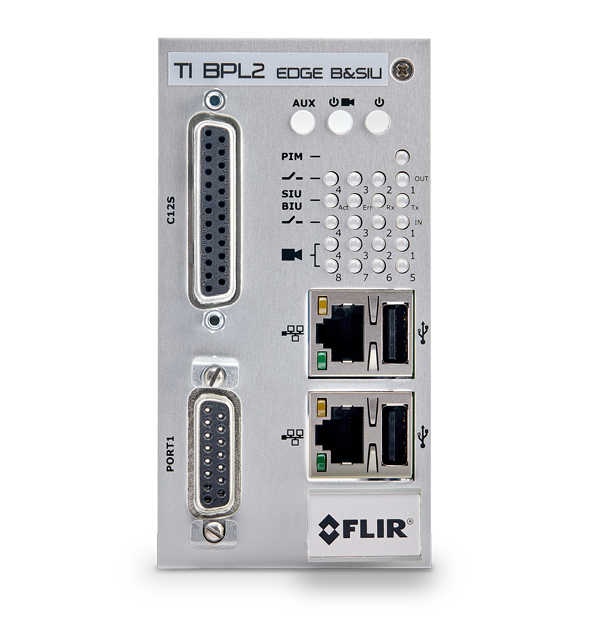

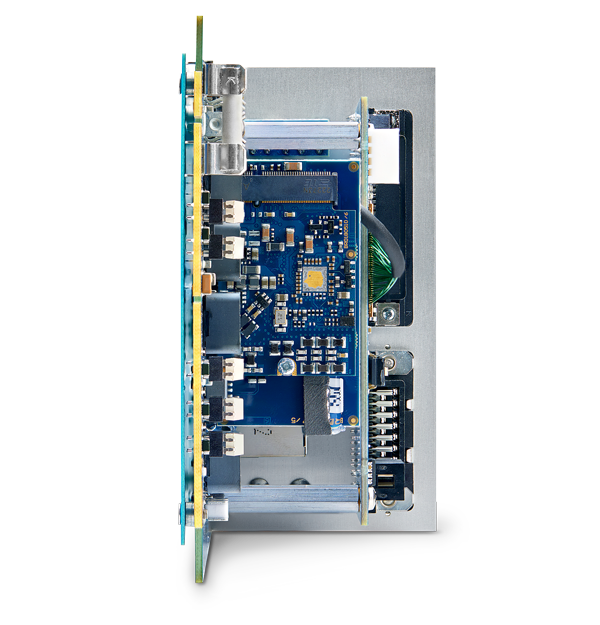

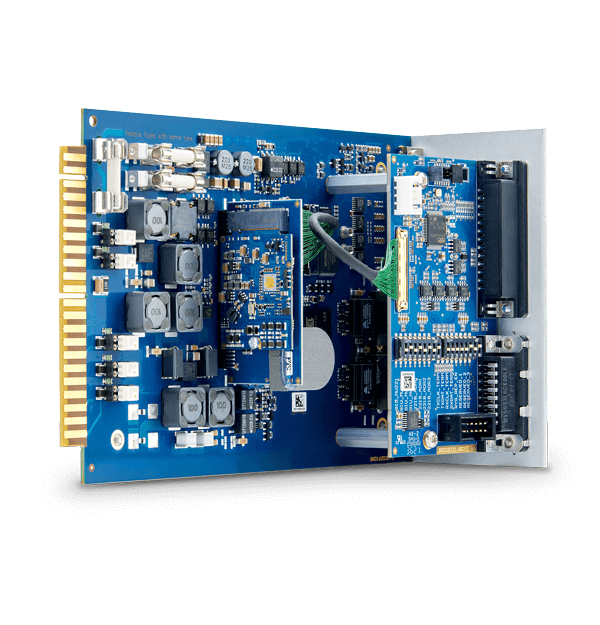

TI BPL2 EDGE B and SIU INTERFACE
2nd Generation Broadband Over Power Line Edge Interface
• Connects zone outputs from BPL2 sensors and/or Power Line (PL) sensors to a controller, providing power and communications to BPL2 sensors and/or PL sensors
• Connects PC to the BPL2 sensors and/or PL sensors for system configuration & viewing
• Maximum number of cameras: Four BPL2 or PL sensors
• Compatible BPL2 Sensor(s): ThermiCam2, TrafiCam X-Stream2, TrafiSense 2
• Compatible PL Sensor(s): TrafiOne
• Recommended maximum of up to four BPL2/PL sensors
Specifications
| Communications | |
|---|---|
| Connector | Cable BPL2 Sensor – Interface: 3 × wires via clamps (back): 2 × wires for DC power & communication: broadband over power line (BPL) and 1 × wire for functional earth Interface Mounting: EDGE-rack mountable |
| Ethernet | 2 × RJ45 Ethernet connectors (10/100 Mbit/s auto switching) |
| Input | C12S connector available on the front for SIU to ATC controller 4 × optical coupled dry contacts via EDGE connector (back, pins F/H, W/X, S/T, Y/Z) Imax = 50 mA, Umax = 48 V DC Close on event or open on event (setting in software) 4 × output LEDs (front, green) Detection output 1 to 4 and common detection output 1 to 4 4 × input contacts via EDGE connector (back, pins 1, 2, 3, 10) 4 × input LEDs (front, green) Note: maximum 20 extra detection outputs can be added via maximum five 4 I/O USB units |
| Output | Detection Outputs: 64 × output states via Port-1 connector (front, SDLC) to TS-2/ATC controller Error Outputs: 1 × optical isolated switch component via EDGE connector (back, pins J/K) - Imax = 50 mA, Umax = 48 V DC Open on event (hardware output) 8 × BPL2 sensor status LEDs (front, bicolor green/red) Error output and common error output Function of Error Output: Error output active = error in TI BPL2 EDGE B&SIU or power supply down, or Error output active = error in 4 I/O USB with output(s) assigned (e.g. no communications), or Error output active = error in corresponding BPL2 sensor (e.g. no communications) |
| Electrical | |
|---|---|
| Power | Power IN: 12 V DC to 60 V DC, via EDGE connector (back, pins A/B, polarity sensitive), power button and LED (front, bicolor green/red) Separate 24VDC to 48 V DC via EDGE connector (back, pins D/E) for BPL2 sensors Note: 48 V DC on pins D/E recommended when multiple BPL2 sensors and/or long cable distances Power OUT: Idem power IN, via EDGE connector (back, pins P/R, polarity insensitive) Note: BPL2 communications to BPL2 sensors added at interface level) Power Consumption: Interface only: typical ≤5 W (6 W peak at start-up) Maximum, interface with periphery: <100 W @ 24 V DC Current Consumption: Interface only: typical ≤210 mA @ 24 V DC Maximum, interface with periphery: <4 A @ 24 V DC |
| Environmental | |
|---|---|
| Operating Temperature Range | NEMA II specs: -34°C to 74°C (-29.2°F to 165.2°F) |
| Shock and Vibration | FCC: FCC Part 15 class B Shock & Vibration NEMA II specs |
| Mechanical | |
|---|---|
| Dimensions | H × W × D: 115 mm × 59 mm × 191 mm (4.53 in × 2.32 in × 7.52 in) Standard US EDGE rack height & depth; width = double slot |
| Weight | 450 g (1 lb) |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
