TrafiSense Dual AI

Premium Dual Sensor Solution with Embedded AI Deep Learning

Product view 1

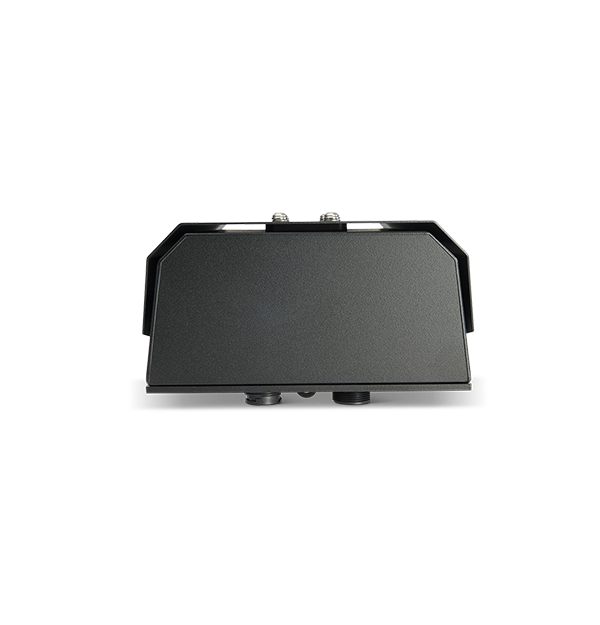

Product view 2

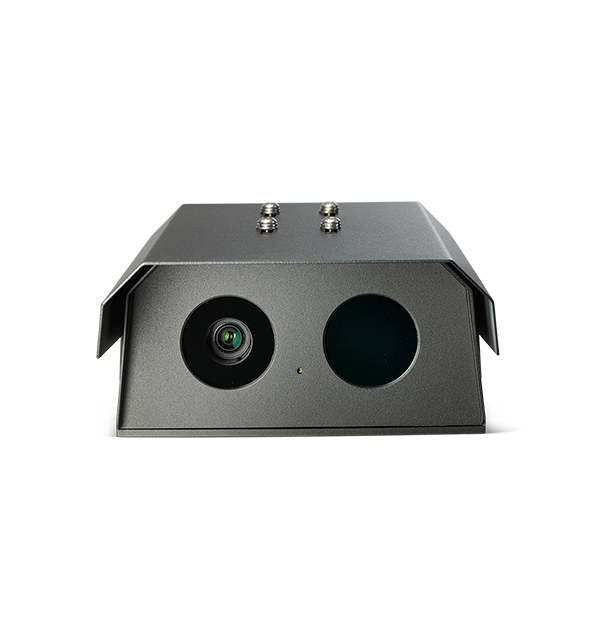

Product view 3

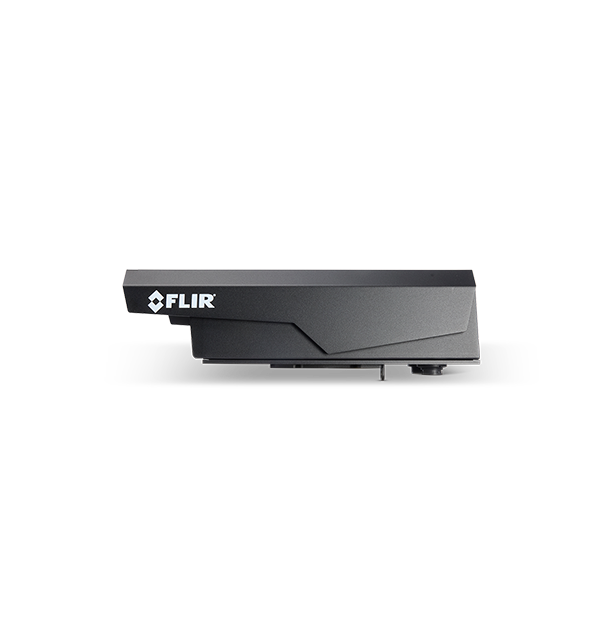

Product view 4
Product view 5

TrafiSense Dual AI combines best-in-class thermal and visual imaging technology with advanced, deep learning-enabled video analytics for safe, reliable classification of road users. This next-generation solution features FLIR’s proven traffic video analytics for advanced intersection control—now improved with deep learning and patented 3D tracking capabilities. Capable of tracking multiple objects, effectively controlling intersections, and gathering detailed traffic data to integrate with Acyclica, TrafiSense Dual AI sets a new standard for developing safer, more efficient cities.

Accurately tracks position, speed, and direction of multiple vehicles using integrated, edge-based AI deep learning
Detects vulnerable road users and vehicles through thermal imaging, even in challenging lighting and weather conditions
Generate sophisticated reports with Acyclica, including heatmaps and turning movement counts, to identify bottlenecks.

Specifications

Systemübersicht
Detection Functionalities Bedingte Fahrzeugpräsenz für jede Klasse
Anzahl
der Drehbewegungen Warteschlangenbelegung
falscher Weg Fahrer
PSH (Position, Geschwindigkeit und Überschrift) - optionale API-Lizenz
ETA (geschätzte Ankunftszeit)
Kommunikation
Outputs 1x NEIN, 1x NC
Elektrik
Power Consumption 17 W Heizung aus (Normalbetrieb); 22 W Heizung ein
Umgebungsfaktoren
Humidity 0 bis 100 %, nicht kondensierend
Operating Temperature Kontinuierlich: -40 °°C bis 74 °°C/-40 °°F bis 165 °°F (Regal, Lufttemperatur)
Shock_vibration Gemäß NEMA TS2
Bildgebung und optische Daten
Detector Type Focal Plane Array (FPA), ungekühlter Vanadiumoxid-Mikrobolometer
Effective Pixels 3840 × 2160 , 8 MP (4K)
Focal Length 6 mm bis 22 mm
Image Sensor 1/1,8 Zoll CMOS
Spectral Range 7,5 bis 13,5 µm
Thermal Resolution 640 × 512 (schnell)
Mechanik
Bracket Kombinierte Wand/Stange/Decke/gebogene Wand; kompatibel mit handelsüblichen (Pelco) Halterungen

Resources & Support

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
