VS80 Kits

High-Performance Videoscope

Product Variations
Product view 1
Product view 2
Product view 3
Product view 4
Product view 5
Product view 6
Product view 7

The Flir VS80 is a versatile, professional videoscope that you can rely on when inspecting locations that are difficult or unsafe to access. The wide range of unique compatible probes* with waterproof (IP67) camera tips give you flexibility for virtually any type of inspection. Options include: a 160 × 120 thermal camera, 2-way and 4-way articulating visual camera, 30 m plumbing spool with 512 Hz sonde probe locator, HD camera, and dual HD camera probe.

With one or more of the VS80 videoscope probes, you can perform a wide range of inspections, including industrial equipment maintenance, HVAC/R, building, and automotive applications. Easily maneuver the narrow camera probes into small openings and tight spaces, and view sharp, vivid images and videos from the large, 7-inch touchscreen display. Using the Flir Meterlink® Mobile app from a mobile device, you can view live images and video from the VS80, download saved files, and share them easily with customers or colleagues.

Choose a complete kit or purchase the VS80 display and camera probes separately.

了解 Flir VS80 高性能视频内窥镜的优势

Inspect hard-to-reach components without disassembling equipment
Choose from 7 small-diameter probe options to inspect places your old videoscope cannot
Capture still images and video, record voice annotations, add text notes to saved images, and share findings with team members

FLIR METERLiNK 应用

Flir Meterlink应用程序使您能够同时监测各种环境和电气状况，同时能够连接多达7台FLIR兼容仪表。借助 Meterlink，您可以安全地捕获图像并远程实时监控危险区域。无论您连接一个还是多个 Flir 测试和测量产品，您都可以密切关注设施周围的关键读数，并轻松与您的团队分享。

规格

Highlighted

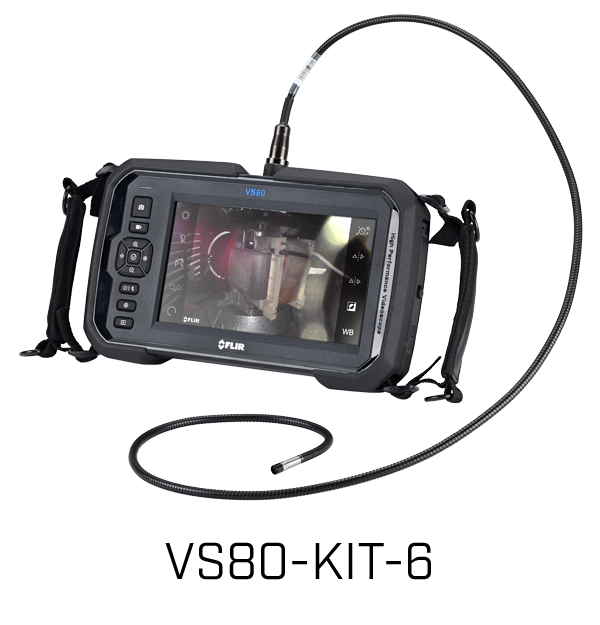

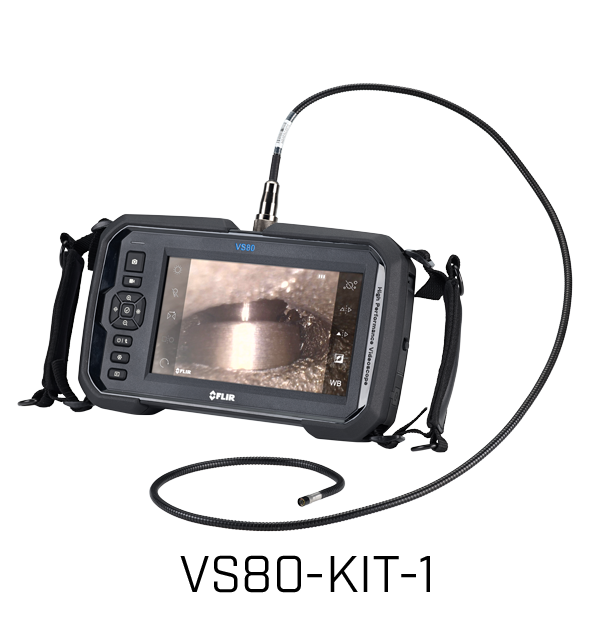

Diameter VS80-KIT-1, VS80-KIT-6: 5.5 mm

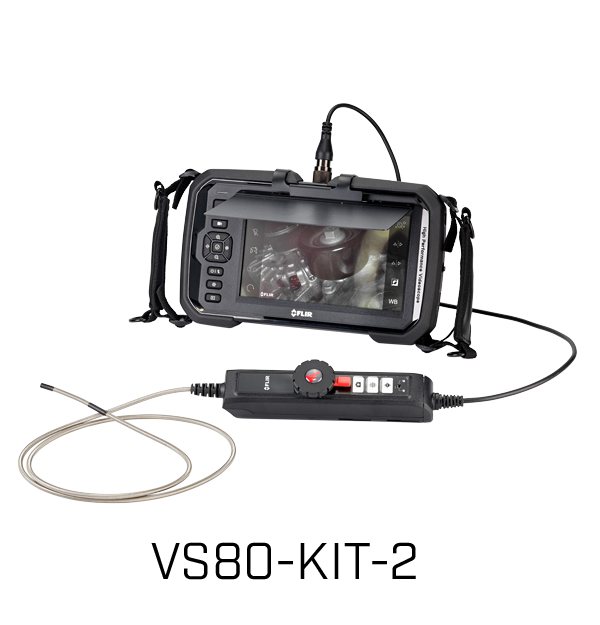

VS80-KIT-2: 4.5

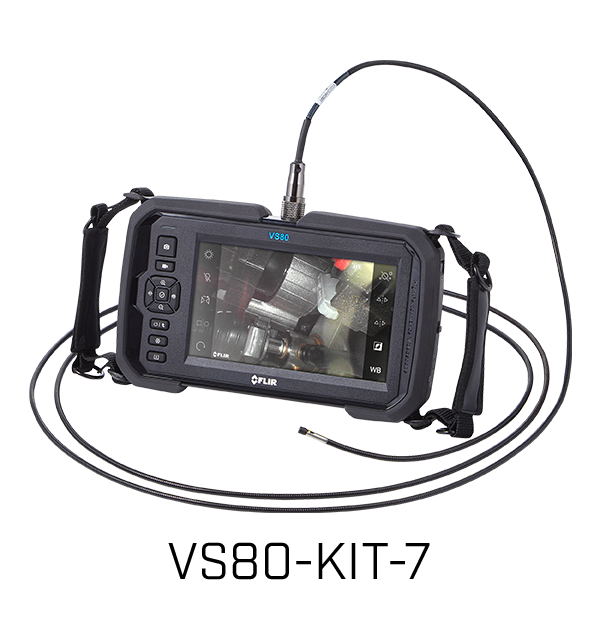

VS80-KIT-3, VS80-KIT-7: 4.9 mm
VS80-KIT-5: 10 mm

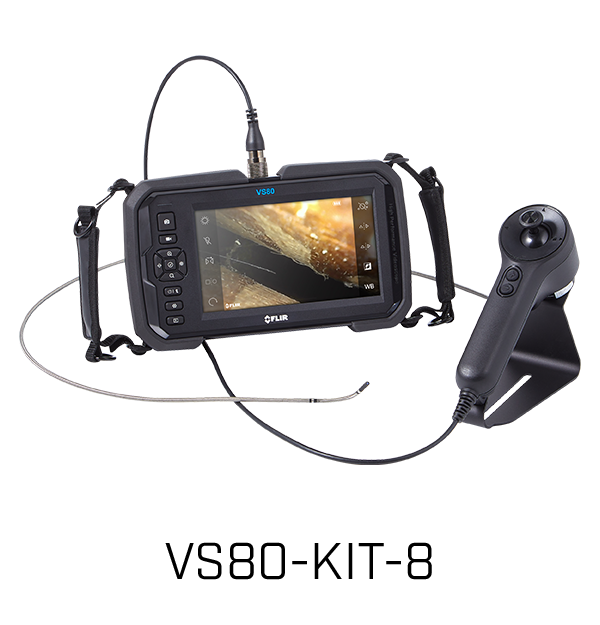

VS80-KIT-8: 3.9 mm

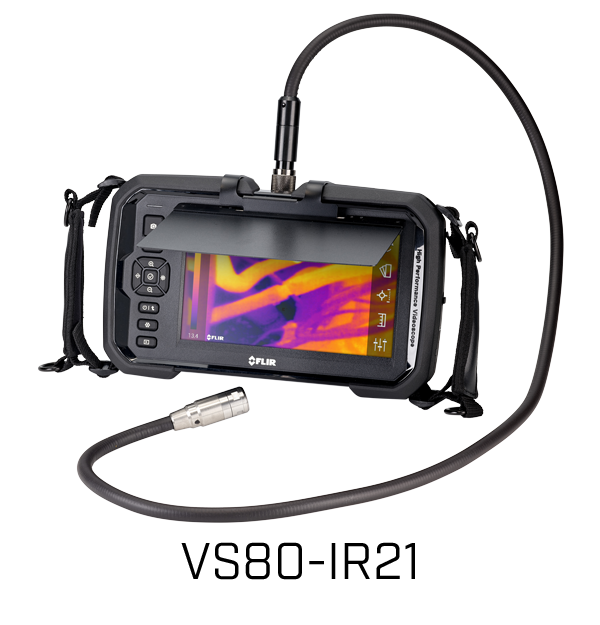

VS80-IR21: 19 mm
Display resolution VS80-IR21: Camera probe: 160 × 120 IR Screen resolution 1024 × 600
VS80-KIT-1, VS80-KIT-2, VS80-KIT-4, VS80-KIT-5: Camera probe: 640 × 480 Screen resolution 1024 × 600
VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: Camera probe: 1280 × 720 Screen resolution 1024 × 600
Imaging & Optical
Color Palettes Iron, rainbow, grayscale, below alarm, above alarm
Depth of Field 10 mm to infinity
Diameter VS80-KIT-1, VS80-KIT-6: 5.5 mm
VS80-KIT-2: 4.5
VS80-KIT-3, VS80-KIT-7: 4.9 mm
VS80-KIT-5: 10 mm
VS80-KIT-8: 3.9 mm
VS80-IR21: 19 mm
Display resolution VS80-IR21: Camera probe: 160 × 120 IR Screen resolution 1024 × 600
VS80-KIT-1, VS80-KIT-2, VS80-KIT-4, VS80-KIT-5: Camera probe: 640 × 480 Screen resolution 1024 × 600
VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: Camera probe: 1280 × 720 Screen resolution 1024 × 600
Field of View VS80-IR21: 71°
VS80-KIT-1, VS80-KIT-2, VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: 90°
VS80-KIT-4, VS80-KIT-5: 87.1°
Frame Rate 8.7 Hz
Measurement & Analysis
Object Temperature Range -10°C to 400°C (14°F to 752°F)
Spot Meter Centre spot, hot spot, cold spot, no measurement
Communication & Data Storage
Video/Image Transfer SD Card, USB, Wireless (Wi-Fi)
Power
Battery VS80: Li-Ion 3.6 V (internal)
Battery life 8 hrs
General
Probe Length VS80-IR21, VS80-KIT-1, VS80-KIT-2, VS80-KIT-3, VS80-KIT-6: 1 m
VS80-KIT-4, VS80-KIT-8: 2 m
VS80-KIT-7: 3 m
VS80-KIT-5: 25 m
Environmental & Certifications
Certifications IC, CE, FCC, UKCA, RCM
Warranty 3 years

附件

  1. VS80 Videoscope Screen
  2. VS80-LCT-1
  1. VS80C30HD-30RM
  1. VS80 4-way Articulating Camera Probe (VS80A4-60-2RM)
  2. VS80 Plumbing Spool and Camera Probe (VS80C10-25RM)
  3. VS80 Dual HD Camera Probe (VS80C2HD-49-3RM)
  4. VS80 IR Thermal Camera Probe (VS80CIR-21)
  5. VS80 HD Camera Probe (VS80CHD-55-1RM)
  6. VS80 Camera Probe (VS80C55-1RM)
  7. VS80 2-Way Articulating Camera Probe (VS80A2-45-1RM)
  8. VS80 4-way Articulating Camera Probe (VS80A4HD-39-2RM)
