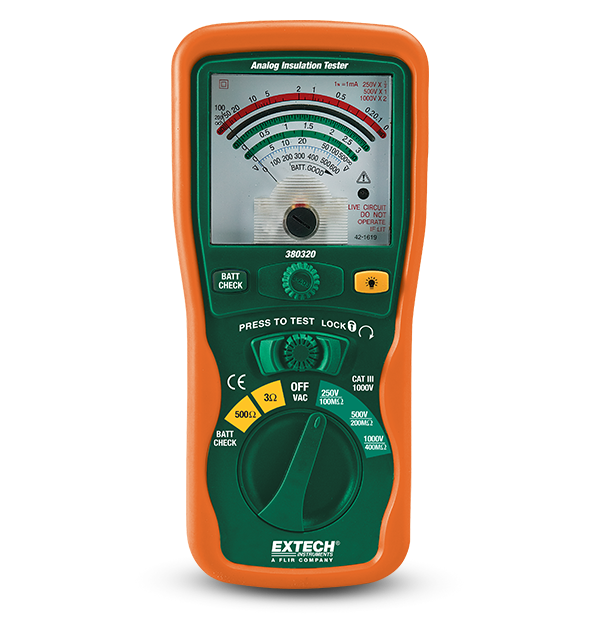

The Extech 380320 is an Analog Insulation Tester with a large, easy to read analog display. It features a live circuit warning which displays the actual AC voltage measurement. It also includes an automatic discharge circuit, lock power on feature for extended test times, and insulation resistance up to 400 MΩ. Complete with heavy duty test leads, alligator clip test lead, 6 AA batteries, hanging strap, and hard carrying case.
Spécifications
| Spécifications générales | |
|---|---|
| Continuité | 3Ω |
| Précision de base de la continuité | ±3% of scale |
| Précision de base de la tension CA | ±5% of scale |
| Précision de la résistance à l’isolation | ±5% of scale |
| Résistance | 1 to 500Ω |
| Résistance d'isolation | 0 to 100MΩ, 0 to 200MΩ, 0 to 400MΩ |
| Tension CA | 0 to 600V |
| Tension d’essai de l’isolation | 250V, 500V, 1000V |
| Détails supplémentaires | |
|---|---|
| Alimentation | 6 × AA (1.5V) batteries |
| Catégorie de sécurité | CAT III-1000V |
| Certifications | CE |
| Dimensions | 7.9 × 3.6 × 2" (200 × 92 × 50mm) |
| Garantie | 2 years |
| Poids | 1.2lb (546g) |
| Écran | Analog |
Resources & Support
User Manual
Manuel d’utilisation de la Extech 380320
User Manual
Extech 380320 User Manual GB
User Manual
Extech 380320 User Manual
Certification
Extech 380320 Declaration of Conformity
Datasheet
Extech 380320 Datasheet
