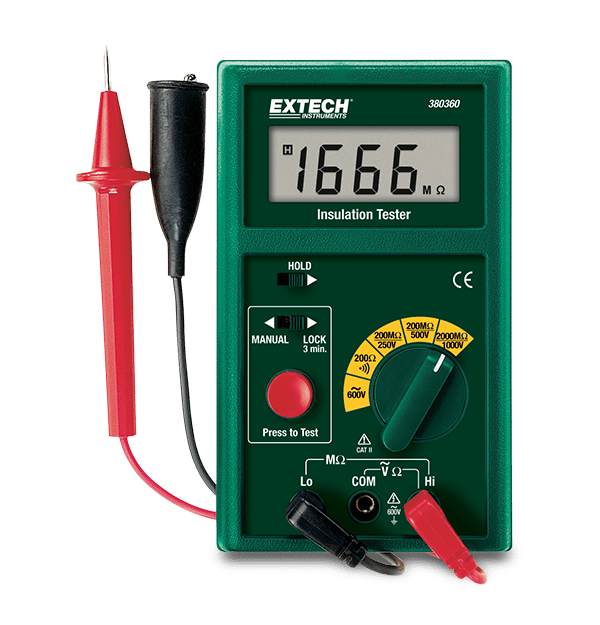

Extech 380360
Digital Megohmmeter
The Extech 380360 is a 1000 V Megohmmeter with an automatic 3 minute test. It has three test voltages of 250 V, 500 V and 1000 V, plus insulation resistance up to 2000 MΩ. Automatic discharge when the safety "Press to Test" button is released. Complete with 6 AA batteries, heavy duty 0.8 m (2.5 ft) test leads, alligator clip, large probe, and case with neck strap.
Spécifications
| Spécifications générales | |
|---|---|
| Continuité | <100Ω |
| Courant de court-circuit de sortie | 1.5 mA 0.3-0.5 mA |
| Faible résistance | 200Ω |
| Protection contre les surcharges | 2200V (< 1 min) |
| Précision de base de la faible résistance | 1% of reading |
| Précision de base de la tension CA | 0.8% of reading + 3 digits |
| Précision de la résistance à l’isolation | <1000MΩ (3% of reading + 5 digits), >1000MΩ (5% of reading + 5 digits) |
| Résistance | 20/200Ω |
| Résistance d'isolation | 200M, 2000MΩ |
| Tension CA | 600V |
| Tension d’essai de l’isolation | 250V, 500V, 1000V |
| Détails supplémentaires | |
|---|---|
| Alimentation | 6 × AA (1.5V) batteries |
| Catégorie de sécurité | CAT II-600V |
| Certifications | CE |
| Dimensions | 3.8 × 6.3 × 2.3" (97 × 160 × 58mm) |
| Garantie | 2 years |
| Poids | 13oz (369g) |
| Écran | Segment LCD |
