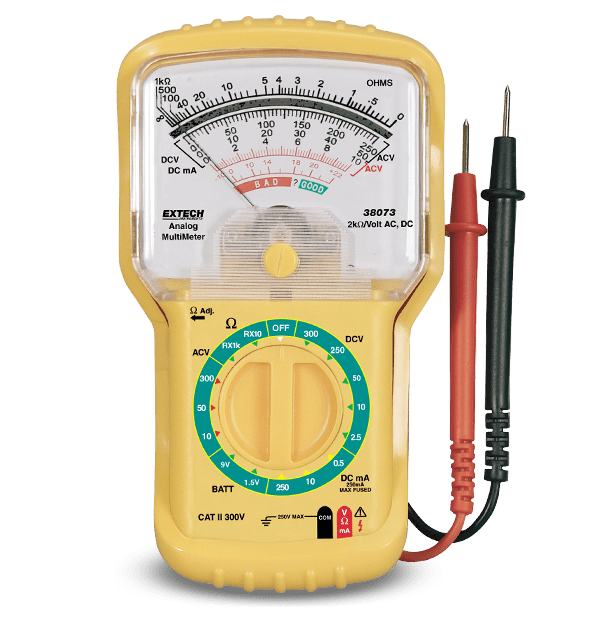

Extech 38073
Mini Analog MultiMeter
Extech’s 38073 Mini Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size. This compact multimeter is equipped with measurement capabilities that are perfect for a electrical hobbyist, electronics tinkerer, home DIYer, and shadetree mechanic. Useful for illustrating adjustments made to a circuit between relative high and low settings, this meter can be used to perform basic troubleshooting on anything connected to an outlet. Complete with protective holster, test leads, and one 1.5 V AA battery.
Spécifications
| Spécifications générales | |
|---|---|
| Courant CC | 0.5mA, 10mA, 250mA |
| Décibel | -10 to 56dB (0dB, 1mW, 600Ω) |
| Précision de base de la tension CA | ±5% full scale |
| Précision de base de la tension CC | ±5% full scale |
| Précision de base du courant CC | ±5% full scale |
| Résistance | 10kΩ, 1MΩ |
| Tension CA | 10V, 50V, 300V |
| Tension CC | 2.5V, 10V, 50V, 250V, 300V |
| Test de la batterie | 1.5V and 9V |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × AA (1.5V) battery |
| Catégorie de sécurité | CAT II-300V |
| Certifications | CE |
| Dimensions | 3.5 × 6.1 × 1.9" (88 × 155 × 49mm) with holster |
| Garantie | 2 years |
| Poids | 8.2oz (288g) with holster and test leads |
| Écran | Analog |
Resources & Support
User Manual
Extech 38073 User Manual
Certification
Extech 38073 Declaration of Conformity
Datasheet
Extech 38073 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
