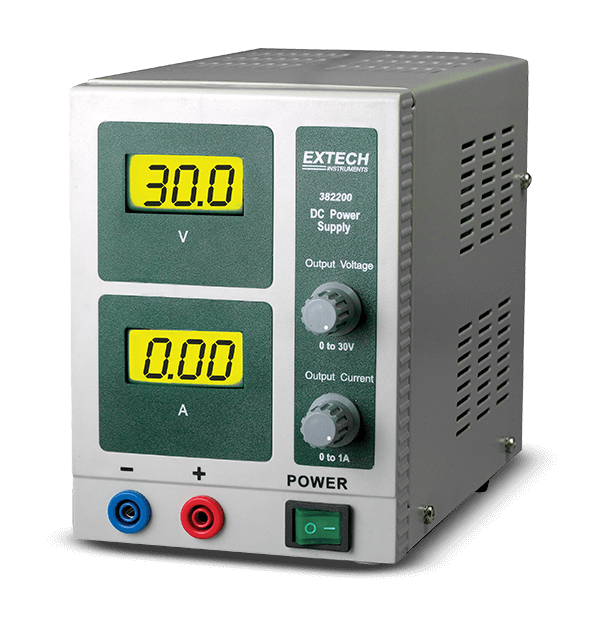

Extech 382200
Alimentation CC à sortie unique 30 V/1 A
Alimentation numérique CC à tension/courant constant(e) avec double écran ACL
Spécifications
| Spécifications générales | |
|---|---|
| Line Current Regulation | <0,2 % + 3 mA |
| Line Voltage Regulation | <0,01 % + 3 mV |
| Load Current Regulation | <0,2 % + 3 mA |
| Load Voltage Regulation | <0,01 % + 2 mV |
| Output Current | 0 à 1,00 A CC |
| Output Current Basic Accuracy | ± 2 % du relevé |
| Output Voltage | 30,0 VCC |
| Output Voltage Basic Accuracy | ± 1,5 % du relevé |
| Ripple and Noise | <0,5 mV/< 3 mA |
| Détails supplémentaires | |
|---|---|
| Dimensions | 240 × 108 × 154 mm (9,4 × 4,25 × 6 po) |
| Power | 115 V/230 V; 50/60 Hz |
| Warranty | 2 ans |
| Weight | 2 kg (4,4 lb) |
Resources & Support
Certification
Extech 382200 Declaration of Conformity
User Manual
Extech 382200 382202 User Manual
Datasheet
Extech 382200-382202 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
