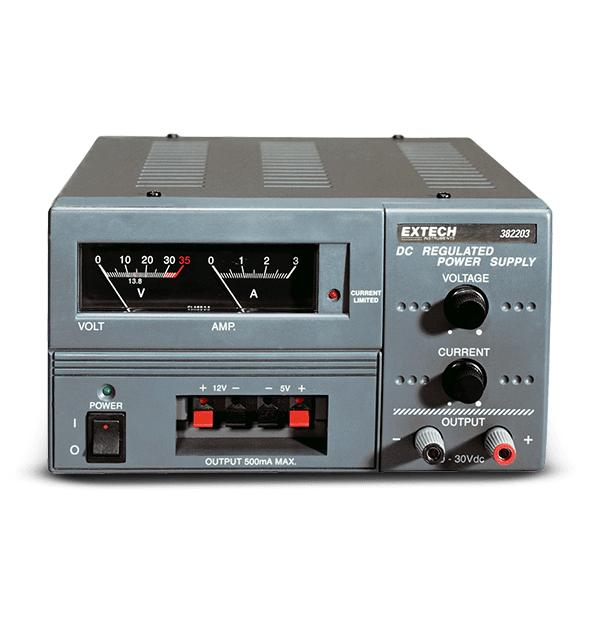

Extech 382203
Analog Triple Output DC Power Supply
The Extech 382203 is an Analog Triple Output DC Power Supply with overload and short circuit protection. Featuring constant voltage and current supply, the 382203 has a current limiting, front panel, LED indicator and binding post terminals for variable supply. Complete with power cord.
Spécifications
| Spécifications générales | |
|---|---|
| Courant de sortie | 0 to 3A DC |
| Ondulation et bruit | <5mV |
| Régulation de la tension de charge | <0.05%+10mV |
| Régulation de la tension de ligne | <0.05%+10mV |
| Sorties fixes | 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max) |
| Tension de sortie | 0 to 30V DC |
| Détails supplémentaires | |
|---|---|
| Alimentation | 110/220VAC 50/60Hz |
| Certifications | CE |
| Dimensions | 6 × 5.6 × 9.5" (152 ×142 × 242) |
| Garantie | 2 years |
| Poids | 11lbs. (5kg) |
Resources & Support
User Manual
Manuel d’utilisation de la Extech 382203 382213
Datasheet
Extech 382203-382213 Datasheet
User Manual
Extech 382203 382213 User Manual
