Discontinued

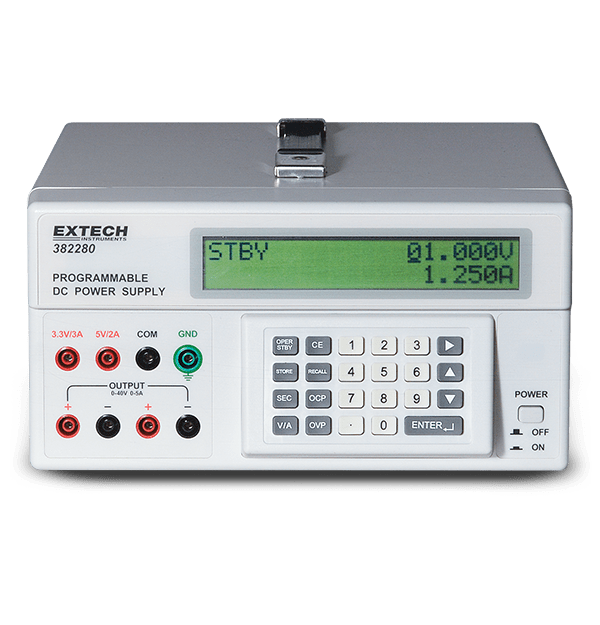

Extech 382280
Precision with Programmable 200 Watt Output DC Power Supply
The Extech 382280 is a Programmable 200 Watt DC Power Supply that has an adjustable 40 V/5 A output, plus two fixed outputs (5 V/2 A and 3.3 V/3 A) and memory for 200 setups. It features high stability with low ripple and noise, 0 to 60 second programmable overload delay timer, selectable constant current/constant voltage, and a bi-directional PC interface that allows setup and read back using virtually any PC communications program.
Spécifications
| Spécifications générales | |
|---|---|
| Courant de sortie | 0 to 5A |
| Ondulation et bruit | Voltage (mVrms): 3mV Current (mArms): 3mA |
| Précision de base de la tension de sortie | 0.05% ± 9mV |
| Précision de base du courant de sortie | 0.2% ± 9mA |
| Résolution maximale de la tension de sortie | 1mV |
| Résolution maximale du courant de sortie | 1mA |
| Sorties fixes | 5V/2A, 3.3V/3A |
| Tension de sortie | 0 to 40V |
| Détails supplémentaires | |
|---|---|
| Alimentation | 110 or 220VAC, 50/60Hz |
| Certifications | CE |
| Dimensions | 12.2 × 9.9 × 5.3" (310 × 250 × 135mm) |
| Garantie | 2 years |
| Poids | 8.4lbs (3.8kg) |
Ressources et assistance
User Manual
Manuel d’utilisation de la Extech 382280
Datasheet
Extech 382280 Datasheet
User Manual
Extech 382280 User Manual GB
Export Restrictions
