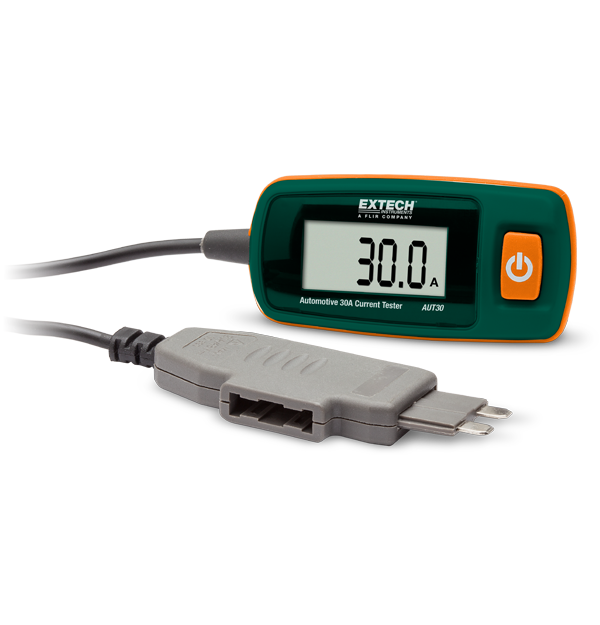

Extech AUT30
30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT30 Current Tester. ATC blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD. Includes 75 cm (29.5 in) connector cable.
Spécifications
| Spécifications générales | |
|---|---|
| Courant CC | 0 to 30A DC |
| Distance de détection | <0.2" |
| Longueur du câble | 71cm (2.3 ft.) |
| Précision de base du courant CC | 10mA |
| Résolution maximale du courant CC | ±(2.0% of reading + 2 digits) |
| Tension CC | 48V DC |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × A23G (12V) battery |
| Certifications | CE |
| Dimensions | 159 × 25mm (6.25 × 1") |
| Garantie | 2 years |
| Poids | 42g (1.5 oz) |
Resources & Support
User Manual
Manuel d’utilisation de la Extech AUT30 AUT30M
Certification
Extech AUT30 Declaration of Conformity
Datasheet
Extech AUTxx Datasheet
User Manual
Extech AUT30 AUT30M User Manual GB
